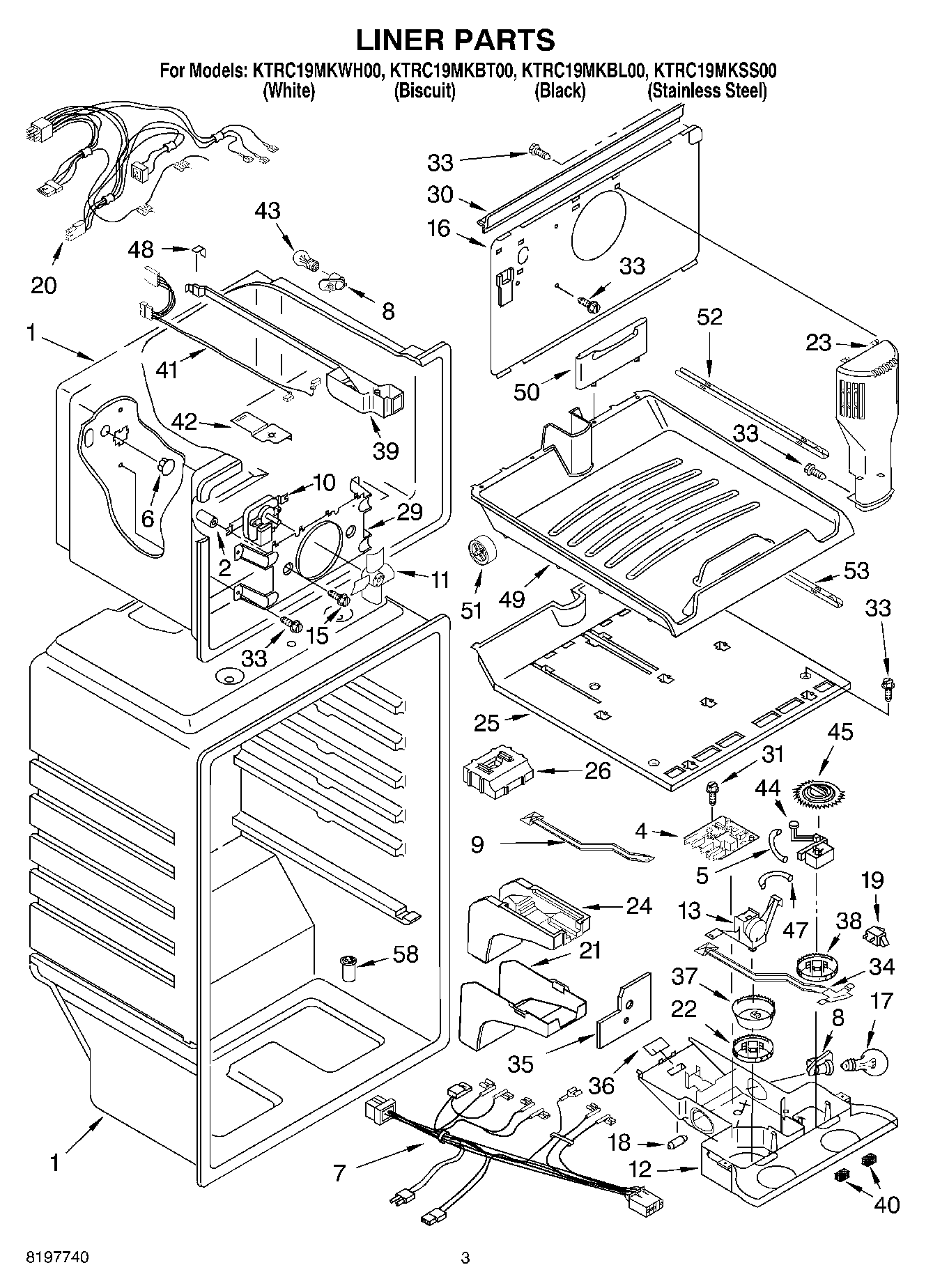

KTRC19MKBT00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assembly (Includes Items 5, 18, & 36)
15	Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	WP98129 Whirlpool Screw
33	WP489478 Whirlpool Refrigerator Screw
34	Damper, Air (Slide)
35	Shield, heat
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2184574 Whirlpool Refrigerator Gear Wheel
38	Knob, Damper
39	Housing Base
40	Air Seal, Foam
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Control, Freezer
45	Gear Wheel, Freezer Control
47	Thermostat Tube Barrier
48	Gasket, Rear
49	Pullout, Freezer Floor (Includes Item 56)
50	REAR FENCE PULL-OUT FREEZER FLOOR
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
58	WP2210509 Whirlpool Refrigerator Tub Valve
