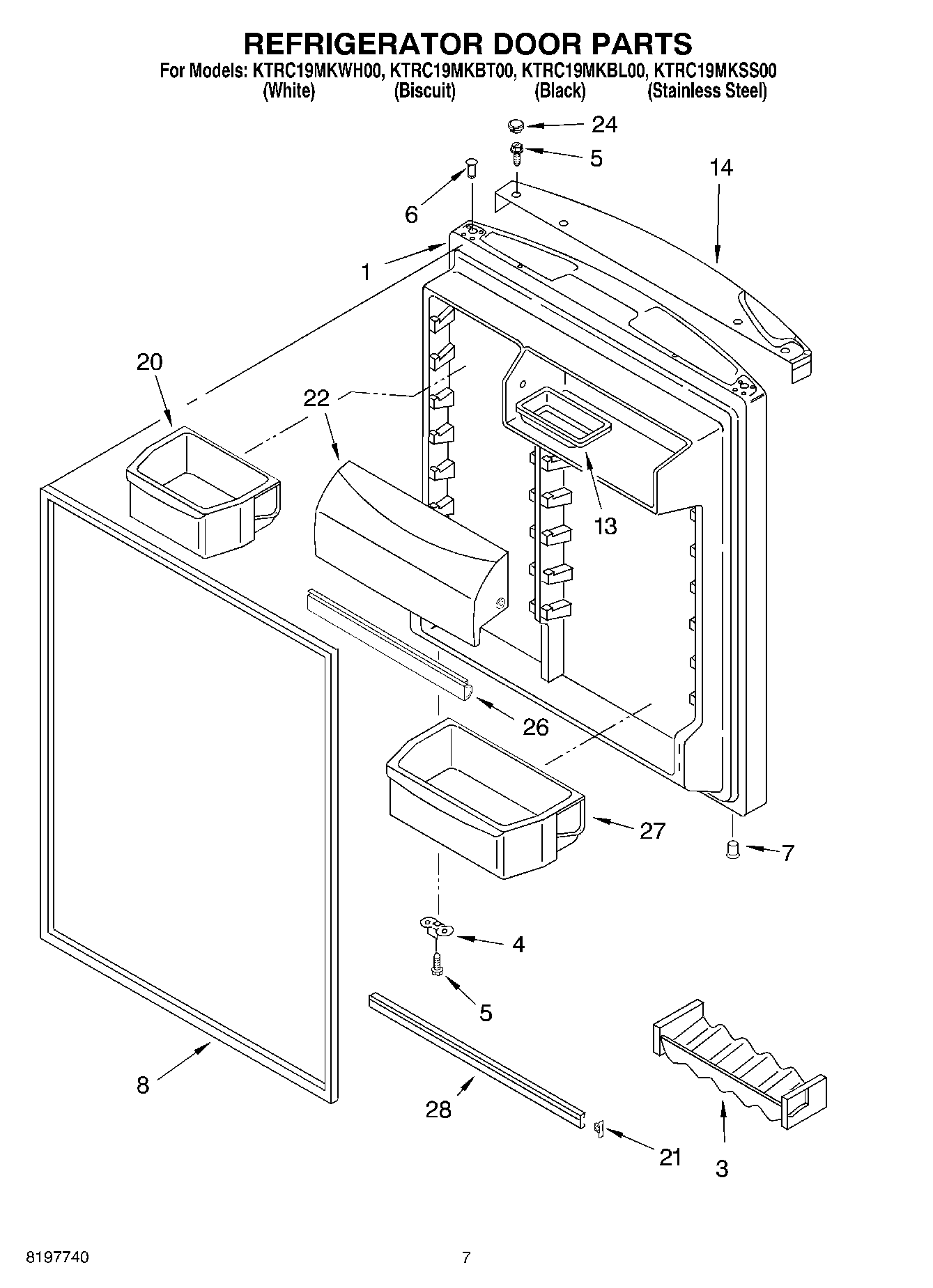

KTRC19MKSS00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Illus. 6 & 8) (White)
1	Refrigerator Door (Includes Illus. 6 & 8) (Biscuit)
1	Refrigerator Door (Includes Illus. 6 & 8) (Black)
1	Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
3	Beverage Holder
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2177305 Whirlpool Refrigerator Door FIP Gasket
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
13	Butter Tray
14	Handle, Endcap (Biscuit)
14	Handle, Endcap (White)
14	Handle (Black)
20	Bin, Door Shelf (3)
21	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22	Door, Compartment
24	Hole Plug, Handle (Biscuit)
24	HOLE PLUG, ENDCAP (WHITE)
24	HOLE PLUG, ENDCAP (BLACK)
26	Gasket, Door Compartment
27	Bin, Door Shelf
28	WPW10421484 Whirlpool Refrigerator Door Trim
