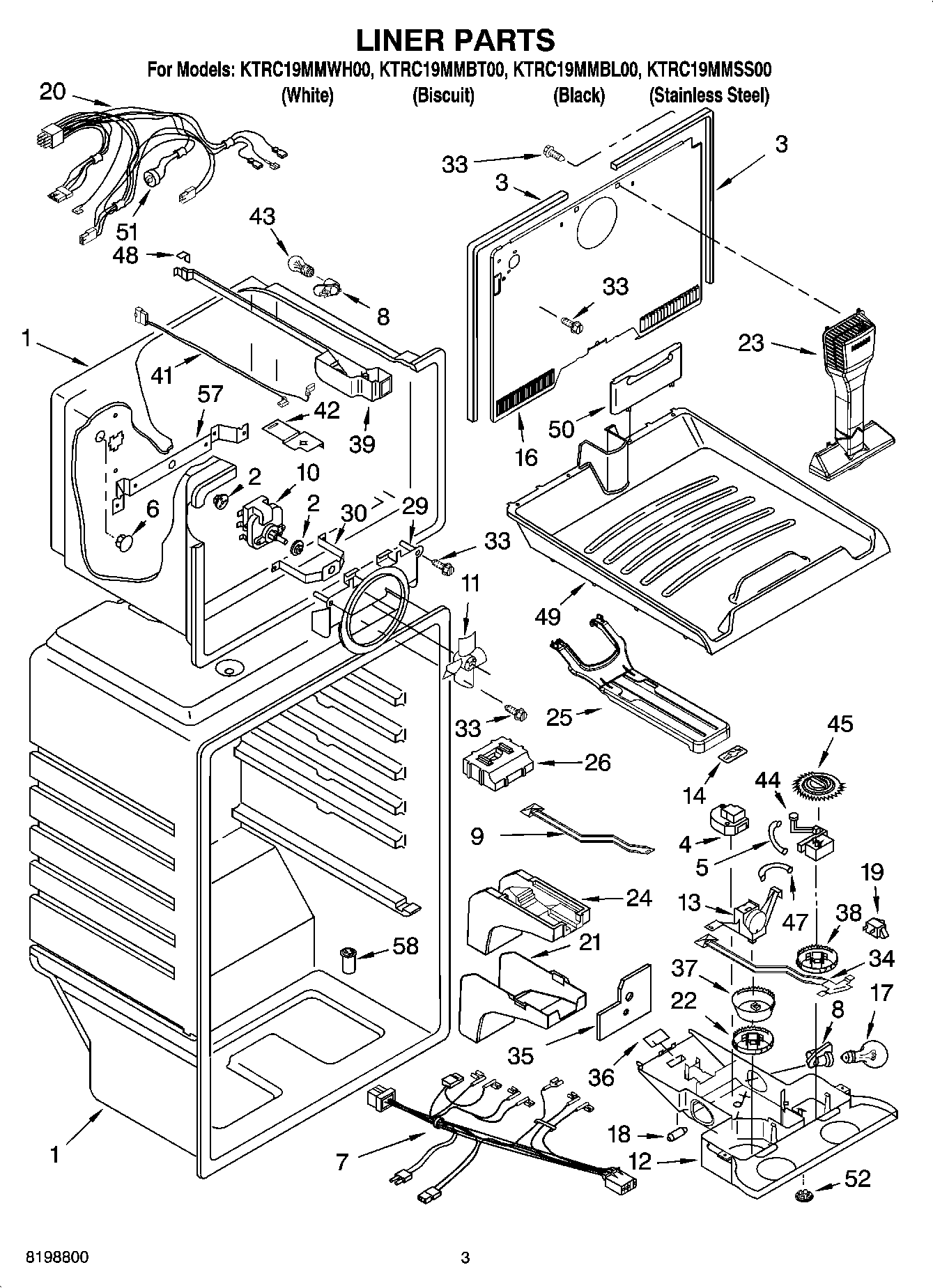

KTRC19MMSS00 02 – LINER PARTS

KTRC19MMSS00 02 – LINER PARTS

Written by

in

KTRC19MMSS00 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Defrost Timer
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assembly (Includes Items 5, 18, & 36)
14Clip, Defrost Timer
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment
21Cover, Air Diffuser
22Knob, Thermostat
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Retainer, Freezer Floor
26Air Diffuser, Top
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
33WP489478 Whirlpool Refrigerator Screw
34Damper, Air (Slide)
35Shield, heat
36WP2205079 Whirlpool Refrigerator Seal
37WP2184574 Whirlpool Refrigerator Gear Wheel
38Knob, Damper
39Housing Base
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44Control, Freezer
45Gear Wheel, Freezer Control
47Thermostat Tube Barrier
48Gasket, Rear
49Pullout, Freezer Floor
50REAR FENCE PULL-OUT FREEZER FLOOR
51WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
52940014 Whirlpool Refrigerator Primary Button Plug
57Bracket, Evap. Fan, Rear
58WP2210509 Whirlpool Refrigerator Tub Valve
