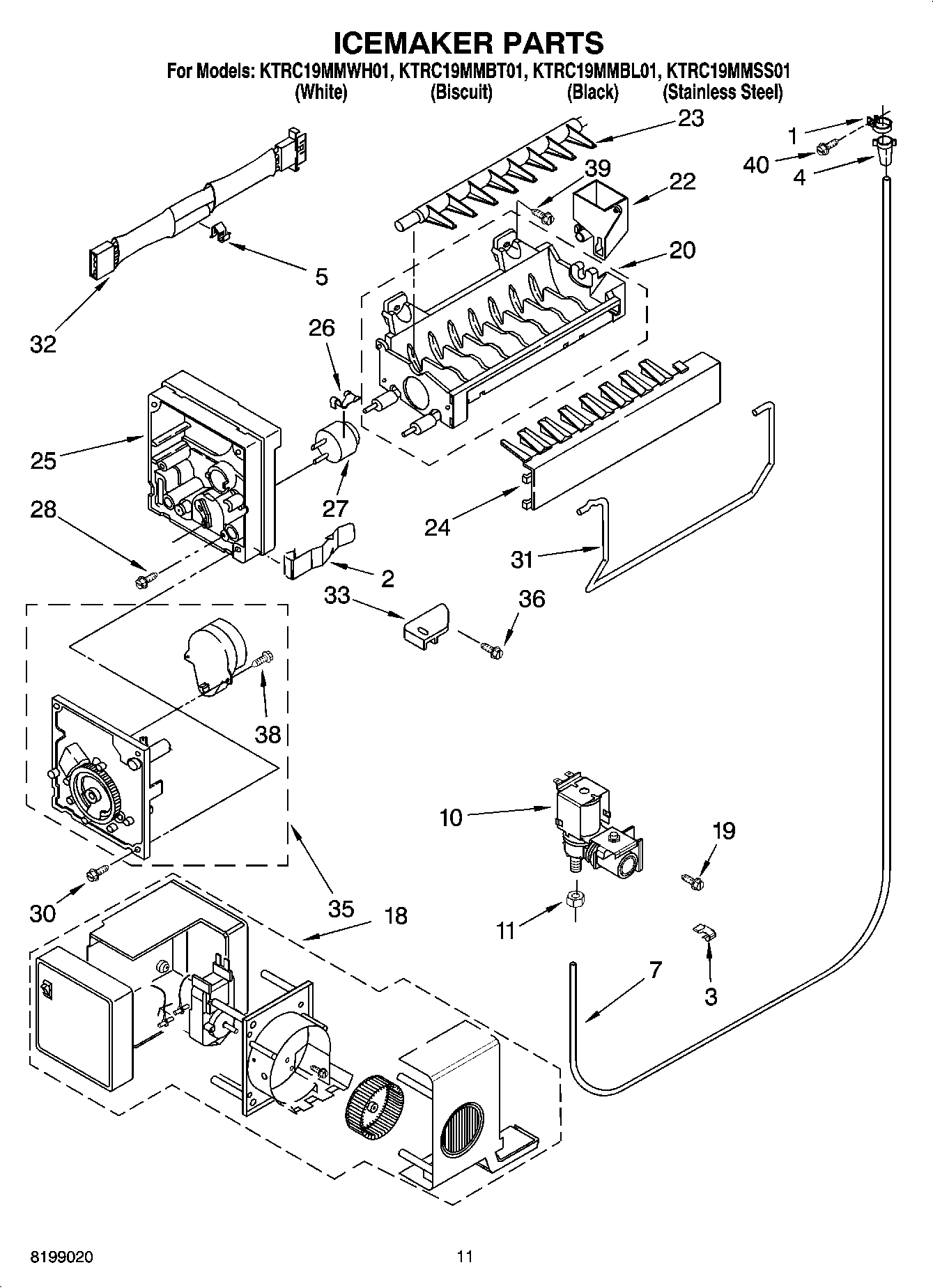

KTRC19MMSS01 06 – ICEMAKER PARTSadmin2025-04-26T13:03:23+00:00KTRC19MMSS01 06 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp2Clip, Icemaker32210495 Whirlpool Refrigerator Clip44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip7W10823511 Whirlpool Refrigerator Water Tube10VALVE-INLT11WP627018 Whirlpool Refrigerator Nut18Max-Ice Assembly19WP489464 Whirlpool Refrigerator Screw20WPW10190929 Whirlpool Refrigerator Ice Maker Mold22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31WP627792 Whirlpool Refrigerator Shut Off Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly36WP489478 Whirlpool Refrigerator Screw38489136 Whirlpool Refrigerator Screw39WP488163 Whirlpool Refrigerator Screw40WP488787 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
