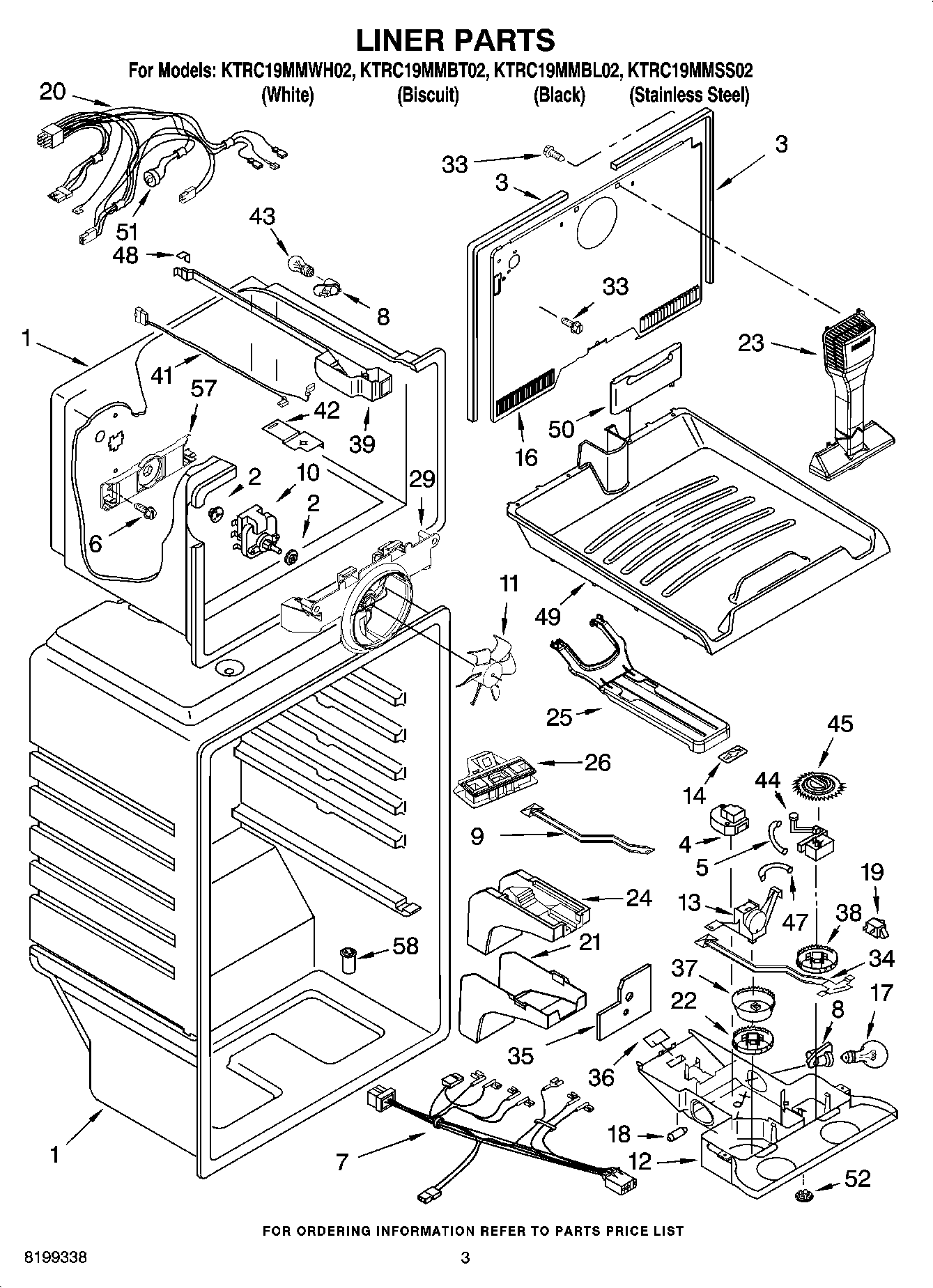

KTRC19MMSS02 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP488163 Whirlpool Refrigerator Screw
7	2310174 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	THERMOSTAT
14	Clip, Defrost Timer
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly Freezer Compt. (Includes Illus. 25)
21	Cover, Air Diffuser
22	Knob, Thermostat
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Retainer, Freezer Floor
26	Air Separator Assembly
29	BRACKET, FAN MOTOR
33	WP489478 Whirlpool Refrigerator Screw
34	Damper, Air (Slide)
35	Shield, heat
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2184574 Whirlpool Refrigerator Gear Wheel
38	Knob, Damper
39	Housing Base
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Control, Freezer
45	Gear Wheel, Freezer Control
47	Thermostat Tube Barrier
48	Gasket, Rear
49	Pullout, Freezer Floor
50	REAR FENCE PULL-OUT FREEZER FLOOR
51	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
52	940014 Whirlpool Refrigerator Primary Button Plug
57	2254454 Whirlpool Refrigerator Bracket
58	WP2210509 Whirlpool Refrigerator Tub Valve
