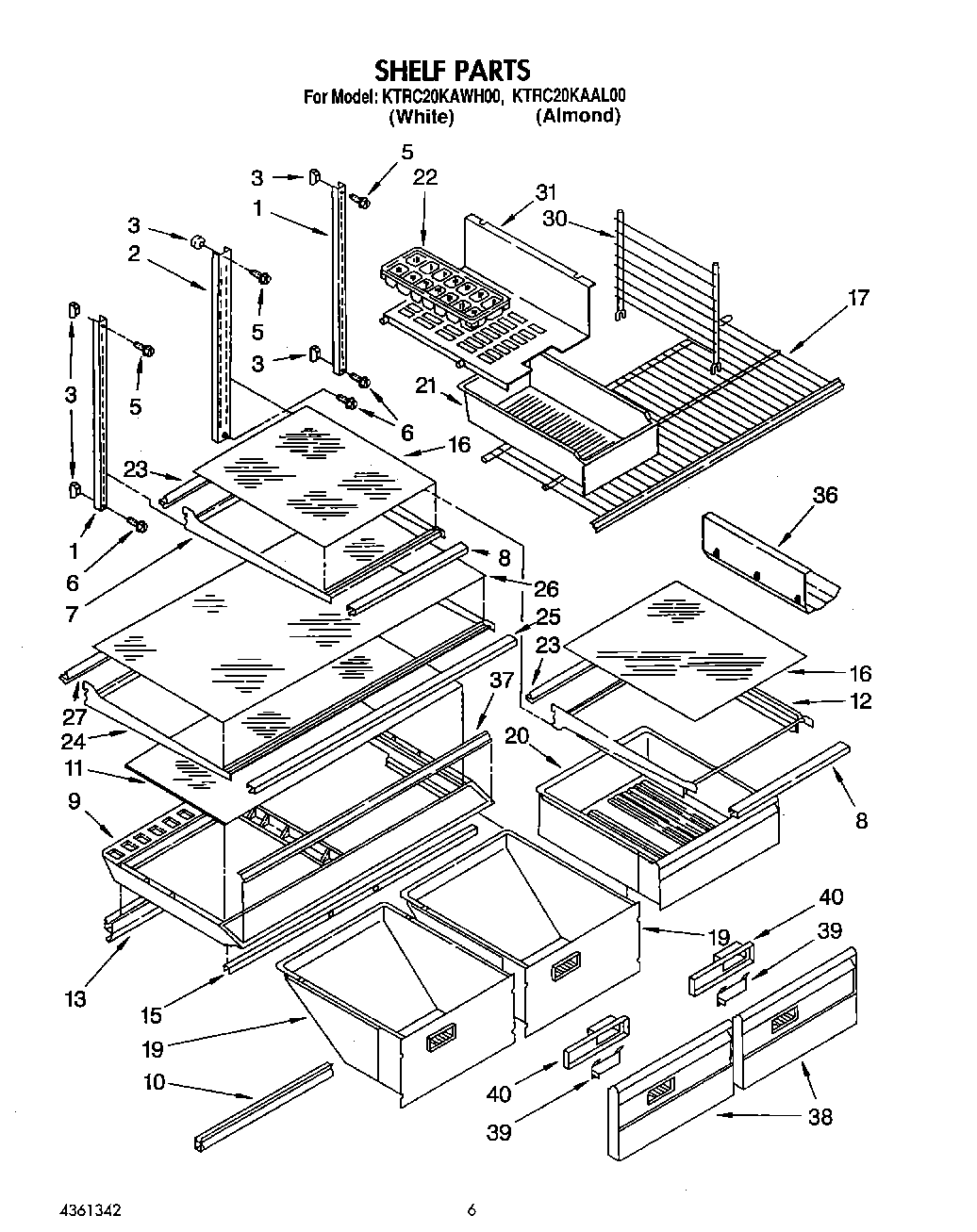

KTRC20KAWH00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT2154861
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT1126426
	WPL LIT4361342
	WPL LIT2168627
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	WP2151749 Whirlpool Refrigerator Cover
10	Gasket-Front
11	Glass, Pan Cover
12	Pan Shelf, Cantilever
13	Gasket, Rear
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Shelf, Full Cantilever
25	Gasket, Front Cantilever
26	Glass, Full Shelf
27	Retainer, Shelf
30	Divider
31	Shelf, Ice Tray
36	Wine & Egg Rack
37	Trim, Crisper Cover
38	Front, Crisper
39	Slide, Humidity Control
40	212643 Whirlpool Refrigerator Permagum Sealer
40	350930 Whirlpool White Spray Paint
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	Leveler (Thinner)
40	350956 Whirlpool Spray Assembly
40	WP72107 Whirlpool Touchup
40	WPL 799833
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	WP542638 Whirlpool Refrigerator Grease
40	Almond (Uncut)
40	WP505587 Whirlpool Refrigerator Sealer
40	WP503695 Whirlpool Refrigerator Sealer
40	876370 Whirlpool Refrigerator Insulation
40	833938 Whirlpool Refrigerator Terminal
40	TAPE, VINYL (3/4 X 108“)
40	606755 Whirlpool Refrigerator Bag
40	511873 Whirlpool Refrigerator Paint
40	Housing, Humidity Control
40	72032 Whirlpool Touch Up Paint Black
40	350942 Whirlpool Spray Paint
40	285006 Whirlpool Spray
40	WPL 876029
