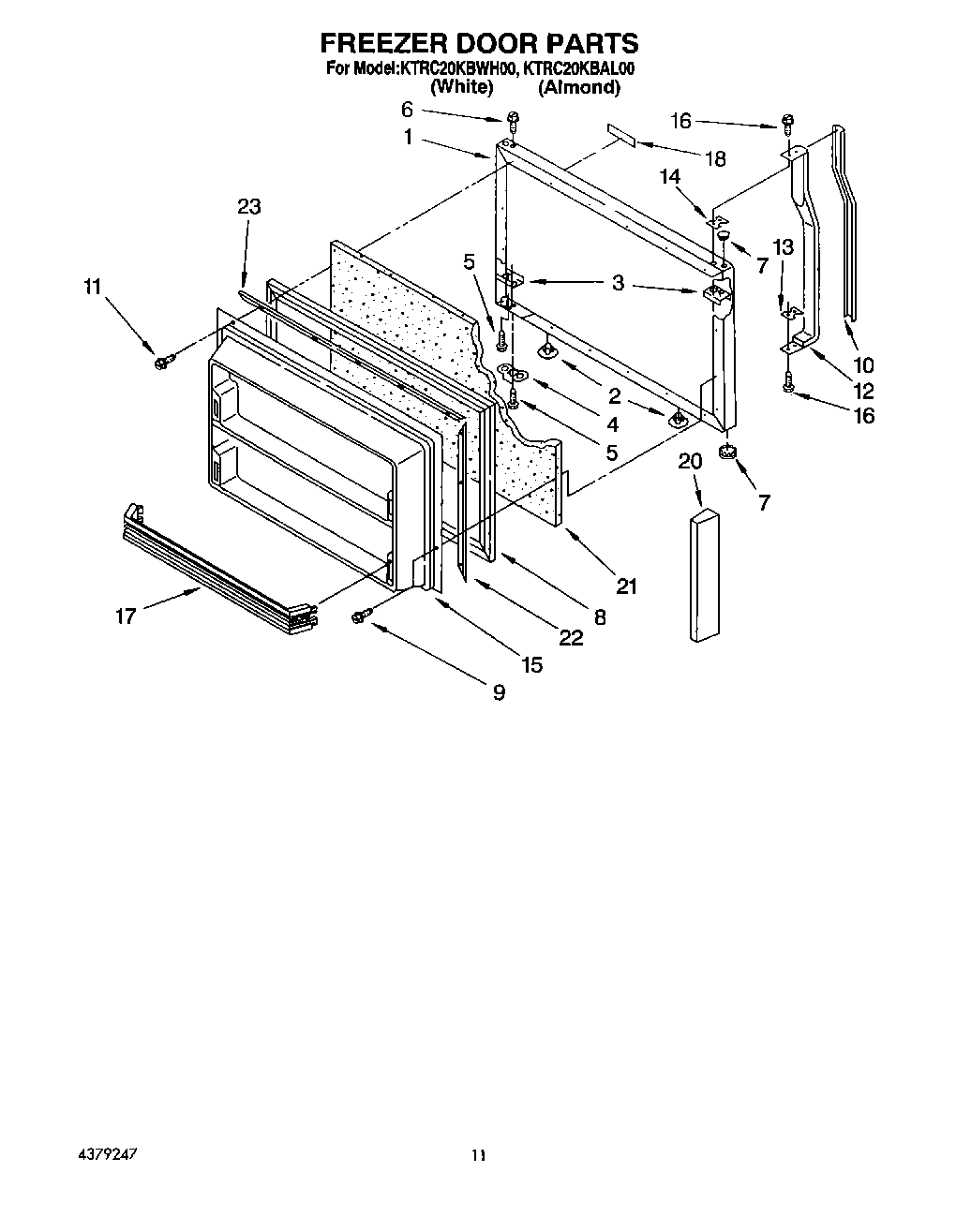

KTRC20KBAL00 07 – FREEZER DOOR

Products

Position	Product
1	Panel, Freezer Door (Also Order Item 21) (Almond)
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188460A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Insert, Handle (Almond)
10	Insert, Handle (White)
11	WP488729 Whirlpool Refrigerator Door Screw
12	Handle
13	Shim, Bottom
14	Spacer, Handle
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Shelf Bin, Fixed
18	Nameplate (White Model)
18	Nameplate (Almond Model)
20	Dike, Door (2)
21	WPL 876029
22	Retainer, Gasket
23	Gasket Retainer, Top & Bottom
