KTRC20KBWH00 05 – UNIT

KTRC20KBWH00 05 – UNIT

Written by

in

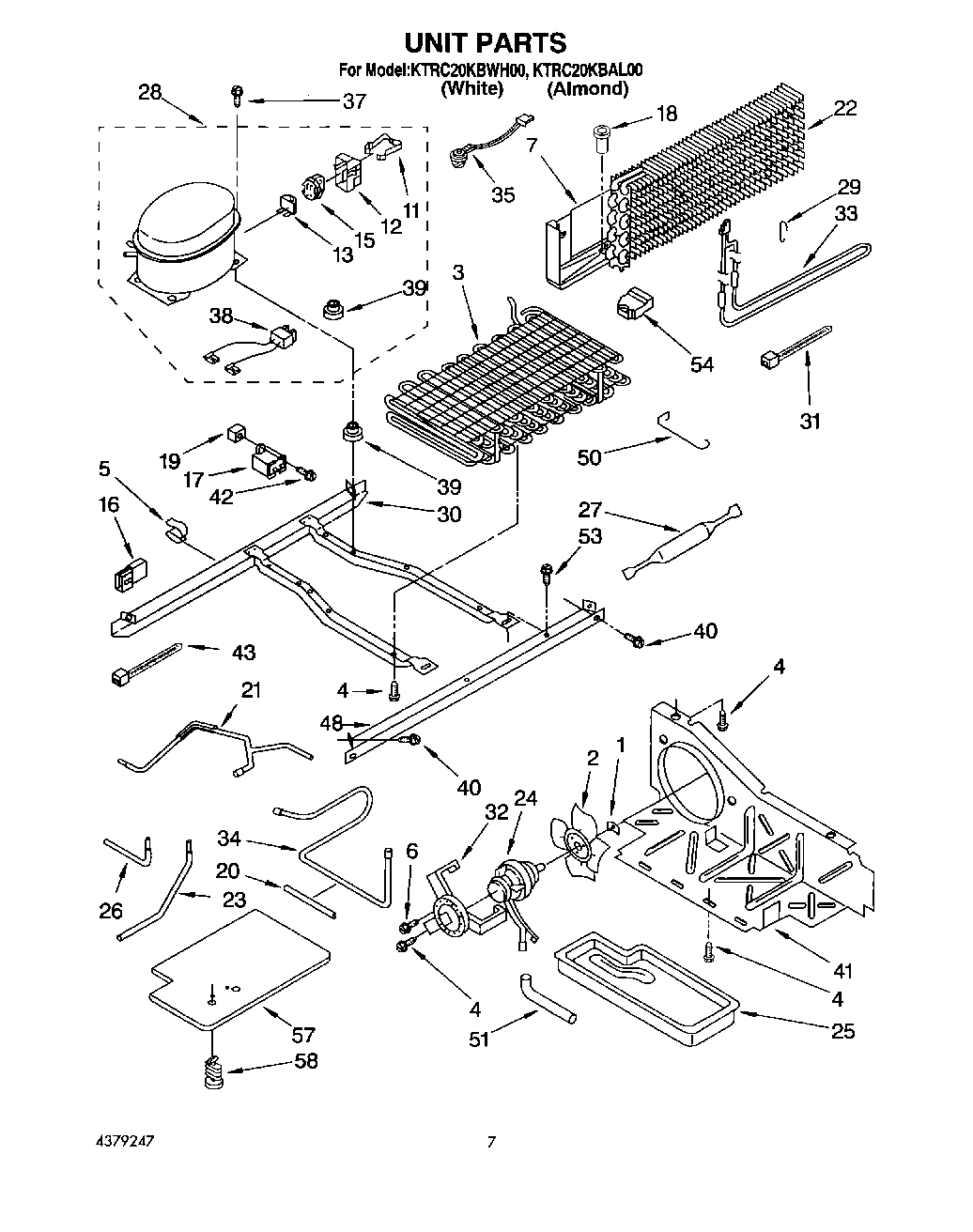

KTRC20KBWH00 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
11Strap
12Cover
13OVERLOAD
15Relay (See Overload)
16Housing Plug
17Running Capacitor (Service)
18Drain Fitting
19Screw Grommet
20SLEEVE
21Tube, Discharge
22Evaporator
23Tube, Condenser To Heat Loop
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
262154109 Whirlpool Refrigerator Tube
27W10843121 Whirlpool Refrigerator Tube
28W10439652 Whirlpool Refrigerator Compressor
29Support, Heater
30Unit Mounting Frame
31WPW10339879 Whirlpool Wire Tie
32Fan, Motor Bracket
33Heater, Defrost
34Tube, Suction
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air, Baffle
42W11693756 Whirlpool Screw Assembly
48Unit Mounting Rail
501105612 Whirlpool Fan Guard
51Drain Extension
53Screw, 1/4-28 x 1/2 (2)
54Support-Evaporator (L.S.)
54Support (R.S.)
57Cover-Unit Btm.
58VALVE, ACCESS (1/2“)
58489396 Whirlpool Refrigerator Clip
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (5/8“)
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
