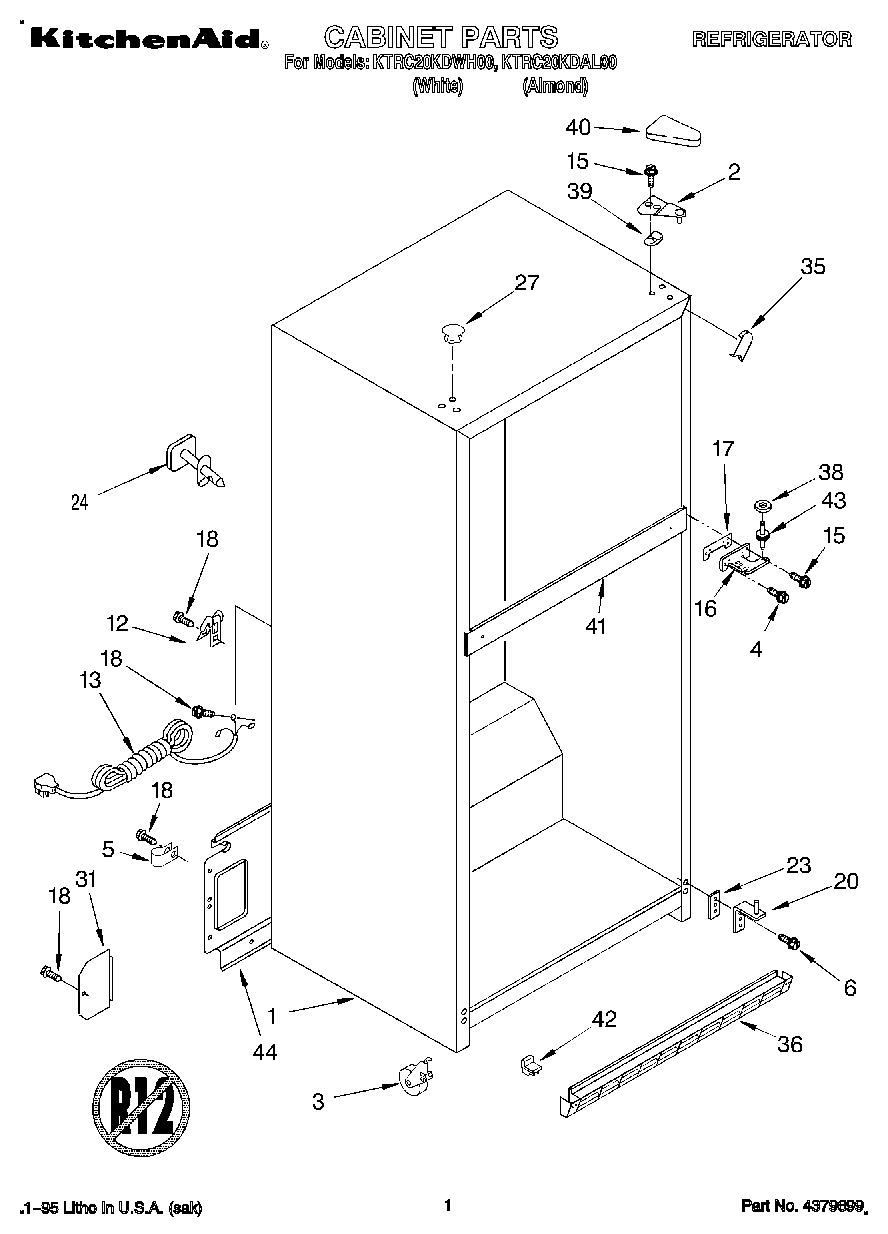

KTRC20KDAL00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	Cord, Service
15	WP999367 Whirlpool Refrigerator Screw
16	WP2254618 Whirlpool Center Door Hinge
17	Shim, Hinge Center
18	WP489463 Whirlpool Refrigerator Screw
20	Hinge, Butt
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
31	Cover, Water Valve
35	Corner Filler (2) (Almond)
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (White)
36	Grille (Almond)
38	WP487576 Whirlpool Washer
39	Shim, Hinge Top
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
42	Corner Filler, Grille (Almond)
42	Corner Filler, Grille (White)
44	Cover, Unit
