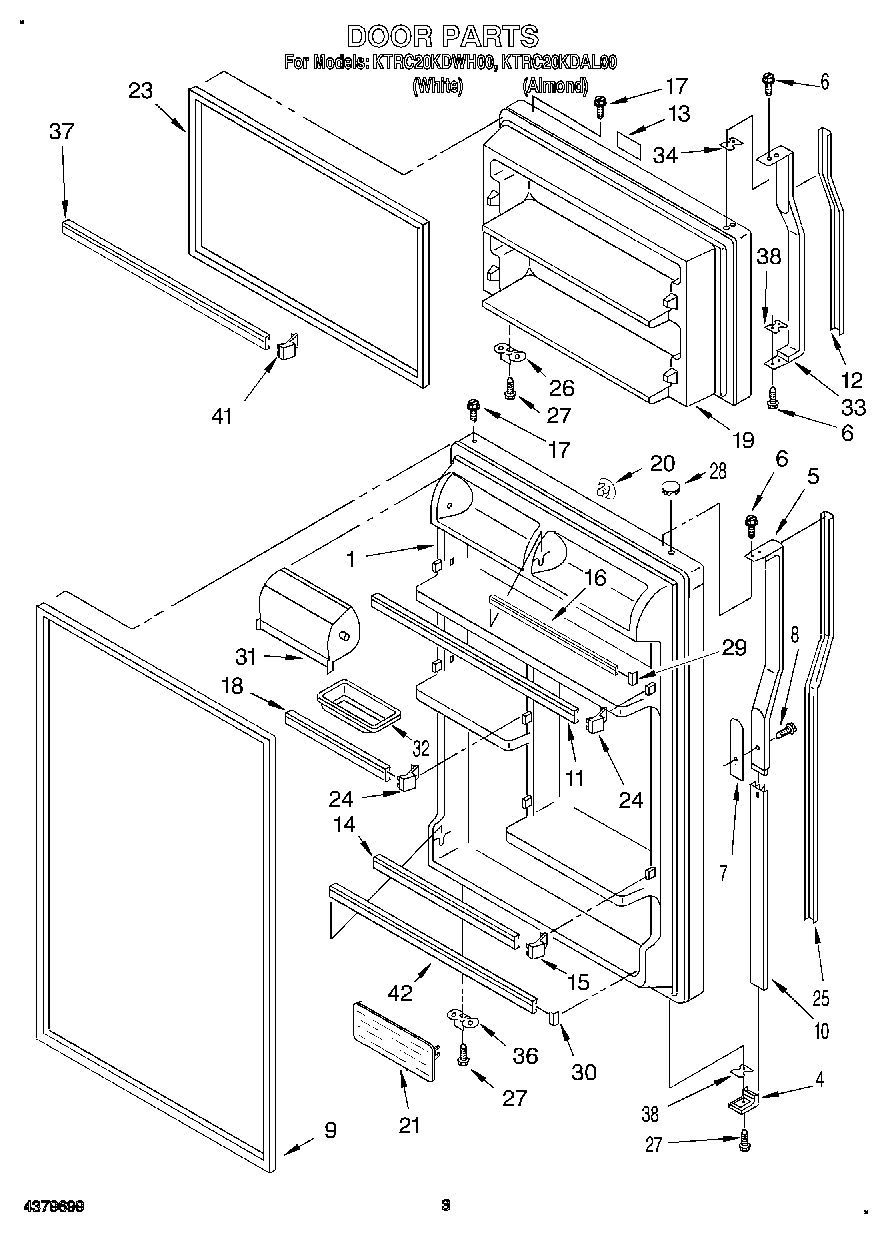

KTRC20KDWH00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Almond)
1	Refrigerator Door Panel (White)
4	Handle End
5	Handle
6	WP488920 Whirlpool Refrigerator Screw
7	Spacer, Handle
8	WP488729 Whirlpool Refrigerator Door Screw
9	Door Gasket, Magnetic
10	Retainer, Insert
11	Trim, Door Shelf
12	Insert, Handle (White)
12	Insert, Handle (Almond)
13	Nameplate (Almond Model)
13	Nameplate (White Model)
14	Trim, Door Shelf
15	Plug-Trim
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	Trim, Door
19	Freezer Door (Includes No.8) (Almond)
19	Freezer Door (Includes No.8) (White)
20	Hole Plug, Handle (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2188236 Whirlpool Refrigerator Shelf Door
23	Door Gasket, Magnetic
24	WP2195915 Whirlpool Door Shelf Support
25	Insert, Handle (Almond)
25	Insert, Handle (White)
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	Hole Plug (Almond)
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218118 Whirlpool Refrigerator Door Compressor
32	Butter, Tray
33	Handle
34	Spacer, Handle
36	Bracket, Door Stop
37	Trim-Door (2)
38	Shim, Bottom
41	ENDCAP
42	Trim, Door
