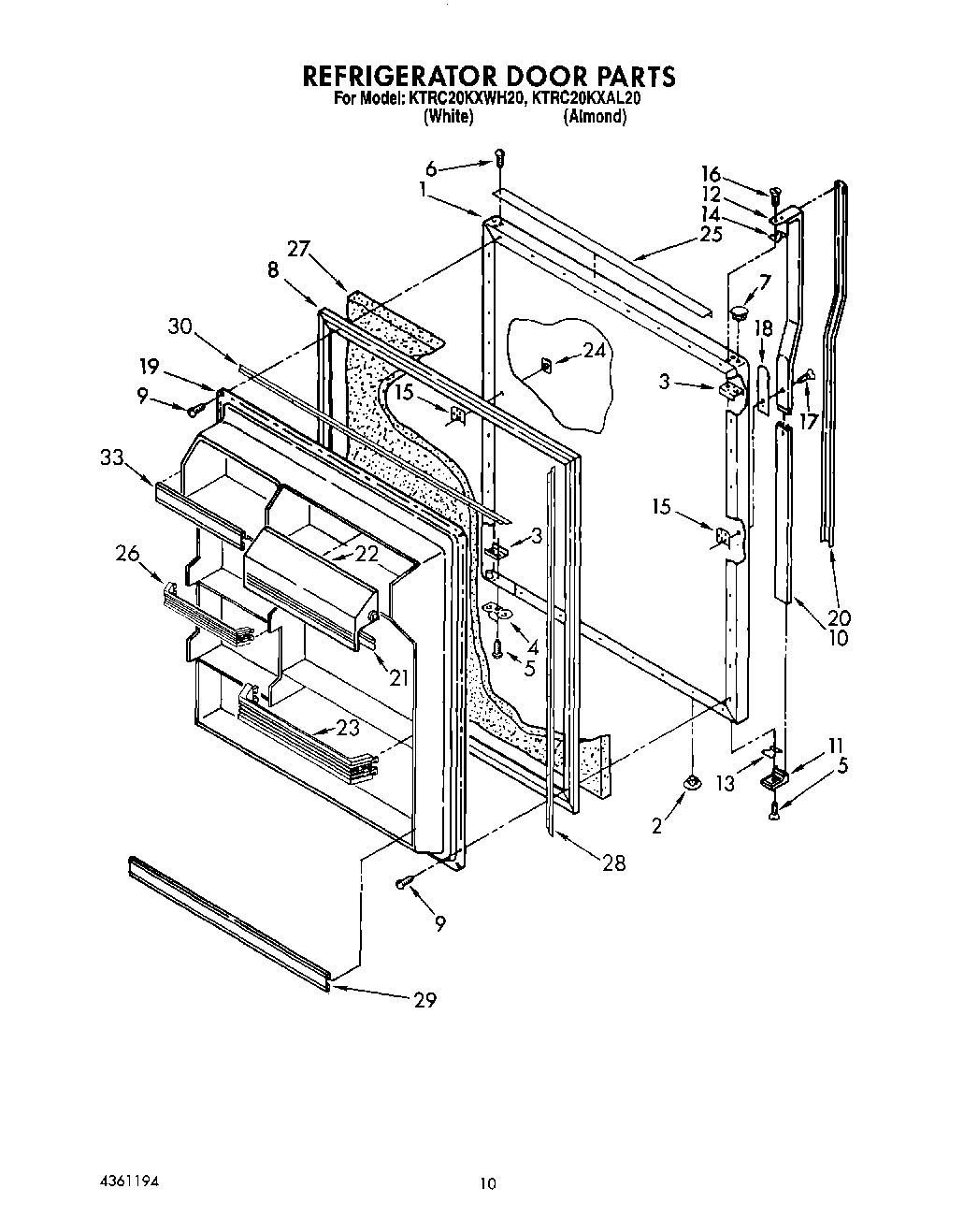

KTRC20KXAL20 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, End Cap
14	Spacer
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (Almond)
20	Insert, Handle (White)
21	Gasket, Utility Door
22	Compartment Door,
23	Shelf Bin (4)
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
25	Trim, Door
26	Shelf Bin (4)
27	WPL 876029
28	Gasket, Retainer
29	Trim, Door Shelf
30	Gasket Retainer, Top & Bottom
33	Trim, Door Shelf
