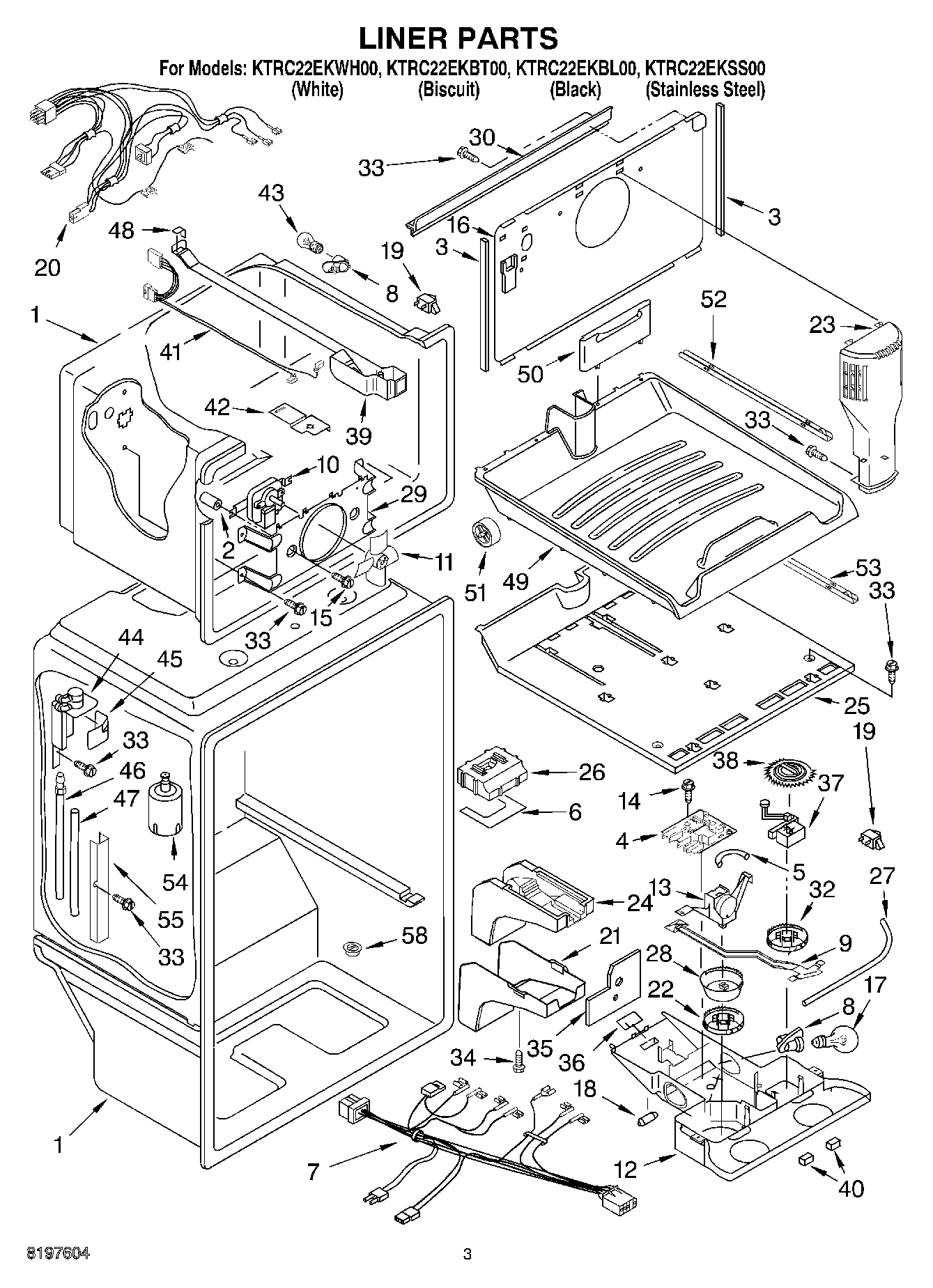

KTRC22EKSS00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	Seal, Air Diffuser
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air (Slide)
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assembly (Includes Items 5, 18, & 36)
14	WP98129 Whirlpool Screw
15	Screw
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	AIR SEPARATOR ASSEMBLY
27	Thermostat Tube Barrier
28	WP2184574 Whirlpool Refrigerator Gear Wheel
29	Bracket, Fan Motor
32	Knob, Damper
33	WP489478 Whirlpool Refrigerator Screw
34	WP489442 Whirlpool Refrigerator Screw
35	Shield, heat
36	WP2205079 Whirlpool Refrigerator Seal
37	Control, Freezer
38	Gear Wheel, Freezer Control
39	Housing Base
40	Air Seal, Foam
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Bracket Assembly, Water Filter
45	Cover, Filter
46	W10823511 Whirlpool Refrigerator Water Tube
47	Tube, Filter Inlet
48	Gasket, Rear
49	Pullout, Freezer Floor
50	REAR FENCE PULL-OUT FREEZER FLOOR
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
54	WPL 2213384
55	Cover, Tubing
58	WP2210509 Whirlpool Refrigerator Tub Valve
