KTRC22EKSS01 07 – FREEZER DOOR

KTRC22EKSS01 07 – FREEZER DOOR

Written by

in

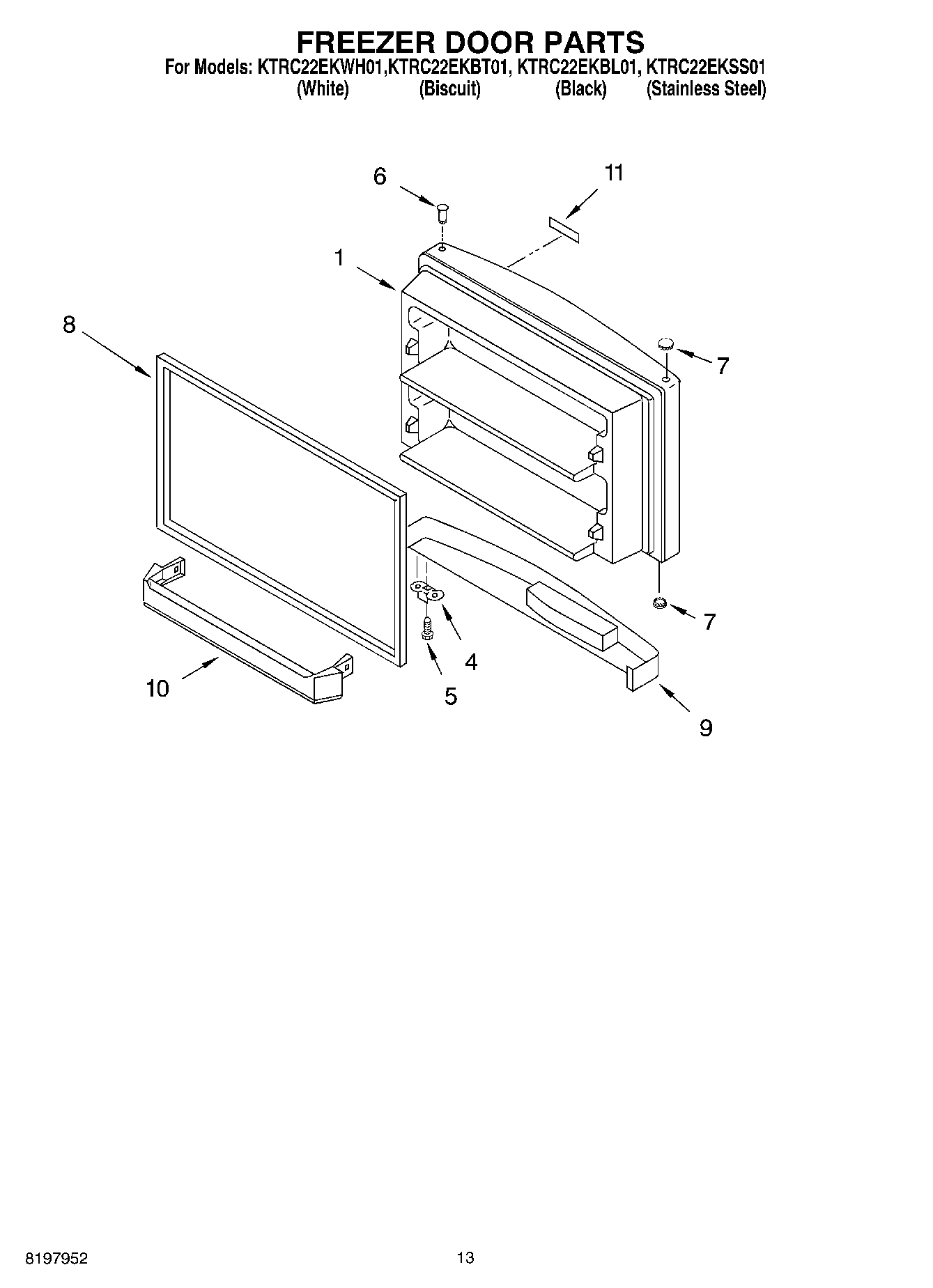

KTRC22EKSS01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes No.8& No.12) (Biscuit)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
9Handle (White)
9Handle (Biscuit)
9Handle (Black)
10Trim, Door
11Nameplate (Biscuit)
11Nameplate (Black)
11Nameplate (White)
