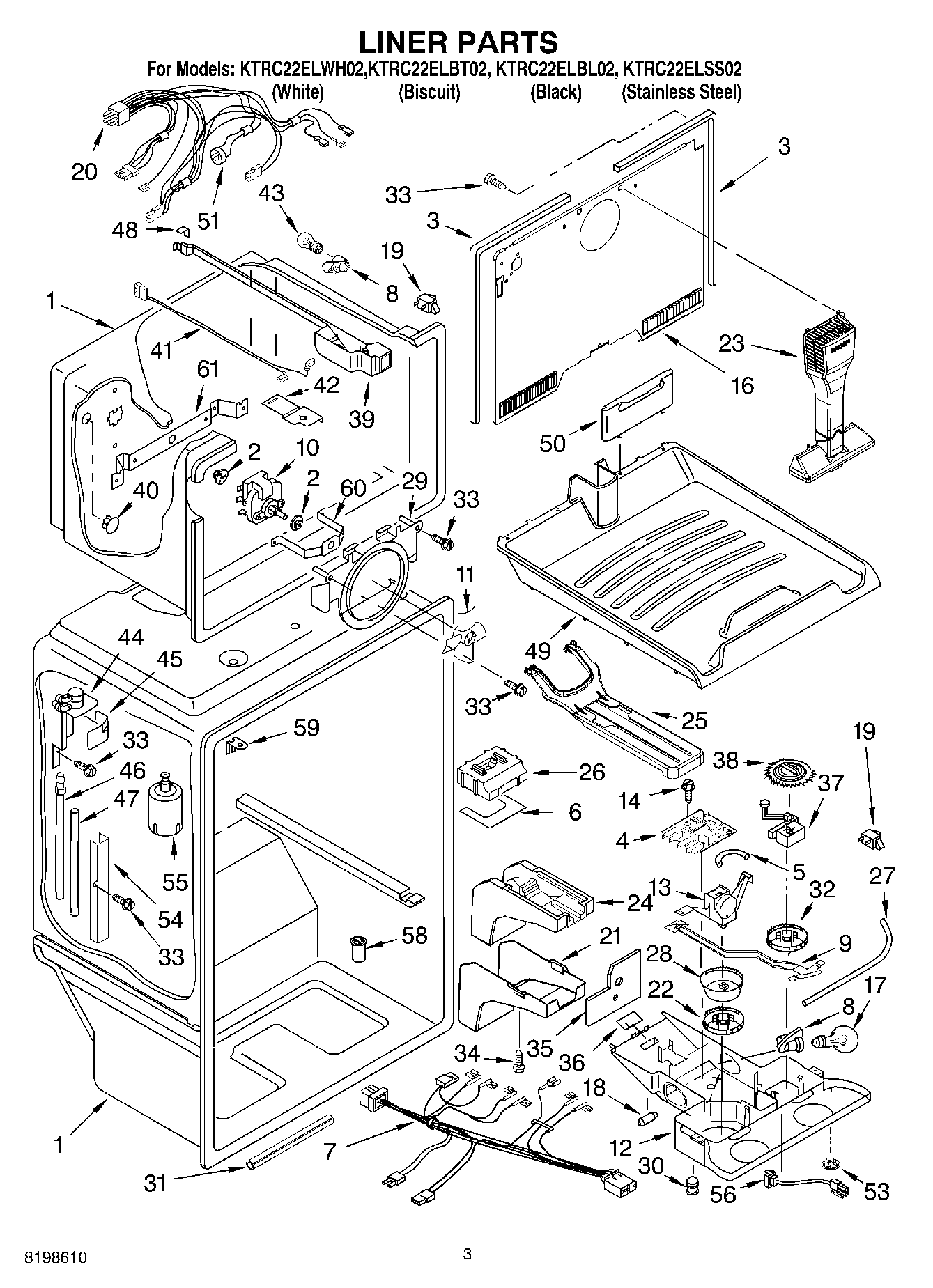

KTRC22ELBL02 02 – LINER PARTS

KTRC22ELBL02 02 – LINER PARTS

Written by

in

KTRC22ELBL02 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304093 Whirlpool Refrigerator Electronic Control Board
5WP2196003 Whirlpool Refrigerator Bar Riser
6Seal, Air Diffuser
7Wire Assembly Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air (Slide)
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assembly (Includes Item 5)
14WP98129 Whirlpool Screw
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly Fzr. Compartment (Includes Item 25)
21Cover, Air Diffuser
22Knob, Thermostat
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Retainer, Freezer Floor
26AIR SEPARATOR ASSEMBLY
27Thermostat Tube Barrier
28WP2184574 Whirlpool Refrigerator Gear Wheel
29Bracket, Fan Motor
30Lens-LED
31Insulation, Water Tube
32Knob, Damper
33WP489478 Whirlpool Refrigerator Screw
34WP489442 Whirlpool Refrigerator Screw
35Shield, heat
36WP2205079 Whirlpool Refrigerator Seal
37Control, Freezer
38Gear Wheel, Freezer Control
39Housing Base
40WP941839 Whirlpool Refrigerator Button Plug
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44Bracket Assembly, Water Filter
45Cover, Filter
46W10823511 Whirlpool Refrigerator Water Tube
47Tube, Filter Inlet
48Gasket, Rear
49Pullout, Freezer Floor
50REAR FENCE PULL-OUT FREEZER FLOOR
51WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
53940014 Whirlpool Refrigerator Primary Button Plug
54Cover, Tubing
55WPL 2213384
56W10853646 Whirlpool Indicator Light
58WP2210509 Whirlpool Refrigerator Tub Valve
59Clip, Retainer
60Bracket, Evap. Fan, Front
61Bracket, Evap. Fan, Rear
