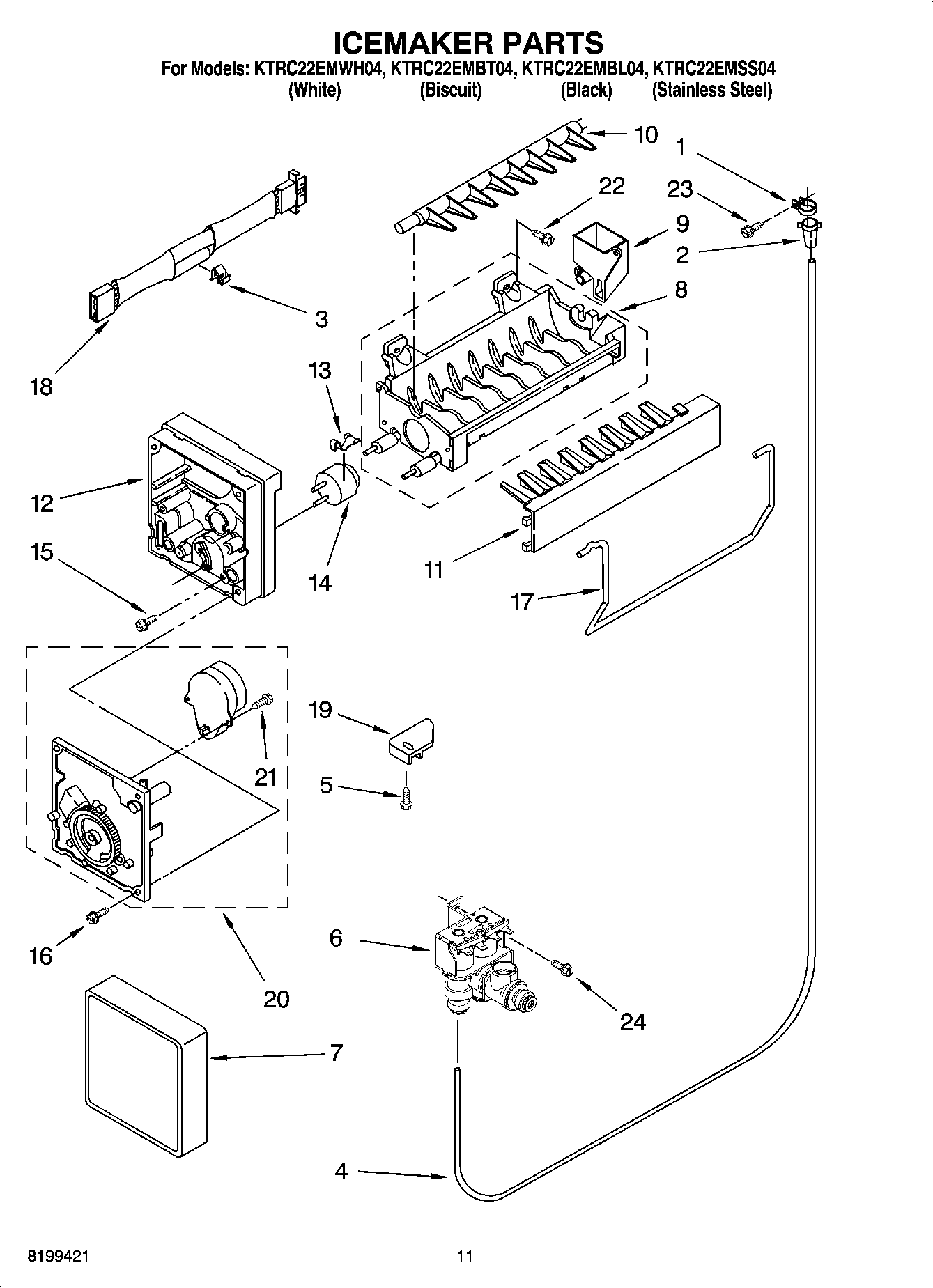

KTRC22EMBL04 06 – ICEMAKER PARTSadmin2025-04-26T13:03:55+00:00KTRC22EMBL04 06 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6WP2188808 Whirlpool Refrigerator Inlet Valve7WPW10289690 Whirlpool Ice Maker Cover8WPW10190929 Whirlpool Refrigerator Ice Maker Mold9WP628356 Whirlpool Refrigerator Fill Cup10WP627843 Whirlpool Refrigerator Ejector Arm11WP2182124 Whirlpool Refrigerator Stripper Arm12WP2195914 Whirlpool Refrigerator Ice Maker Housing13WP2315522 Whirlpool Refrigerator Clip14WP627985 Whirlpool Icemaker Cycling Thermostat158533917 Whirlpool Refrigerator Screw16WP681249 Whirlpool Screw Assembly17WP627792 Whirlpool Refrigerator Shut Off Arm18WP2187464 Whirlpool Refrigerator Wire Harness19W11500948 Whirlpool Refrigerator Bracket20W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly21489136 Whirlpool Refrigerator Screw22WP488163 Whirlpool Refrigerator Screw23WP488787 Whirlpool Refrigerator Screw24WP489442 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
