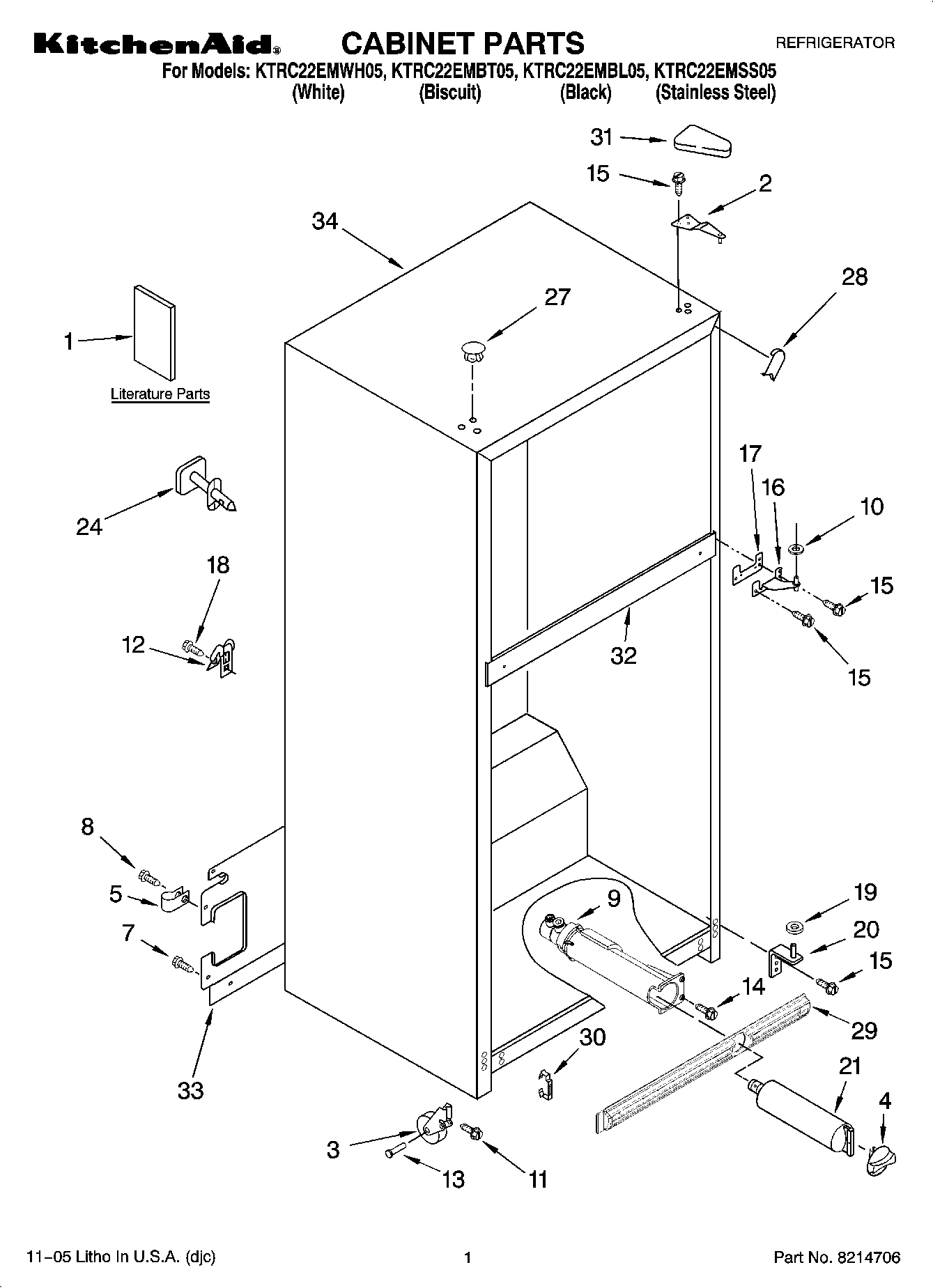

KTRC22EMBL05 01 – CABINET PARTS

KTRC22EMBL05 01 – CABINET PARTS

Written by

in

KTRC22EMBL05 01 – CABINET PARTS

Products

PositionProduct
1Customer Instruct Sheet, Wtr Filter
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
1Customer Instructions
1Energy Label
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP2186494W Whirlpool Water Filter Cap
4WP2186494B Whirlpool Refrigerator Filter Cap
4WP2186494T Whirlpool Water Filter Cap
5WP488366 Whirlpool Refrigerator Clamp
7WP489427 Whirlpool Refrigerator Screw
8WP488787 Whirlpool Refrigerator Screw
9WP2225521 Whirlpool Water Filter Housing
10WP489467 Whirlpool Hinge Shim
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
14SCREW
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP487576 Whirlpool Washer
20WP2254473 Whirlpool Refrigerator Door Hinge
21EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
24Fitting, Water Tube (Not Serviced)
27WP2151652 Whirlpool Refrigerator Button Plug
27WP2183998 Whirlpool Refrigerator Button Plug
27Hole Plug (6) (Biscuit)
28W10283958 Whirlpool Refrigerator Filler
28W11252732 Whirlpool Refrigerator Filler
28WPW10283959 Whirlpool Refrigerator Filler
29Grille (Includes Illus. 27) (White)
29Grille (Includes Illus. 39) (Biscuit)
29Grille (Includes Illus. 27) (Black)
30CLIP, GRILLE
31WP2213363 Whirlpool Refrigerator Cover
31WP2213360 Whirlpool Refrigerator Cover
312213364 Whirlpool Refrigerator Cover
32Rail Center (Not Serviced)
33Cover, Unit
34Cabinet (Not A Serviceable Part)
