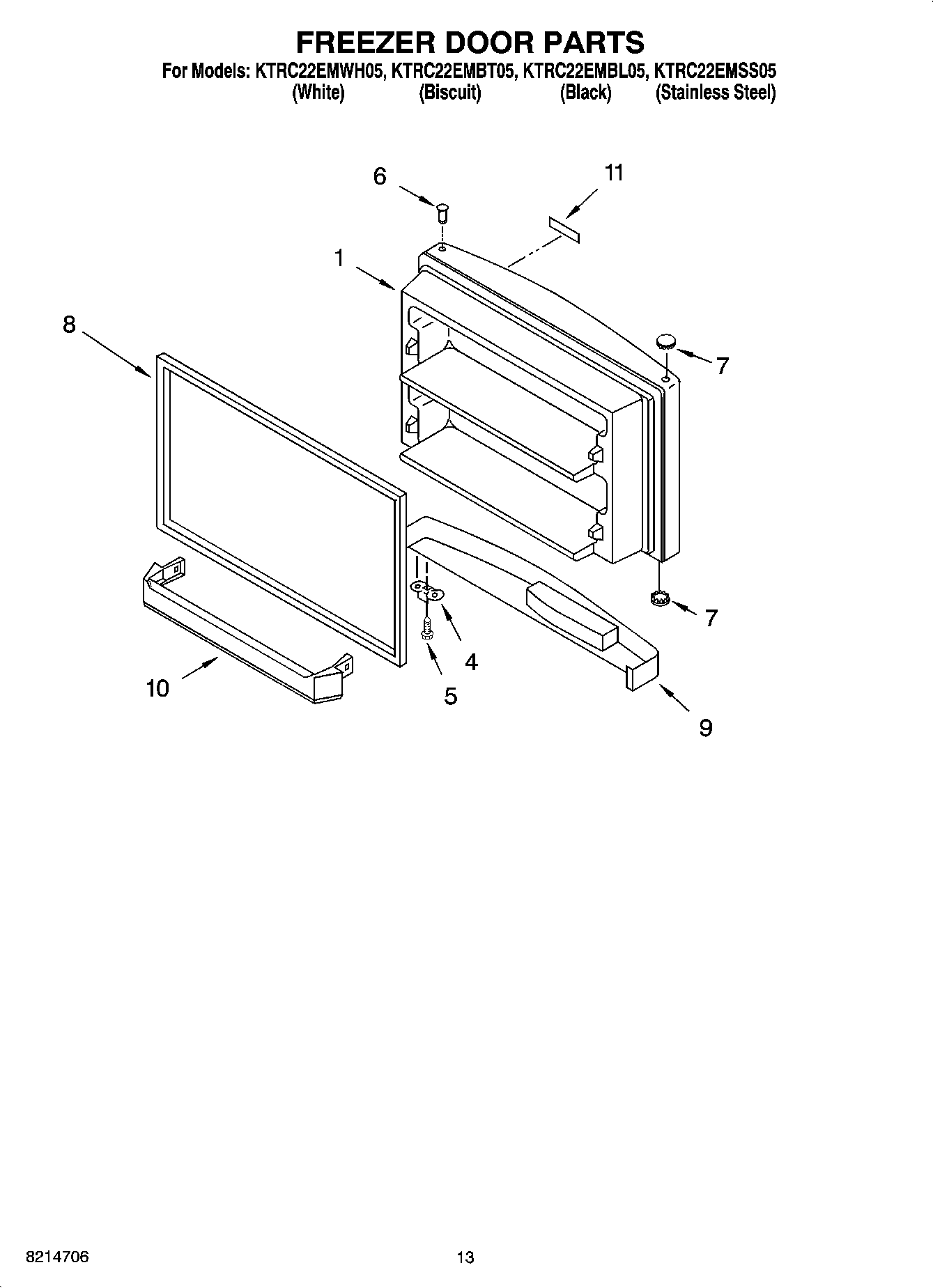

KTRC22EMBL05 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1	Freezer Door (Includes Illus. 6 & 7) (White)
1	Freezer Door (Includes Illus. 6 & 7) (Black)
1	Freezer Door (Includes No.8& No.12) (Biscuit)
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2177310 Whirlpool Refrigerator Door Gasket
8	WHITE DOOR GASKET-FIP
9	Handle (White)
9	Handle (Biscuit)
9	Handle (Black)
10	Trim, Door
11	Nameplate (Biscuit)
11	Nameplate (Black)
11	Nameplate (White)
