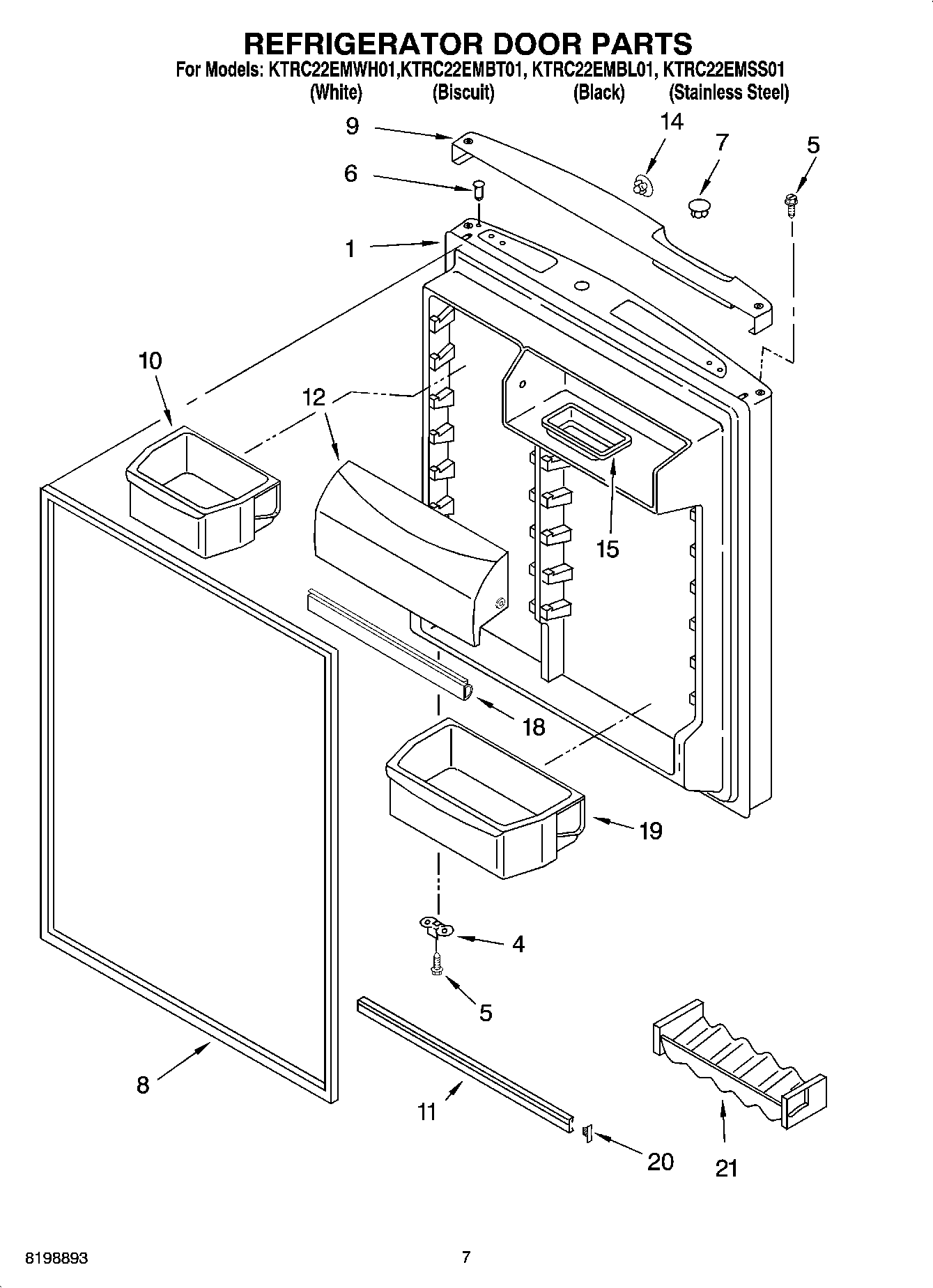

KTRC22EMBT01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 6 & 8) (Biscuit)
1	Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
1	Refrigerator Door (Includes Illus. 6 & 8) (Black)
1	Refrigerator Door (Includes Illus. 6 & 8) (White)
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159061 Whirlpool Refrigerator Door Gasket
8	2177311 Whirlpool Refrigerator Magnetic Door Gasket
9	Handle (White)
9	Handle (Black)
9	Handle (Biscuit)
10	Bin, Door Shelf (2)
11	WPW10421486 Whirlpool Refrigerator Door Trim
12	Door, Compartment
14	HOLE PLUG, ENDCAP (WHITE)
14	Hole Plug, Handle (Biscuit)
14	HOLE PLUG, ENDCAP (BLACK)
15	Butter Tray
18	Gasket, Door Compartment
19	Bin, Door Shelf
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Beverage Holder
