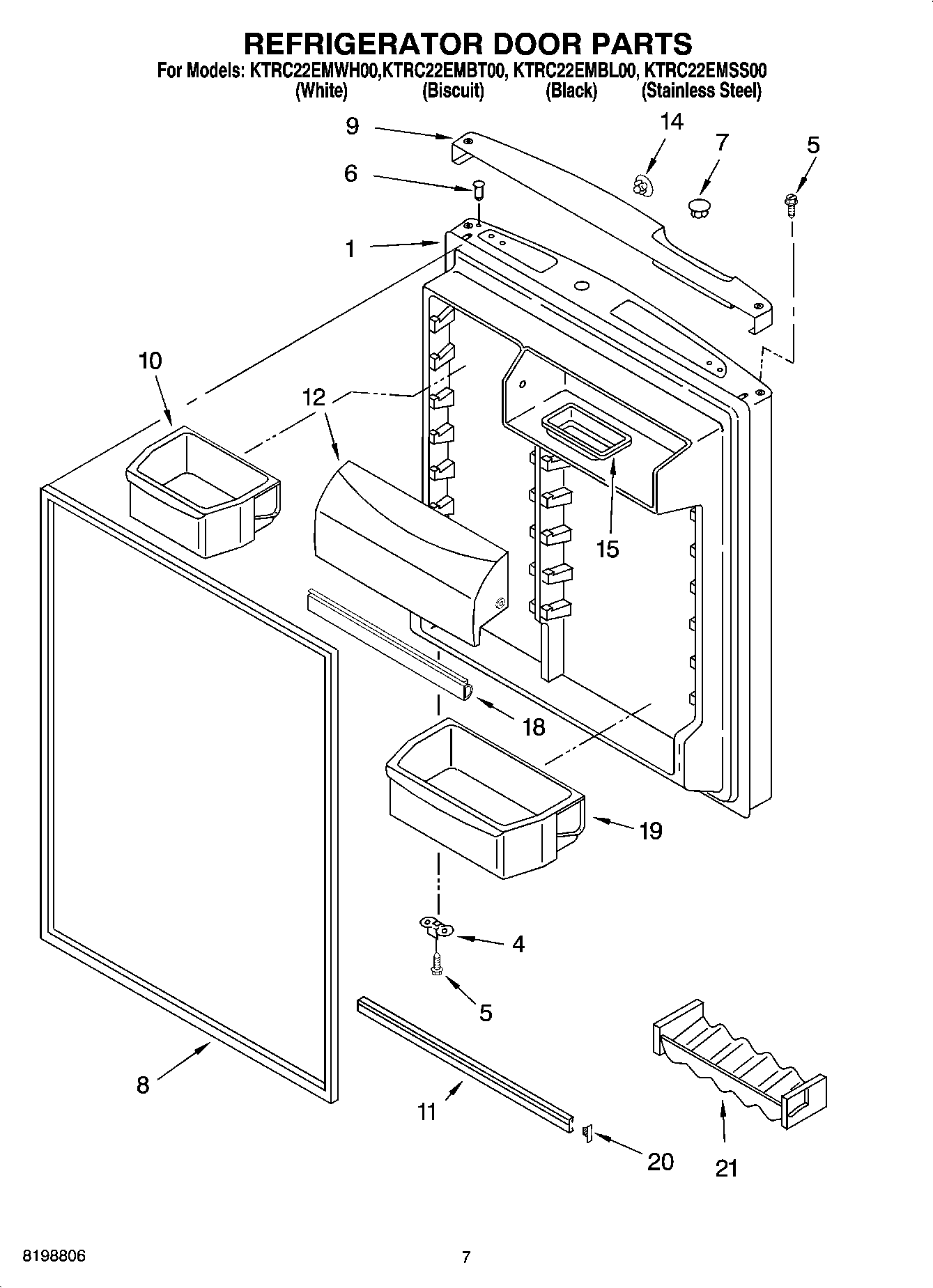

KTRC22EMSS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 6 & 8) (Biscuit)
1Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
1Refrigerator Door (Includes Illus. 6 & 8) (Black)
1Refrigerator Door (Includes Illus. 6 & 8) (White)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
82177311 Whirlpool Refrigerator Magnetic Door Gasket
9Handle (White)
9Handle (Black)
9Handle (Biscuit)
10Bin, Door Shelf (2)
11WPW10421486 Whirlpool Refrigerator Door Trim
12Door, Compartment
14HOLE PLUG, ENDCAP (WHITE)
14Hole Plug, Handle (Biscuit)
14HOLE PLUG, ENDCAP (BLACK)
15Butter Tray
18Gasket, Door Compartment
19Bin, Door Shelf
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21Beverage Holder
