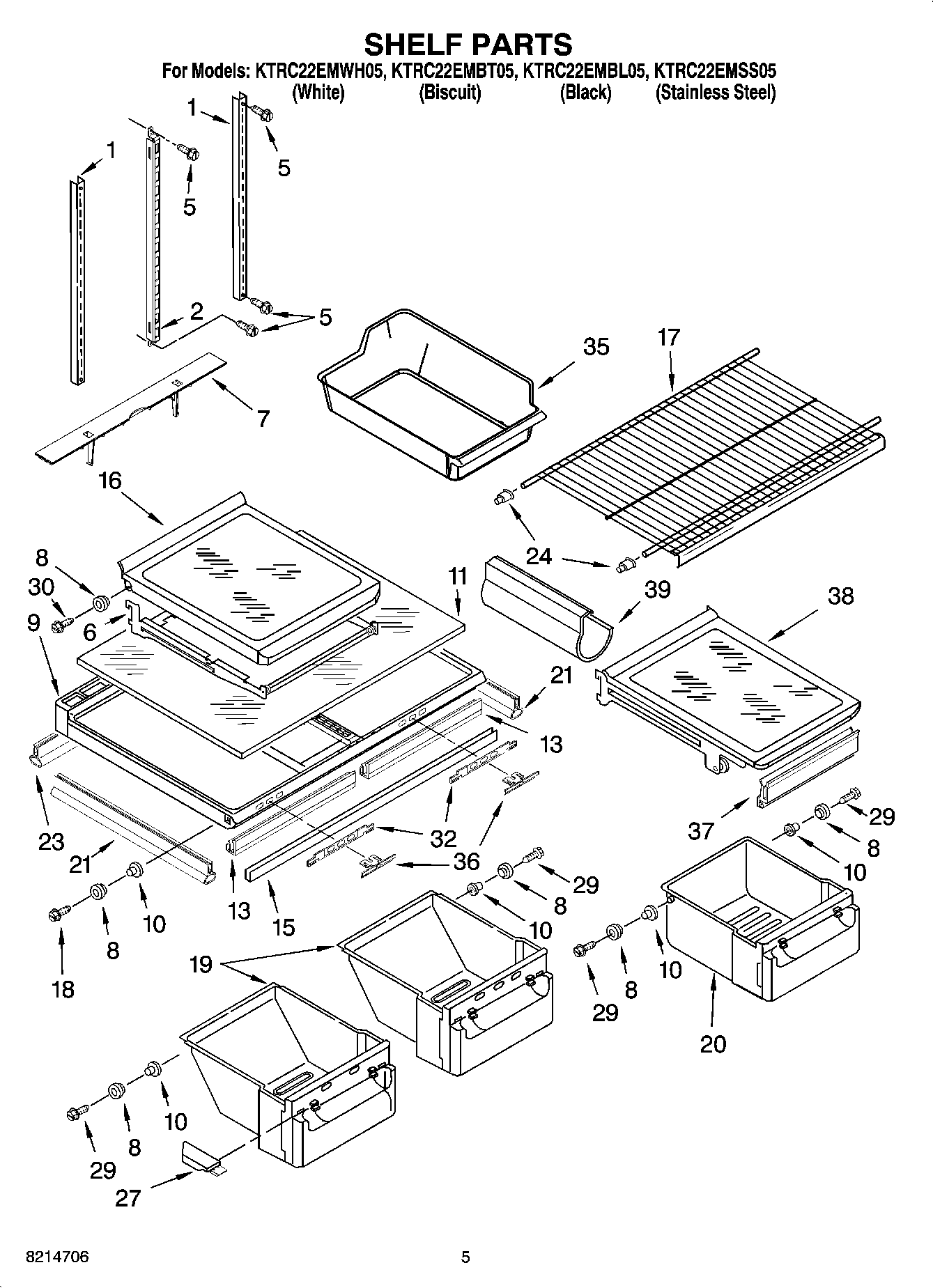

KTRC22EMSS05 03 – SHELF PARTSadmin2025-04-26T13:05:03+00:00KTRC22EMSS05 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | Frame Assembly, Cantilever |
| 7 | Deflector-Air |
| 8 | Roller |
| 9 | Crisper Cover (Includes Items 8,10,13,18,21,23, 32 & 34) |
| 10 | Eyelet, Roller |
| 11 | Glass, Crisper Cover |
| 13 | WP1125528 Whirlpool Refrigerator Gasket |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Shelf Assembly, Spillguard (3) (Includes Rollers) |
| 17 | Shelf, Freezer |
| 18 | WPW10272364 Whirlpool Refrigerator Screw |
| 19 | Pan, Crisper (Includes Items 8,10,27 & 29) |
| 20 | Pan, Meat (Includes Items 8,10 & 29) |
| 21 | Gasket, Crisper Cover (Side) (4) |
| 23 | Gasket, Pan Cover-Rear |
| 24 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 27 | Cap, Crisper (Left Side) |
| 27 | Cap, Crisper (Right Side) |
| 29 | WP489261 Whirlpool Refrigerator Screw |
| 30 | Screw |
| 32 | Slide, Humidity |
| 35 | 2254352A Whirlpool Refrigerator Ice Container |
| 36 | Button, Humidity Control |
| 37 | Gasket, Front |
| 38 | Shelf Assembly, Spillguard |
| 39 | W10777924 Whirlpool Refrigerator Wine Rack |
