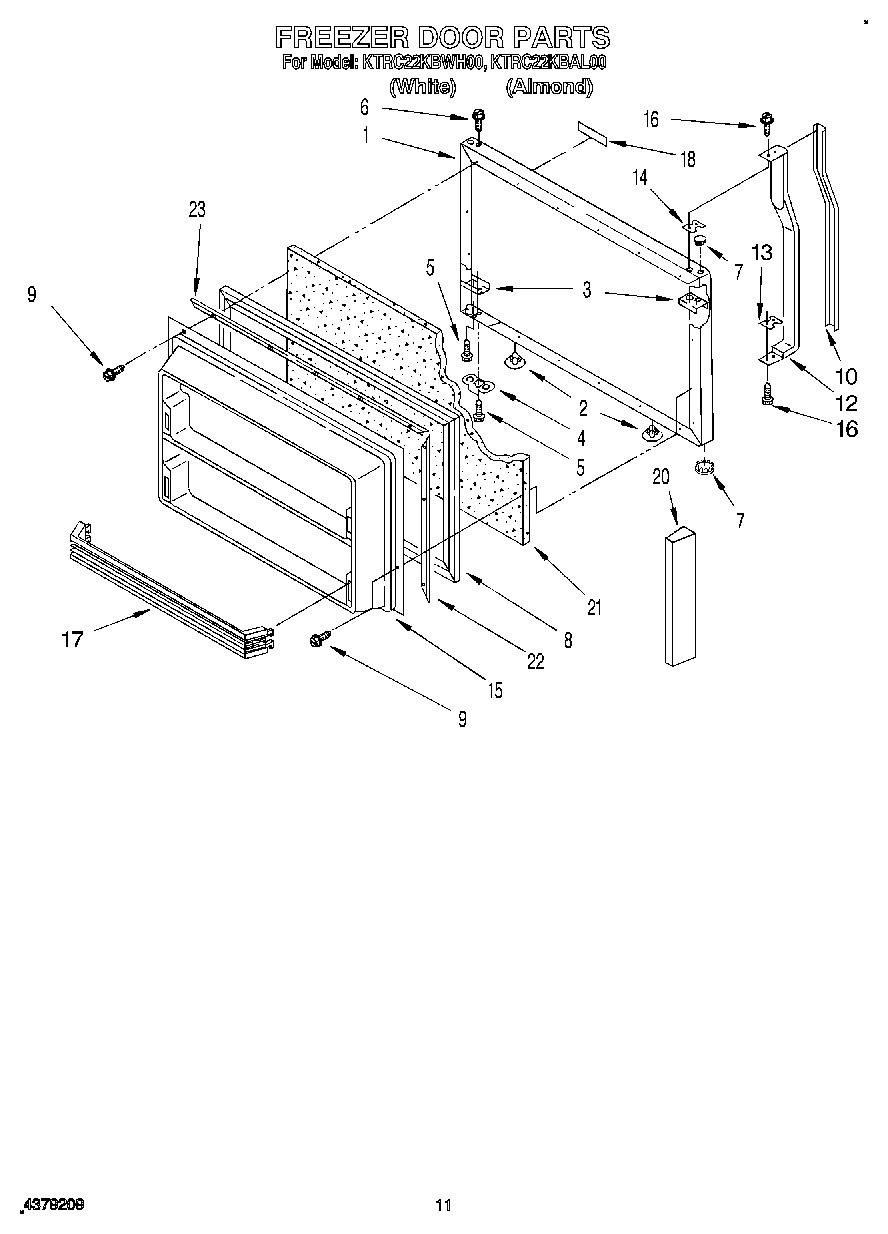

KTRC22KBAL00 07 – FREEZER DOOR

KTRC22KBAL00 07 – FREEZER DOOR

Written by

in

KTRC22KBAL00 07 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Also Order Item 21) (Almond)
1Panel, Freezer Door (Also Order Item 21) (White)
2Hole Plug (2)
2Hole Plug (2) (Almond)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82188460A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
9WP488729 Whirlpool Refrigerator Door Screw
10Insert, Handle (Almond)
10Insert, Handle (White)
12Handle
13Shim, Bottom
14Spacer, Handle
15Interior Door Panel
16WP488920 Whirlpool Refrigerator Screw
17Shelf Bin, Fixed
18Nameplate (White Model)
18Nameplate (Almond Model)
20Dike, Door (2)
21WPL 876029
22Retainer, Gasket
23Gasket Retainer, Top & Bottom
