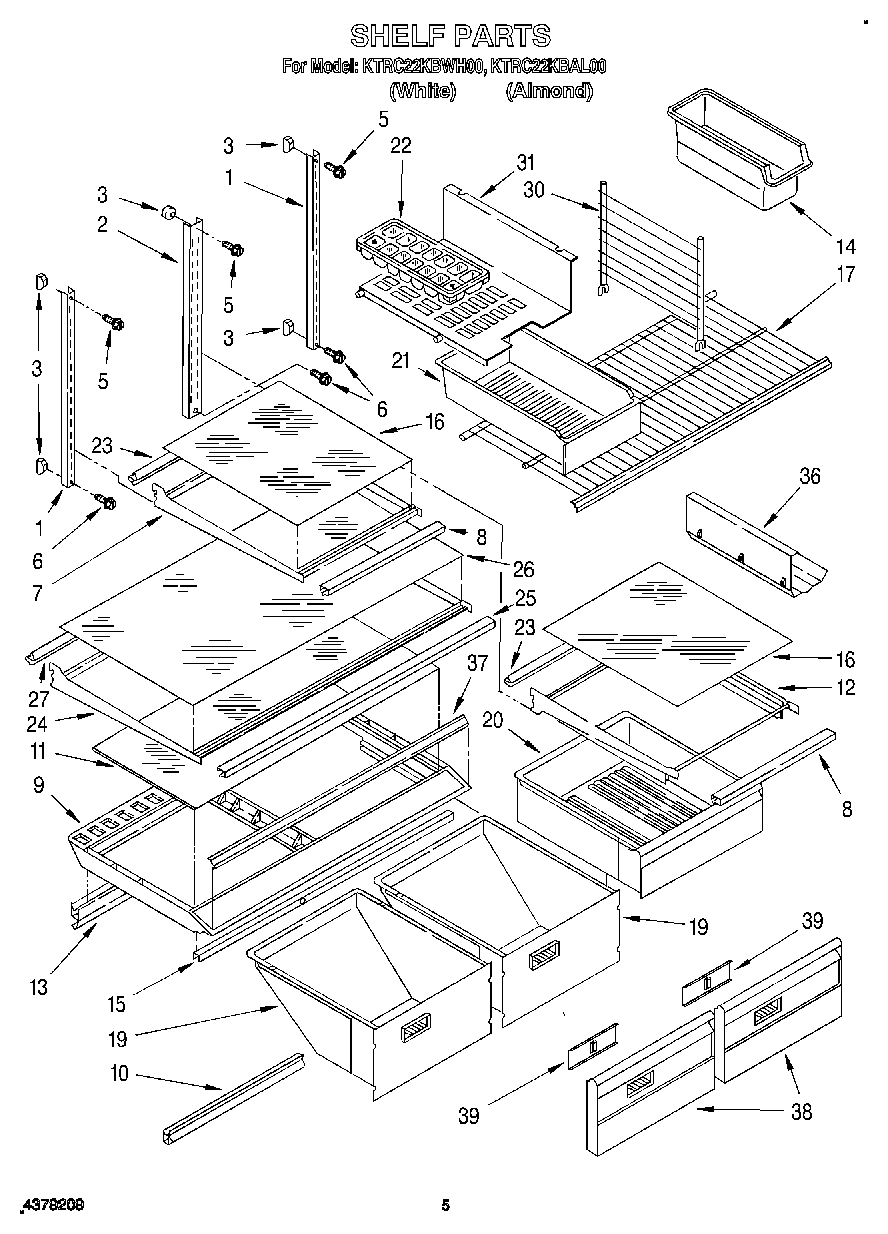

KTRC22KBWH00 04 – SHELF, LIT/OPTIONAL

KTRC22KBWH00 04 – SHELF, LIT/OPTIONAL

Written by

in

KTRC22KBWH00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2168826
	WPL LIT2169124
	Torx Key
	WPL LIT1126426
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (2)
8	Gasket (Front)
9	WP2151749 Whirlpool Refrigerator Cover
10	Gasket-Front
11	Glass, Pan Cover
12	Pan Shelf, Cantilever
13	Gasket, Rear
14	WP982704 Whirlpool Refrigerator Container
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Glass
24	Shelf, Full
25	Gasket, Front Cantilever
26	Glass, Full Shelf
27	Retainer, Shelf
30	Divider
31	Shelf, Ice Tray
36	Wine & Egg Rack
37	Trim, Crisper Cover
38	Front, Crisper
39	Almond (Uncut)
39	350930 Whirlpool White Spray Paint
39	350956 Whirlpool Spray Assembly
39	799344 Whirlpool Refrigerator Paint
39	72017 Whirlpool Appliance Touch-Up Paint White
39	WP72107 Whirlpool Touchup
39	212643 Whirlpool Refrigerator Permagum Sealer
39	Slide, Front
39	Leveler (Thinner)
39	350942 Whirlpool Spray Paint
39	511873 Whirlpool Refrigerator Paint
39	285006 Whirlpool Spray
39	72032 Whirlpool Touch Up Paint Black
39	CEMENT, ALUMILASTIC (1 1/4 OZ.)
39	TAPE, VINYL (3/4 X 108“)
39	WP542638 Whirlpool Refrigerator Grease
39	WP505587 Whirlpool Refrigerator Sealer
39	WP503695 Whirlpool Refrigerator Sealer
39	876370 Whirlpool Refrigerator Insulation
39	833938 Whirlpool Refrigerator Terminal
39	WPL 876029
39	606755 Whirlpool Refrigerator Bag
39	WPL 799833
39	Door Reversal Instructions
