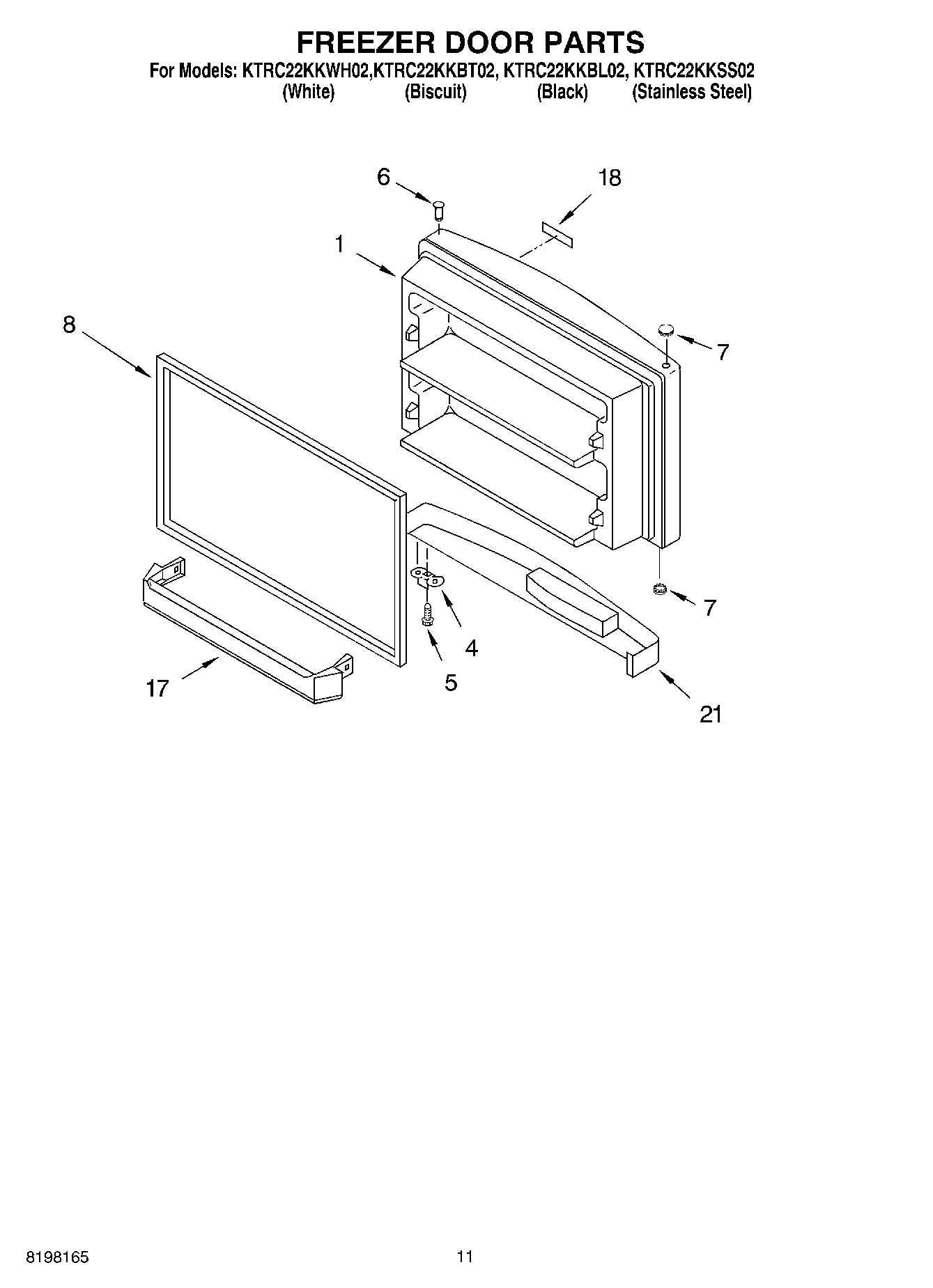

KTRC22KKBL02 06 – FREEZER DOOR, OPTIONAL

KTRC22KKBL02 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRC22KKBL02 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes No.8& No.12) (Biscuit)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
17Trim, Door
18Nameplate (White)
18Nameplate (Biscuit)
18Nameplate (Black)
21TAPE, VINYL (3/4 X 108“)
21Handle (Black)
2172032 Whirlpool Touch Up Paint Black
21285006 Whirlpool Spray
21Handle (White)
21Handle (Biscuit)
21W11729596 Whirlpool Ice Maker Field Install Kit
21WPL 876029
21606755 Whirlpool Refrigerator Bag
21511873 Whirlpool Refrigerator Paint
214392901 Whirlpool Biscuit Spray Paint
214392899 Whirlpool Biscuit Touch-Up Paint
21350942 Whirlpool Spray Paint
21212643 Whirlpool Refrigerator Permagum Sealer
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21833938 Whirlpool Refrigerator Terminal
21876370 Whirlpool Refrigerator Insulation
21WP503695 Whirlpool Refrigerator Sealer
21WPL 799833
21WPL 799832
21Enamel, Black (1 Qt. Uncut)
21CEMENT, ALUMILASTIC (1 1/4 OZ.)
21PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21Torx Key
21WP542638 Whirlpool Refrigerator Grease
21WP505587 Whirlpool Refrigerator Sealer
21350930 Whirlpool White Spray Paint
