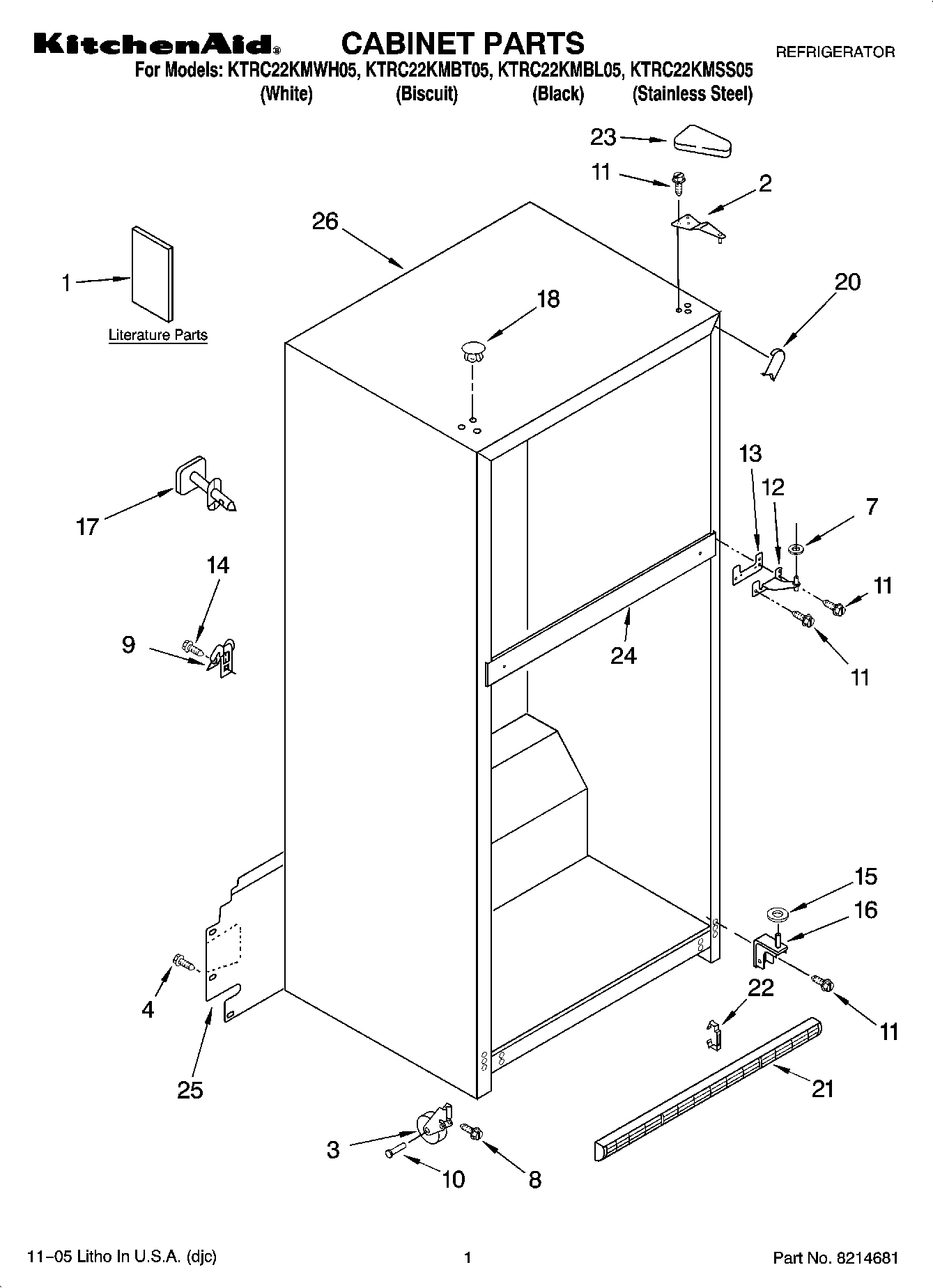

KTRC22KMBL05 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1Energy Label
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
7WP489467 Whirlpool Hinge Shim
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10W11594405 Whirlpool Axle
11WP489497 Whirlpool Screw
12WP2254618 Whirlpool Center Door Hinge
13WP2183854 Whirlpool Refrigerator Shim
14WP489464 Whirlpool Refrigerator Screw
15WP487576 Whirlpool Washer
16WP2254473 Whirlpool Refrigerator Door Hinge
17Fitting, Water Tube (Not Serviced)
18WP2151652 Whirlpool Refrigerator Button Plug
18WP2183998 Whirlpool Refrigerator Button Plug
18Hole Plug (6) (Biscuit)
20W11252732 Whirlpool Refrigerator Filler
20W10283958 Whirlpool Refrigerator Filler
20WPW10283959 Whirlpool Refrigerator Filler
21Grille (Biscuit)
21GRILLE (INCLUDES ILLUS. 19) (BLACK)
21Grille (White)
22CLIP, GRILLE
232213364 Whirlpool Refrigerator Cover
23WP2213360 Whirlpool Refrigerator Cover
23WP2213363 Whirlpool Refrigerator Cover
24Rail Center (Not Serviced)
25Cover, Unit
26Cabinet (Not A Serviceable Part)
