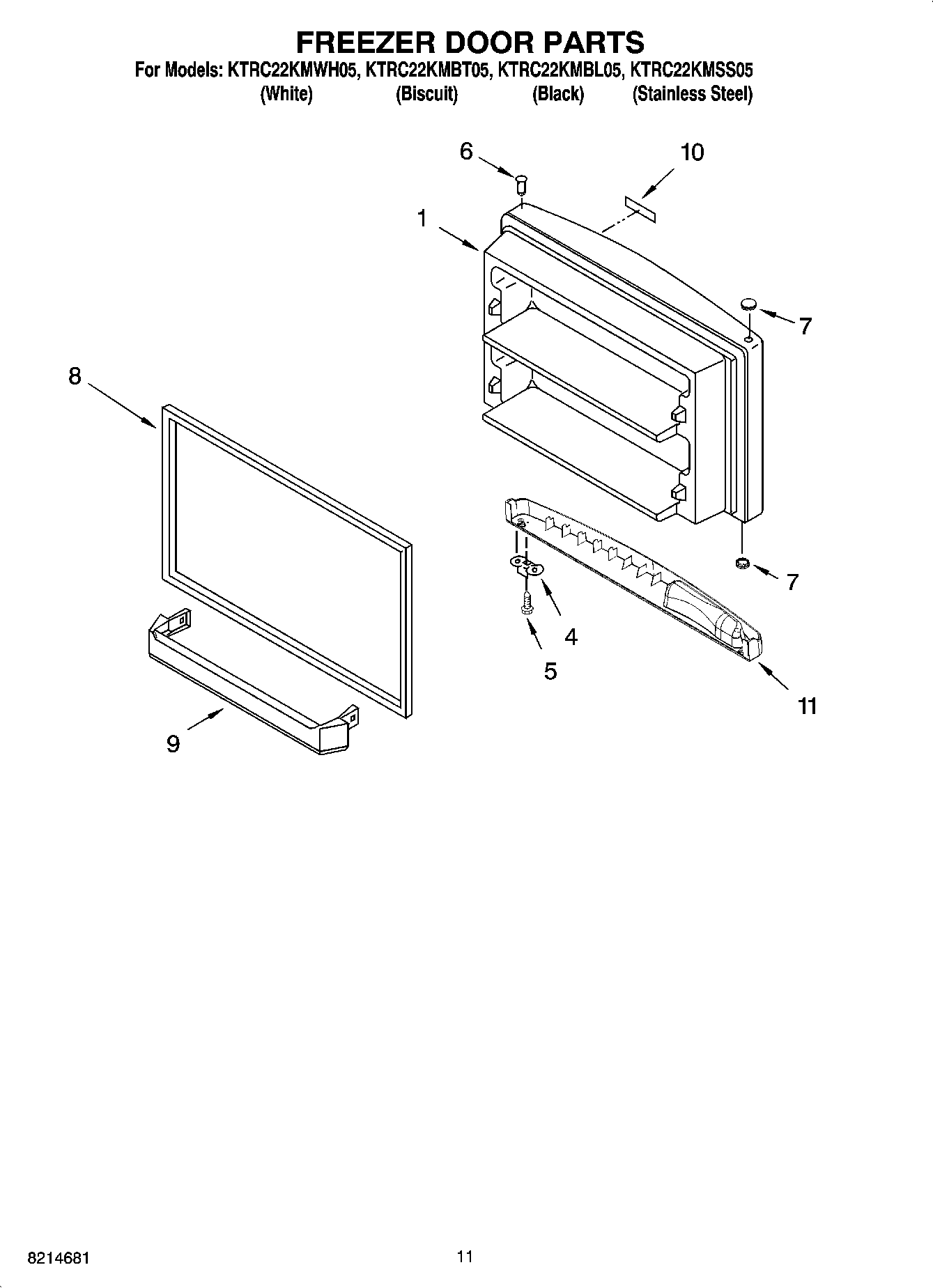

KTRC22KMWH05 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

KTRC22KMWH05 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

KTRC22KMWH05 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI110397A
WPL ARI110396A
WPL ARI110395A
WPL ARI110394A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
WPL ARI110398A
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
WP505587 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
1Freezer Door (Includes No.8& No.12) (Biscuit)
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
9Trim, Door
10Nameplate (White)
10Nameplate (Black)
10Nameplate (Biscuit)
11Handle (Black)
11Handle (White)
11Handle (Biscuit)
