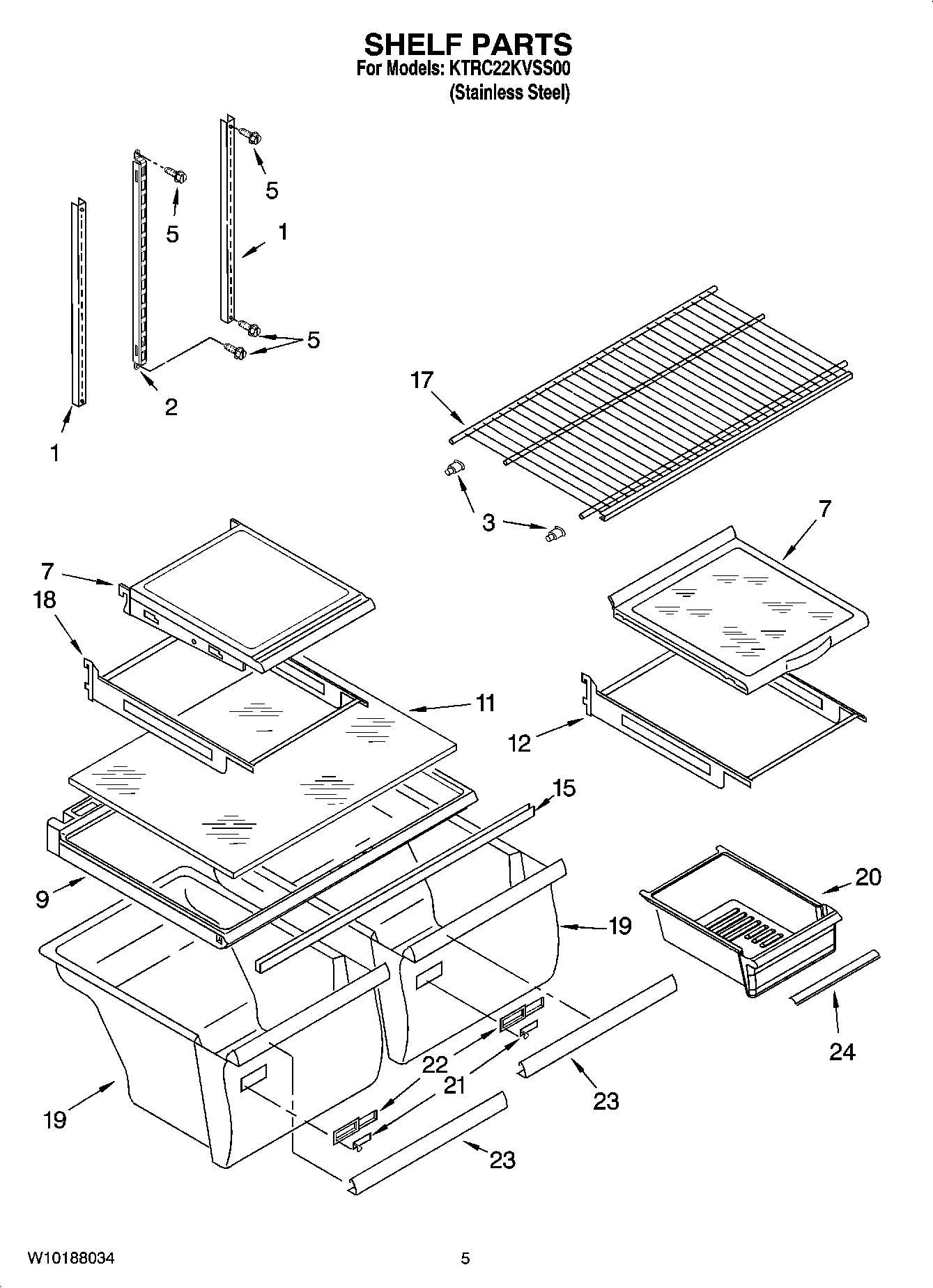

KTRC22KVSS00 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
5	WP489478 Whirlpool Refrigerator Screw
7	WP999520 Whirlpool Refrigerator Glass Shelf
9	WP2314549 Whirlpool Refrigerator Cover
11	WP2176225 Whirlpool Glass Shelf
12	Frame Assembly, Meat Shelf
15	WP2172748 Whirlpool Drawer Support
17	Shelf, Freezer
18	Frame Assembly, Shelf
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	WP2218132K Whirlpool Crisper Meat Pan
21	WP2176222 Whirlpool Refrigerator Slide
22	WP2212446 Whirlpool Refrigerator Control Body
23	WP2195341 Whirlpool Refrigerator Pan Trim
24	Trim, Meat Pan
