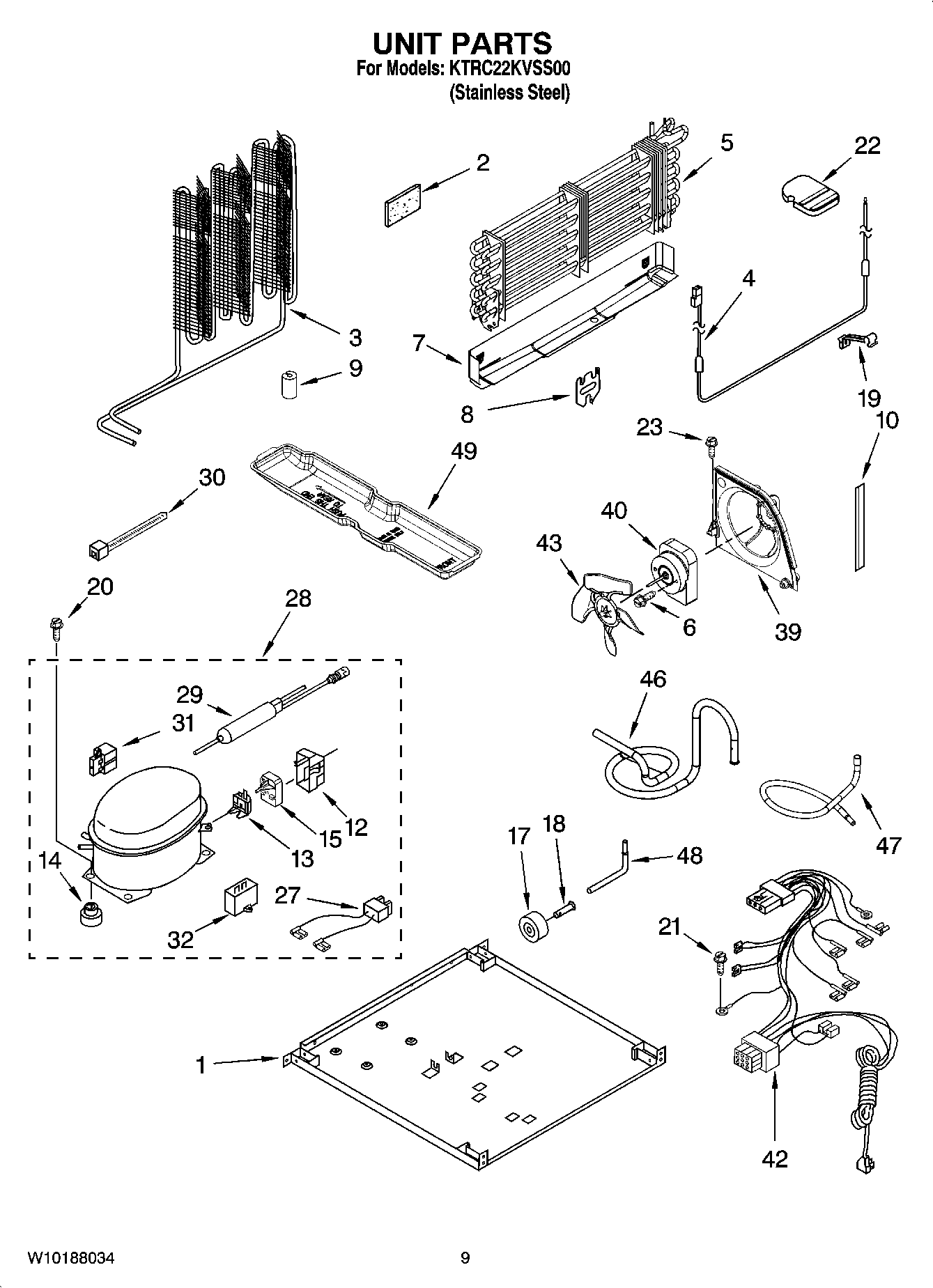

KTRC22KVSS00 05 – UNIT PARTS

KTRC22KVSS00 05 – UNIT PARTS

Written by

in

KTRC22KVSS00 05 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 4.0 Ozs. (R134A)
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	978027 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	W10852725 Whirlpool Refrigerator Grommet
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
13	WP2302290 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2258450 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	WP489128 Whirlpool Refrigerator Screw
22	Support Block
23	3400518 Whirlpool Oven Foot Mount Screw
27	WP2172890 Whirlpool Refrigerator Wire
28	W10823815 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	W10920279 Whirlpool Refrigerator Start Relay
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
39	WP2315541 Whirlpool Refrigerator Air Baffle
40	WP2188874 Whirlpool Refrigerator Condenser Motor
42	Wire Assy. Unit
43	W11458267 Whirlpool Refrigerator Fan Blade
46	Tube, Discharge
47	2205293 Whirlpool Refrigerator Tube
48	W11676464 Whirlpool Tube
49	WP2254574 Whirlpool Refrigerator Evaporator Tray
