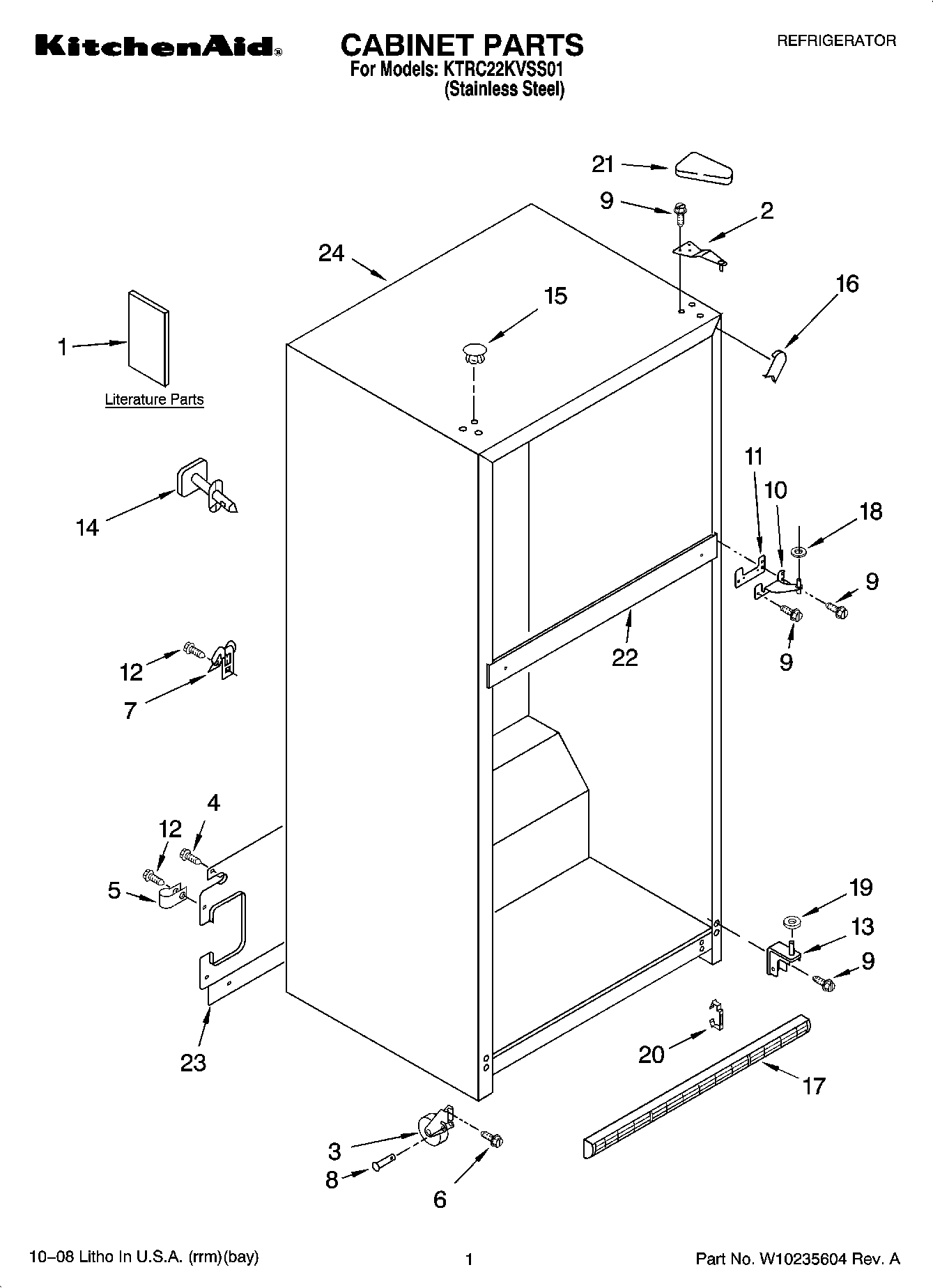

KTRC22KVSS01 01 – CABINET PARTS

KTRC22KVSS01 01 – CABINET PARTS

Written by

in

KTRC22KVSS01 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Use & Care Guide (Trilingual)
1Use & Care Guide (Bilingual)
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489442 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8W11594405 Whirlpool Axle
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183852 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14Fitting, Water Tube (Not Serviced)
15WP2183998 Whirlpool Refrigerator Button Plug
16W11252732 Whirlpool Refrigerator Filler
17GRILLE (INCLUDES ILLUS. 19) (BLACK)
18WP489467 Whirlpool Hinge Shim
19WP487576 Whirlpool Washer
20CLIP, GRILLE
21WP2213363 Whirlpool Refrigerator Cover
22Rail, Center (Not Serviced)
23Cover, Unit
24Cabinet, (Not A Serviceable Part)
