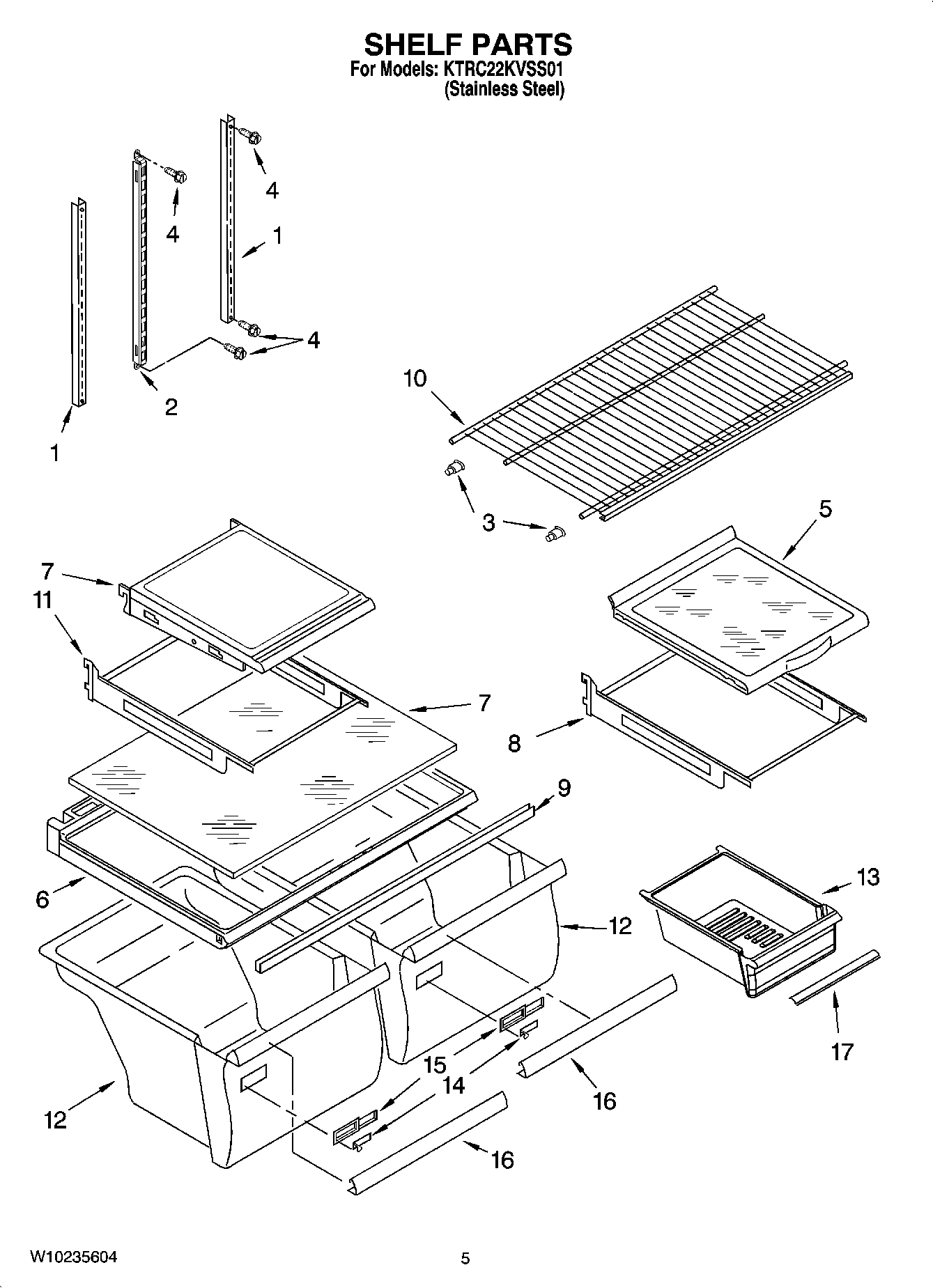

KTRC22KVSS01 03 – SHELF PARTS

KTRC22KVSS01 03 – SHELF PARTS

Written by

in

KTRC22KVSS01 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
4WP489478 Whirlpool Refrigerator Screw
5WP999520 Whirlpool Refrigerator Glass Shelf
6WP2314549 Whirlpool Refrigerator Cover
7WP2176225 Whirlpool Glass Shelf
8Frame Assembly, Meat Shelf
9WP2172748 Whirlpool Drawer Support
10Shelf, Freezer
11Frame Assembly, Shelf
12W10854037 Whirlpool Refrigerator Crisper Pan
13WP2218132K Whirlpool Crisper Meat Pan
14WP2176222 Whirlpool Refrigerator Slide
15WP2212446 Whirlpool Refrigerator Control Body
16WP2195341 Whirlpool Refrigerator Pan Trim
17Trim, Meat Pan
