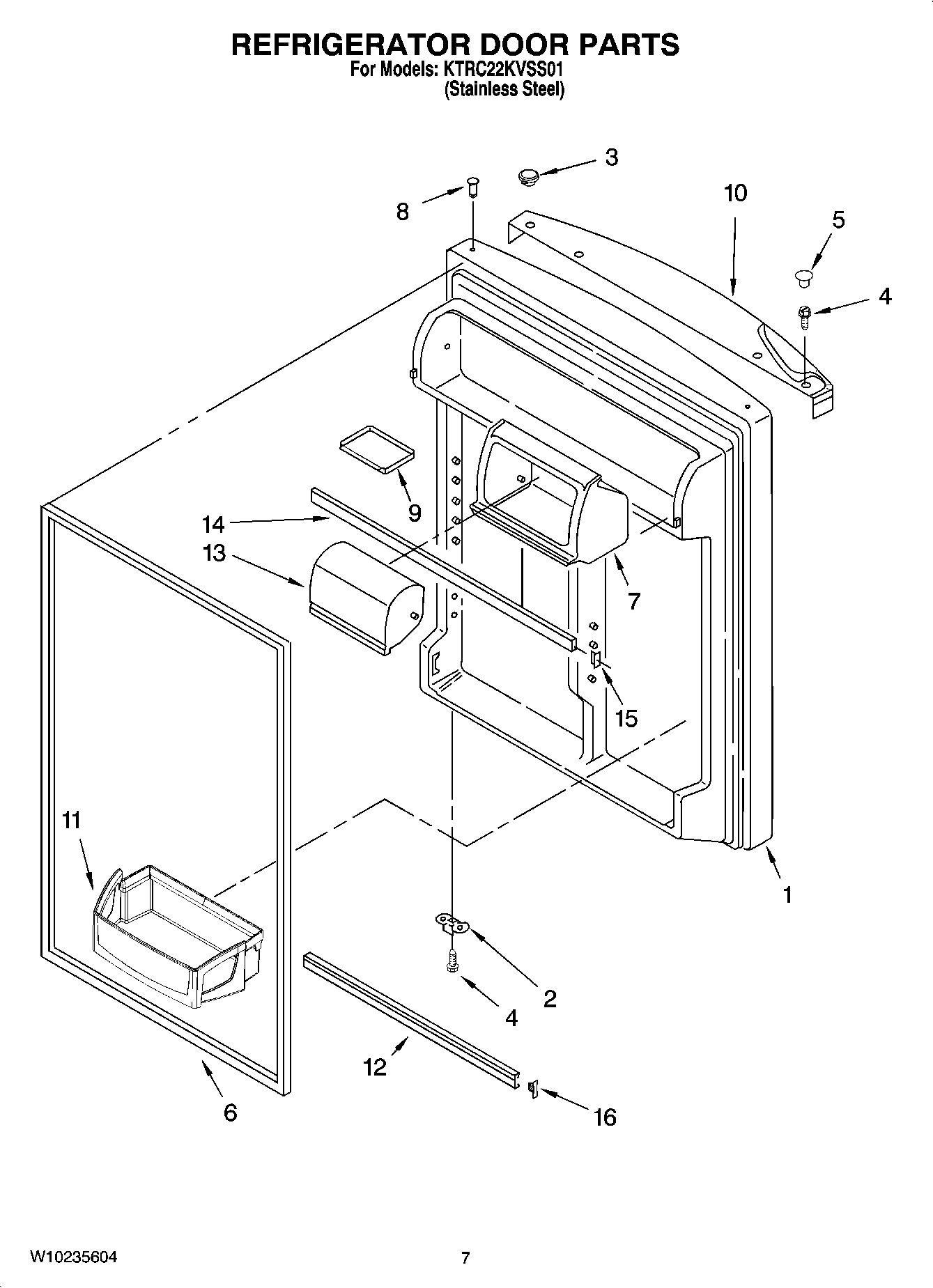

KTRC22KVSS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless Steel)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (BLACK)
4WP681249 Whirlpool Screw Assembly
5WP2212651 Whirlpool Refrigerator Button Plug
62177311 Whirlpool Refrigerator Magnetic Door Gasket
7Housing Compartment
8WP2183003 Whirlpool Thimble
9Tray, Door
10Handle (Black)
11BIN-CNTLVR
12WPW10421486 Whirlpool Refrigerator Door Trim
13DOOR-COMP
14Trim, Door Shelf
15Endcap, Door Trim
16WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
