KTRC22MJBL01 07 – FREEZER DOOR, OPTIONAL

KTRC22MJBL01 07 – FREEZER DOOR, OPTIONAL

Written by

in

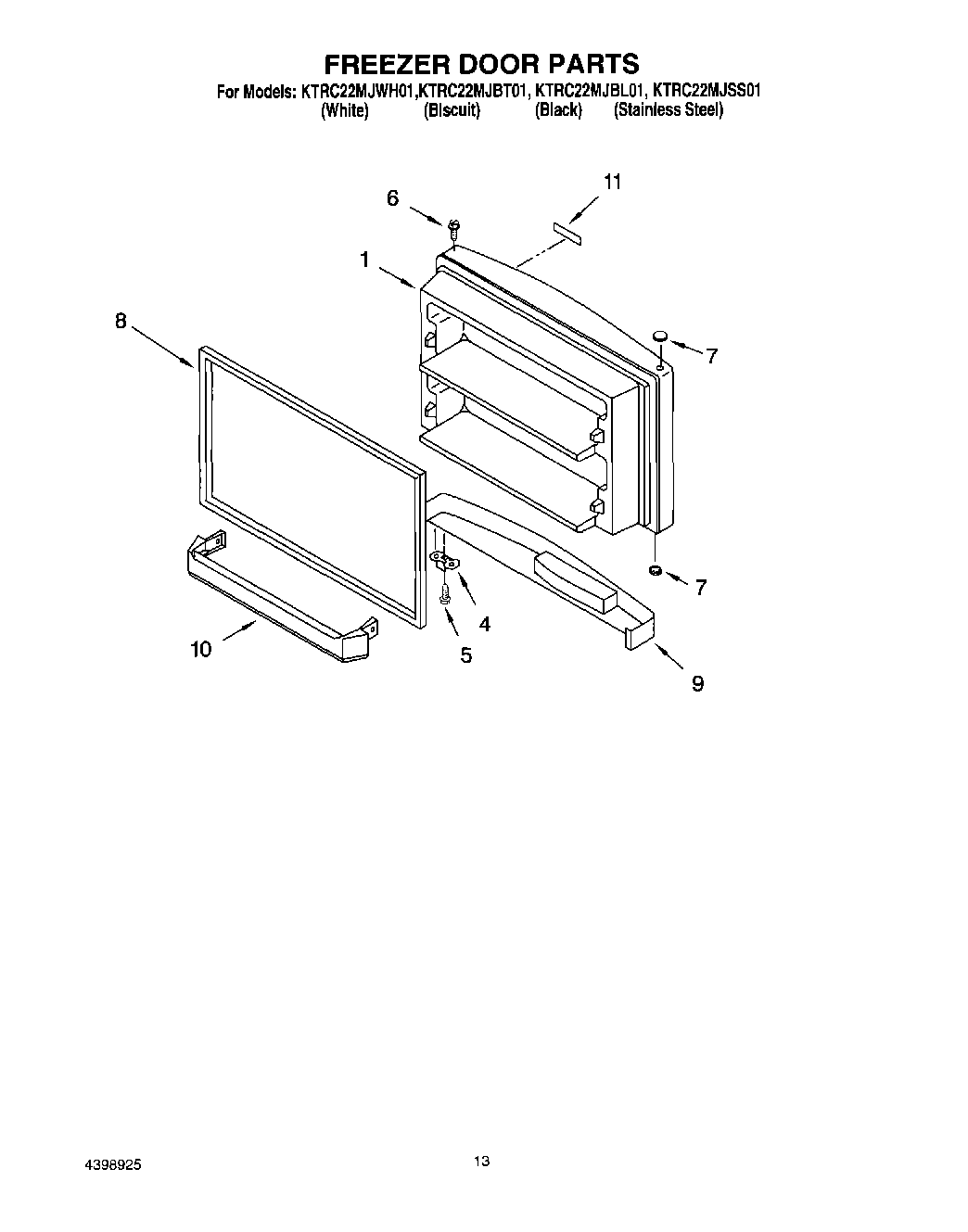

KTRC22MJBL01 07 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes No.8& No.12) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (Black)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
9Handle (Black)
9Handle (Biscuit)
9Handle (White)
10Trim, Door
11PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
11Nameplate (Black)
11Nameplate (Biscuit)
11Nameplate (White)
1172032 Whirlpool Touch Up Paint Black
11285006 Whirlpool Spray
11WPL 876029
11WPL 799833
11606755 Whirlpool Refrigerator Bag
11511873 Whirlpool Refrigerator Paint
114392901 Whirlpool Biscuit Spray Paint
114392899 Whirlpool Biscuit Touch-Up Paint
11350942 Whirlpool Spray Paint
11212643 Whirlpool Refrigerator Permagum Sealer
11799344 Whirlpool Refrigerator Paint
1172017 Whirlpool Appliance Touch-Up Paint White
11833938 Whirlpool Refrigerator Terminal
11876370 Whirlpool Refrigerator Insulation
11WPL 799832
11Enamel, Black (1 Qt. Uncut)
11CEMENT, ALUMILASTIC (1 1/4 OZ.)
11TAPE, VINYL (3/4 X 108“)
11Torx Key
11WP542638 Whirlpool Refrigerator Grease
11WP505587 Whirlpool Refrigerator Sealer
11WP503695 Whirlpool Refrigerator Sealer
11350930 Whirlpool White Spray Paint
