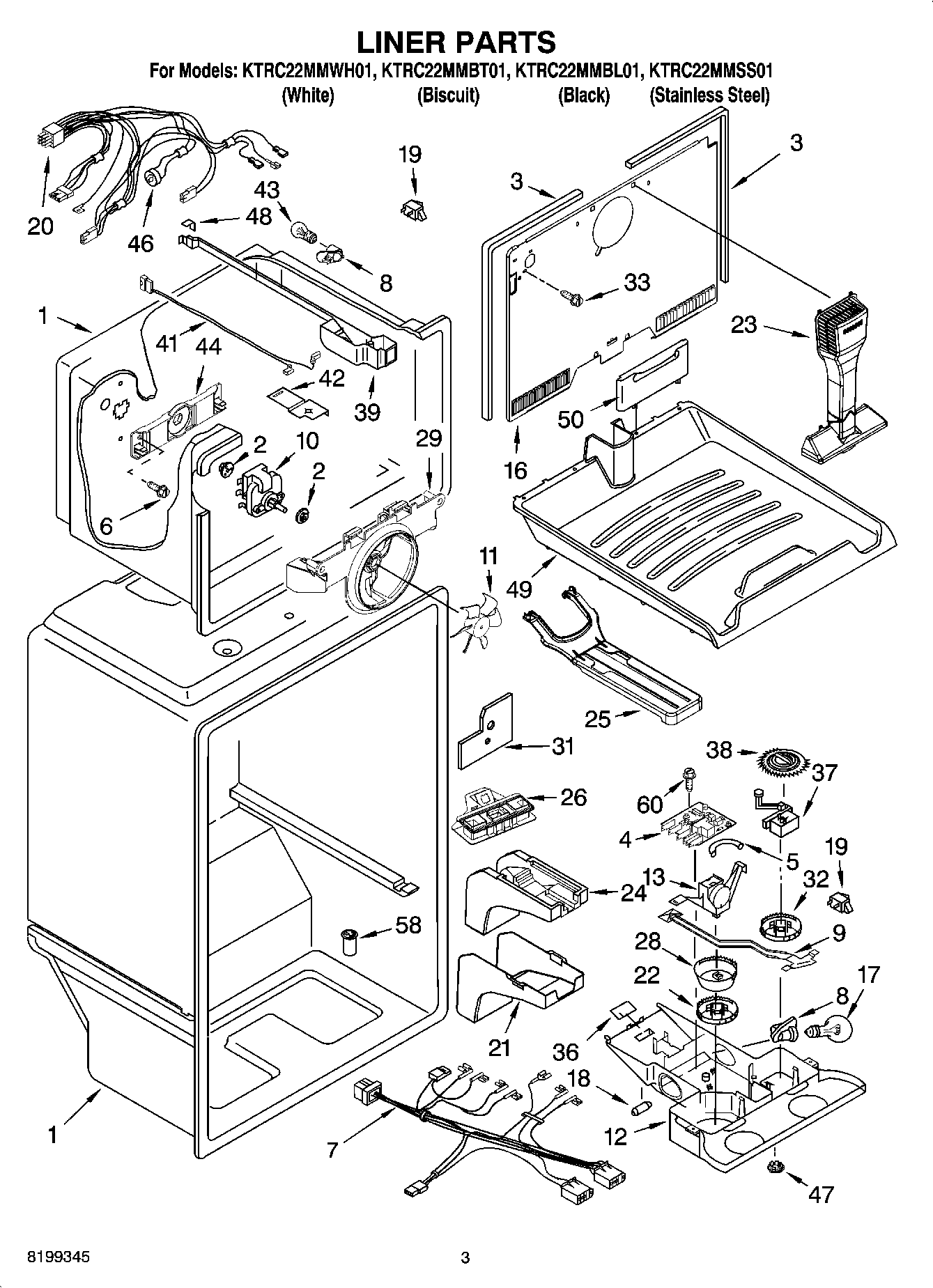

KTRC22MMSS01 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	Thermostat Tube Barrier
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP488163 Whirlpool Refrigerator Screw
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air (Slide)
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	THERMOSTAT
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment (Includes Illus. 41)
21	Cover, Air Diffuser
22	Knob, Thermostat
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Retainer, Freezer Floor
26	Air Separator Assembly
28	WP2184574 Whirlpool Refrigerator Gear Wheel
29	BRACKET, FAN MOTOR
31	Shield, heat
32	Knob, Damper
33	WP489478 Whirlpool Refrigerator Screw
36	WP2205079 Whirlpool Refrigerator Seal
37	Control, Freezer
38	Gear Wheel, Freezer Control
39	Housing Base
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	2254454 Whirlpool Refrigerator Bracket
46	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
47	940014 Whirlpool Refrigerator Primary Button Plug
48	Gasket, Rear
49	Pullout, Freezer Floor
50	REAR FENCE PULL-OUT FREEZER FLOOR
58	WP2210509 Whirlpool Refrigerator Tub Valve
60	Screw
