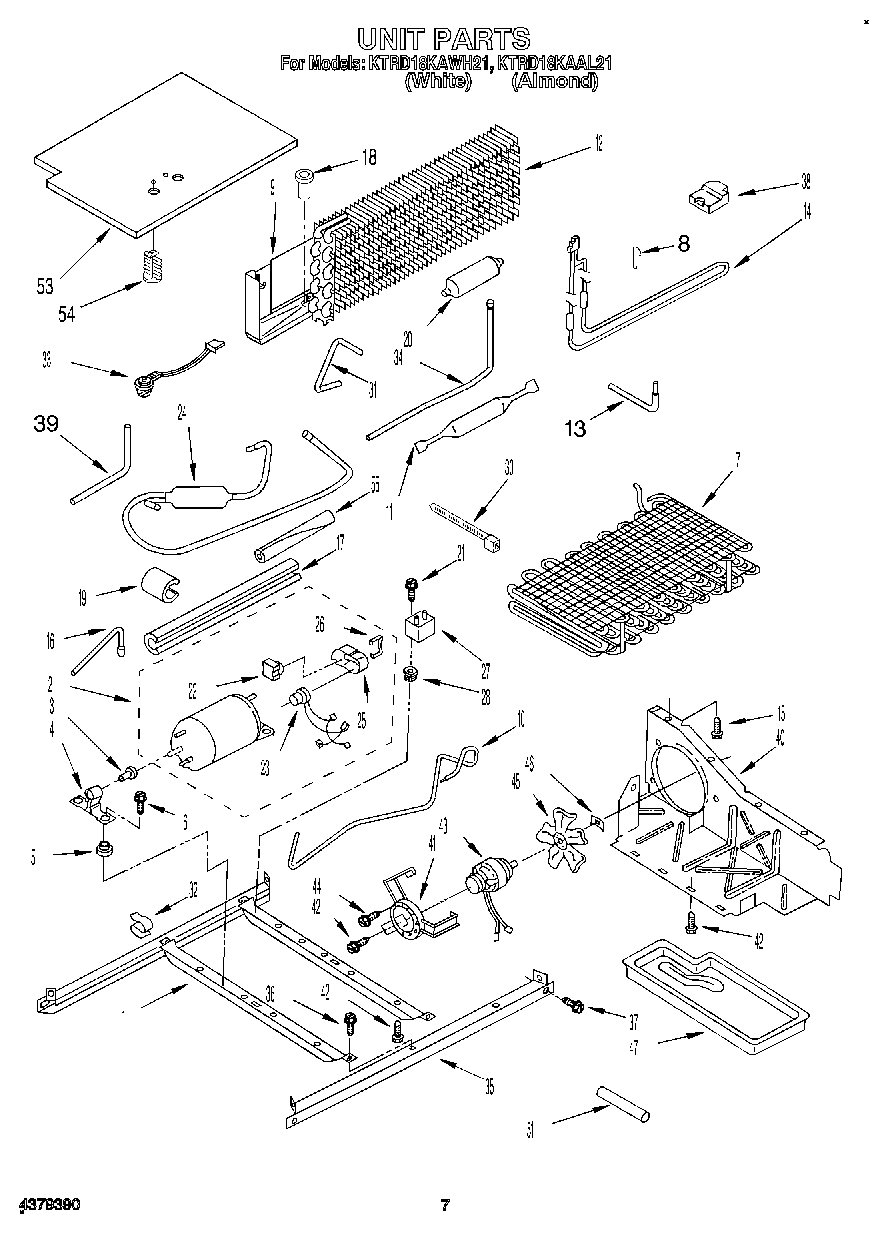

KTRD18KAAL21 05 – UNIT

KTRD18KAAL21 05 – UNIT

Written by

in

KTRD18KAAL21 05 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
8Support, Heater
9Drain Pan & Heat Shield
10Tube, Discharge
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
13Tube, Process
14Heater, Defrost
16Tube, Process
17WP2002171 Whirlpool Refrigerator Sleeve
18Drain Fitting
19WP2158826 Whirlpool Refrigerator Dampener
20Reservoir
21W11693756 Whirlpool Screw Assembly
22Relay (See Overload)
23Overload (Production (Includes Relay))
23Overload (Service (Includes Relay))
24Muffler
25Terminal Cover (Service)
26Strap, Cover
27WPW10662129 Whirlpool Refrigerator Run Capacitor
28Screw Grommet
30WPW10339879 Whirlpool Wire Tie
31Tube, Muffler & Reservoir
32Clip, Wire (2)
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34Tube, Reservoir & Heat Exchanger
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
38Wedge, Air Baffle
39Tube, Condenser To Heat Loop
40Air, Baffle
41Fan, Mounting Bracket
42WP489464 Whirlpool Refrigerator Screw
43833697 Whirlpool Condenser Fan Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
51Fitting, Drain
53Cover, Unit Bottom
54489396 Whirlpool Refrigerator Clip
55VALVE, ACCESS (5/8“)
55978026 Whirlpool Refrigerator Primary Valve
55VALVE, ACCESS (1/2“)
55876764 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
55WP978025 Whirlpool Refrigerator Valve
55Sleeve
