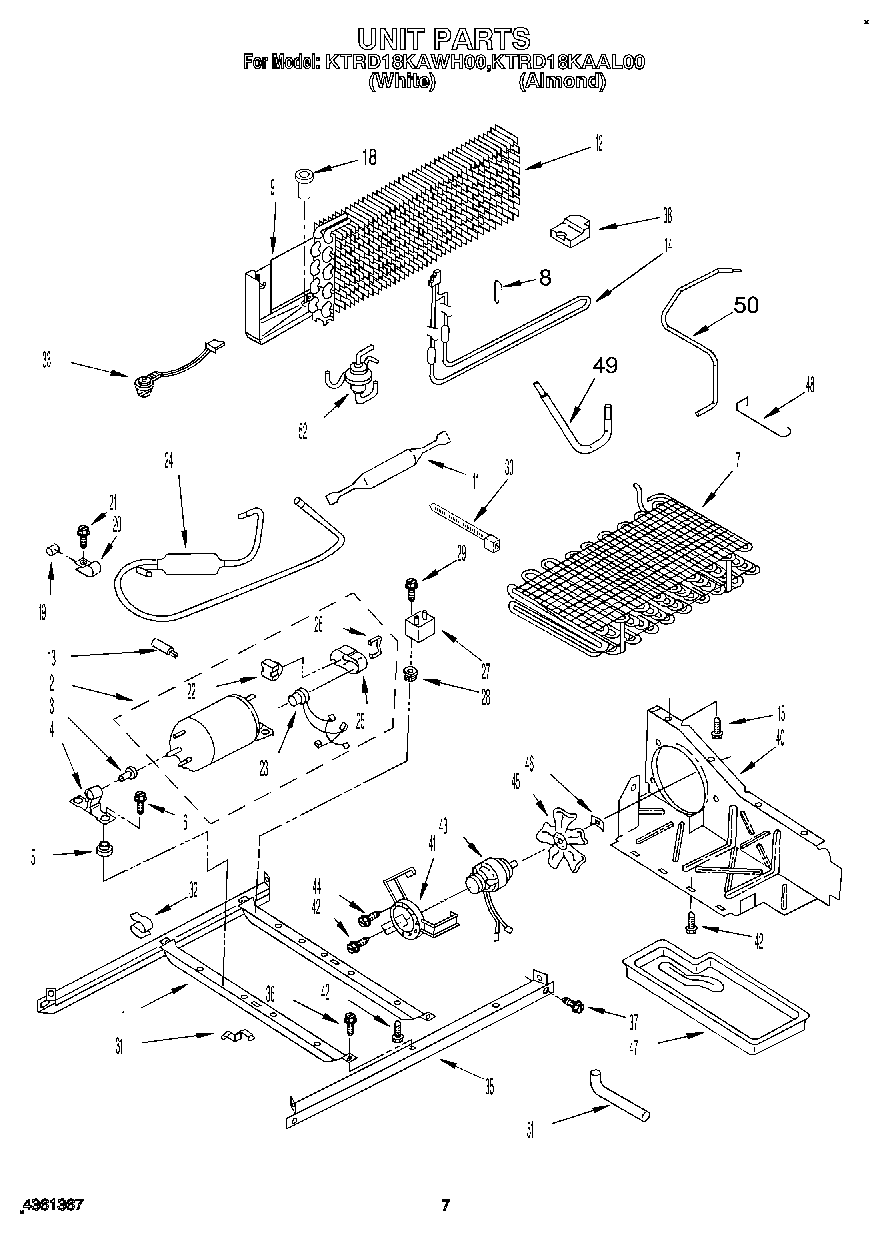

KTRD18KAWH00 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor (Includes Items 8, 9, 10 & 11) (Also Order 876765 Tube Kit)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
9	Drain Pan & Heat Shield
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Capacitor, Start
14	Heater, Defrost
18	Drain Fitting
19	Dampener (2)
20	Tube Clamp (2)
21	W11693756 Whirlpool Screw Assembly
22	Relay, (For Service Compressor Only)
23	Overload (Production (Includes Relay))
23	Overload (Production) (Includes Relay)
24	Muffler
25	Terminal Cover (Service)
25	Terminal Cover
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	WP489478 Whirlpool Refrigerator Screw
30	WPW10339879 Whirlpool Wire Tie
31	Clip (2)
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Wedge, Air Baffle
40	Air, Baffle
41	Fan, Mounting Bracket
42	WP489464 Whirlpool Refrigerator Screw
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	1105612 Whirlpool Fan Guard
49	Tube Fluid Valve To Heat Loop
50	Tube, Condenser To Fluid Valve
51	Fitting, Drain
52	978027 Whirlpool Refrigerator Primary Valve
52	VALVE, ACCESS (5/8“)
52	Fluid Control Valve
52	876764 Whirlpool Refrigerator Primary Valve
52	978026 Whirlpool Refrigerator Primary Valve
52	VALVE, ACCESS (1/2“)
52	WP978025 Whirlpool Refrigerator Valve
52	978030 Whirlpool Refrigerator Valve
