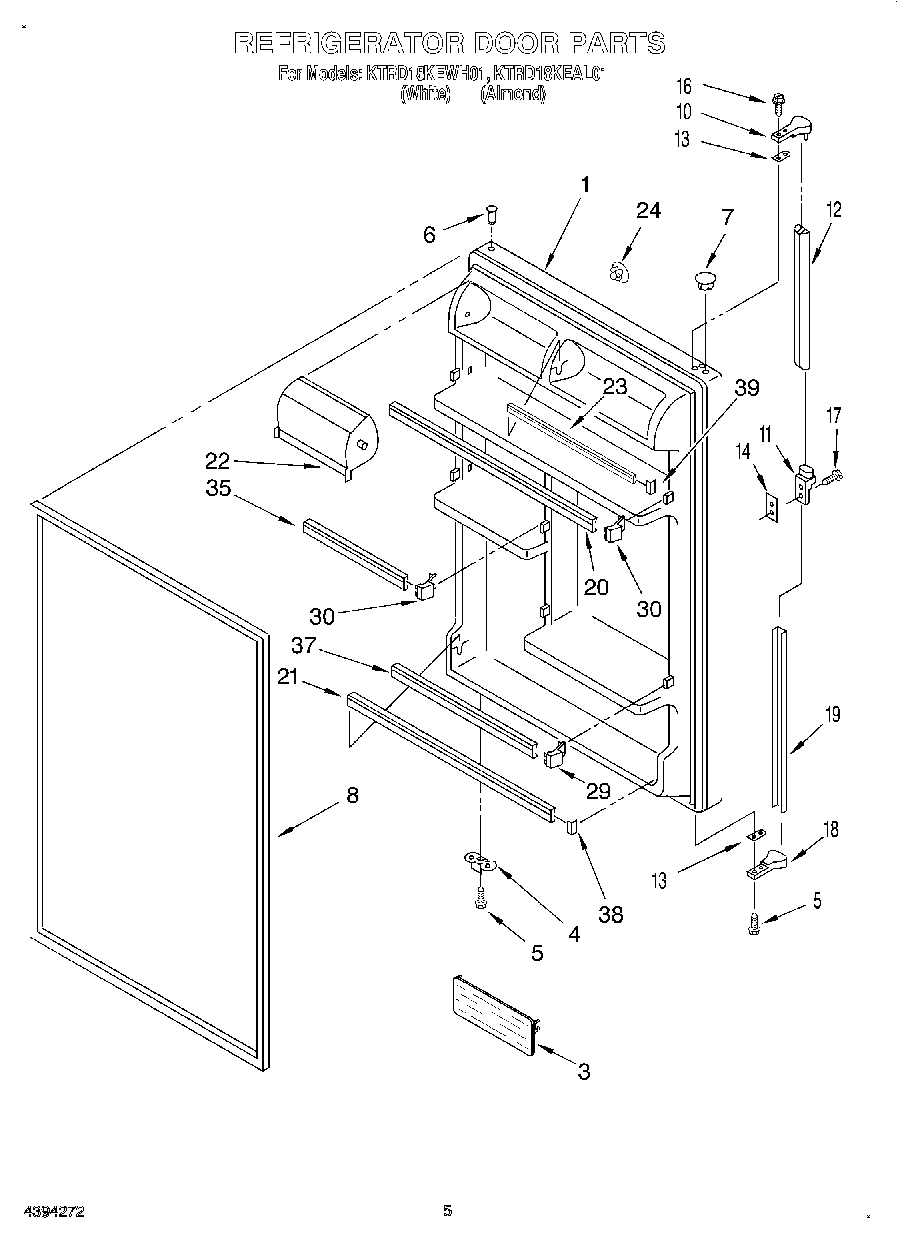

KTRD18KEAL01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Door (Includes No.8) (Almond)
1	Panel, Door (Includes No.8) (White)
3	WP2188234 Whirlpool Shelf
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	End Cap
11	Handle End, Side
12	Handle, Center (White)
12	Handle, Center (Almond)
13	Spacer, Handle
14	Shim, End Cap
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Endcap, Insert Retainer
19	Handle, Extension (White)
19	Handle, Extension (Almond)
20	Trim, Door Shelf
21	Trim, Door Shelf
22	WP2218113 Whirlpool Dairy Door
23	TRIM-DOOR
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
29	Plug-Trim
30	WP2195915 Whirlpool Door Shelf Support
35	Trim, Door Shelf
37	Trim, Door Shelf
38	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
39	ENDCAP-TRM
