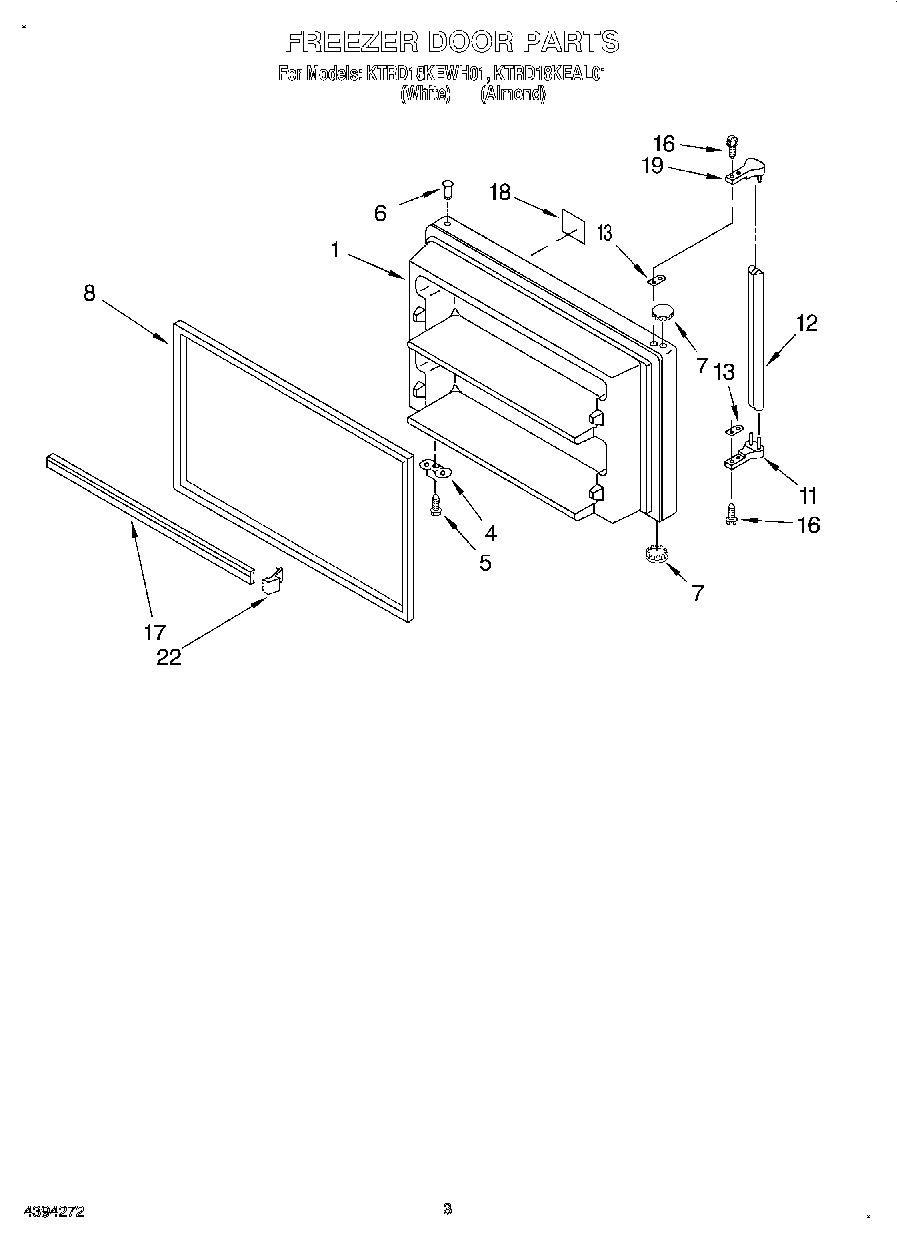

KTRD18KEWH01 02 – FREEZER DOOR

KTRD18KEWH01 02 – FREEZER DOOR

Written by

in

KTRD18KEWH01 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8) (Almond)
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic (Service)
11End Cap
12Handle, Center (Almond)
12Handle, Center (White)
13Spacer, Handle
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf (2)
18Nameplate (White Model)
18Nameplate (Almond Model)
19End Cap
22ENDCAP
