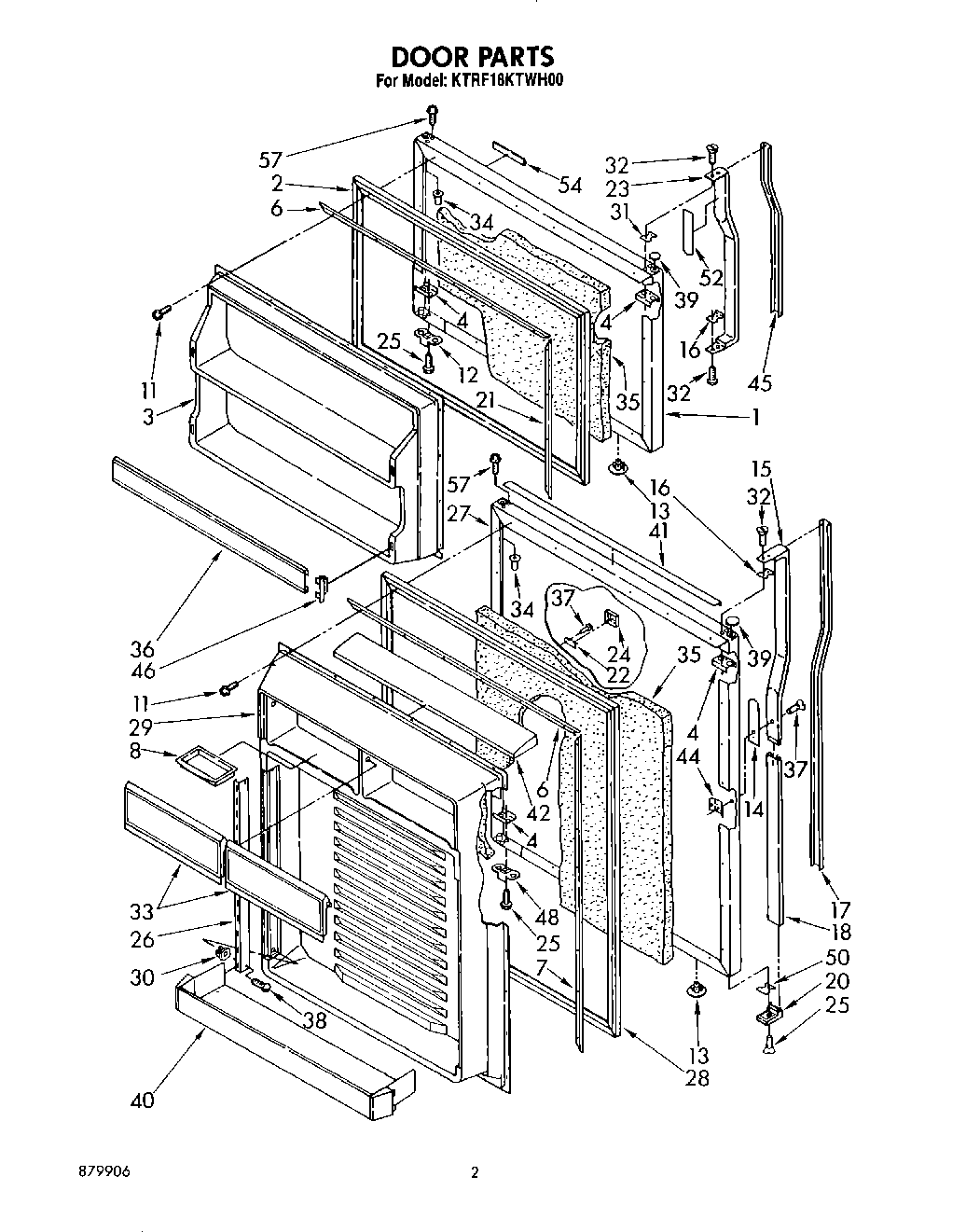

KTRF18KTAL00 02 – DOOR

Products

Position	Product
1	Door, Freezer (Toast)
1	Door, Freezer (Platinum) (Also Order Item 35)
1	Door, Freezer (White)
1	Door, Freezer (Almond)
2	Gasket, Freezer Door
3	Panel, Interior
4	W10833053 Whirlpool Refrigerator Plate
6	Retainer, Top & Bottom (2)
7	Retainer, Gasket Side
11	WP489069 Whirlpool Compactor Screw
11	SCREW
12	Bracket, Door Stop
13	Hole Plug (2) (Almond)
13	Hole Plug (2)
13	Hole Plug (2) (Platinum)
13	Hole Plug (2) (Toast)
14	Spacer, Handle
15	Handle
16	Spacer
17	Insert, Handle
18	Retainer, Insert
20	Handle End
21	Retainer Gasket Side
22	Clip, Medallion
23	Handle
24	Handle Plug (Almond)
24	Handle Plug (White)
24	Handle Plug (Platinum)
24	Handle Plug (Toast)
25	WP488921 Whirlpool Refrigerator Screw
26	Shelf Ladder, Door
27	Door, Refrigerator (Almond)
27	Door, Refrigerator (Platinum) (Also Order Item 35)
27	Door, Refrigerator (Toast)
27	Door, Refrigerator (White)
28	Gasket, Refrigerator Door
29	Panel, Interior
30	Expansion Clip
31	Spacer, Handle
32	Screw (Repair)
32	WP488920 Whirlpool Refrigerator Screw
33	Utility, Door
34	Cap, Hinge Sleeve (2)
35	WPL 876029
36	Trim, Shelf (2)
38	WP488729 Whirlpool Refrigerator Door Screw
39	Hole Plug (Platinum)
39	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39	Hole Plug (Toast)
39	Hole Plug (Almond)
40	WPL 1107307
41	WPL 1107198
42	WPL 1107941
44	WP939101 Whirlpool Refrigerator Plate
45	Insert, Handle
46	Retainer, Door Trim (2)
48	Bracket, Door Stop
50	Shim, End Cap
52	Spacer, Handle
54	Insert, Nameplate
57	Screw (Repair)
