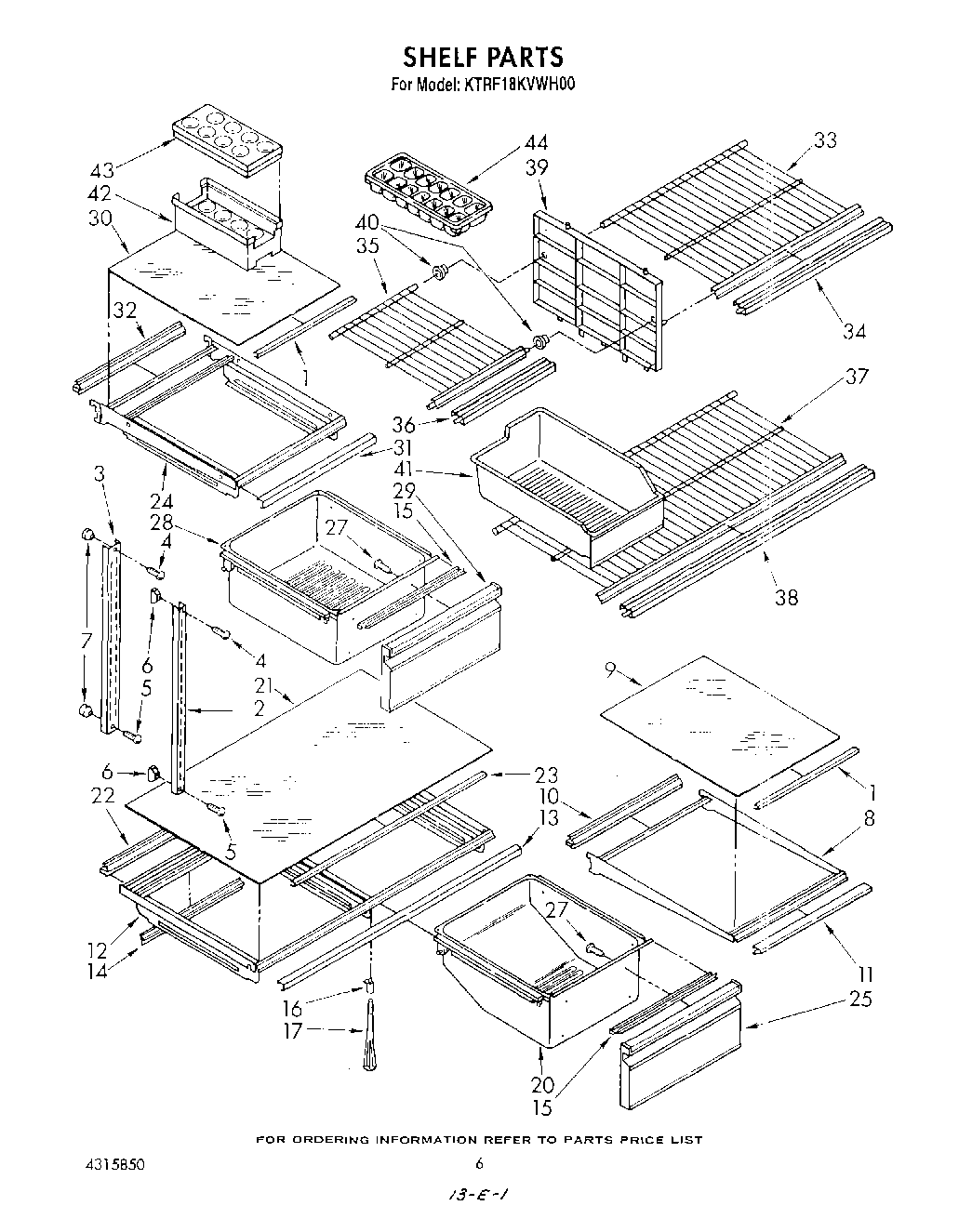

KTRF18KVAL00 04 – SHELF

Products

Position	Product
1	Shelf Gasket, Glass
2	Ladder, Shelf (Side) (2)
3	Ladder (Center)
4	Screw, 8 x 1-1/4 (3)
4	Screw, (Repair) 10 x 1 1/4
5	Screw, 8-32 x 1-1/4
5	Screw (Repair)
6	520965 Whirlpool Refrigerator Support
7	Screw Support, Center Ladder (2)
8	Shelf, Cantilever
9	Glass, Shelf
10	Glass, Reflector
11	Trim, Shelf
12	Crisper Cover, Frame
13	Trim Frame
14	Gasket, Rear (2)
15	Pan Gasket, Front
16	Support, Cover
17	Post, Cover
20	Pan (4)
21	Glass, Crisper Cover
22	Reflector, Glass Shelf
23	Shelf Gasket, Glass
24	Meat Pan, Shelf
25	Front Cover, Crisper
27	Screw (Repair)
27	WP488729 Whirlpool Refrigerator Door Screw
28	Meat Pan
29	Front Cover, Meat
30	Glass, Meat Pan Shelf
31	Trim Frame
32	Reflector, Glass Shelf
33	Shelf, Freezer
34	Trim, Shelf
35	Shelf, Ice Tray
36	Trim, Shelf
37	Freezer, Shelf Lower
38	Trim, Shelf Front
39	Divider, Ice Compartment
40	Grommet
41	PAN-ICE
42	Egg Container, Bottom
43	Egg Container, Top
44	WP841180A Whirlpool Microwave Glass Turntable Tray
