KTRF18KVTO00 07 – LINER , NOT ILLUSTRATED

KTRF18KVTO00 07 – LINER , NOT ILLUSTRATED

Written by

in

KTRF18KVTO00 07 – LINER , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Torx Key
	350942 Whirlpool Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	WPL LIT1117301
	WPL LIT1117826
	WPL LIT1117832
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	WPL LIT4315850

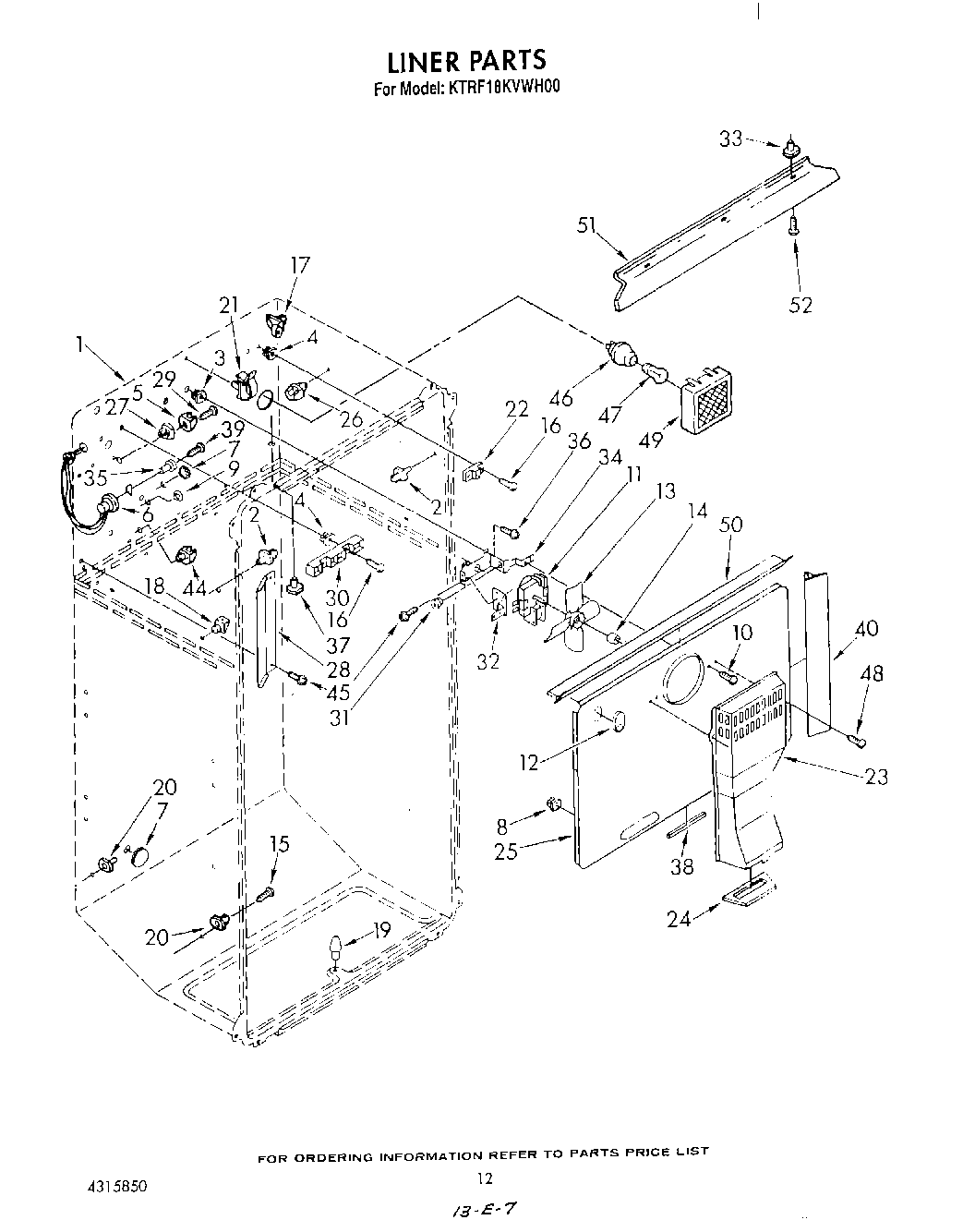

1	Liner (Not A Serviceable Part)
2	Stud, Shelf (2)
3	Grommet (2)
4	Grommet (4)
5	Shelf Stud, Saddle L.S.
6	Liner Wiring (Ice Maker)
7	Hole, Plug
8	Grommet
9	Hole, Plug
11	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
12	Hole Plug, Evaporator
13	Blade, Fan
14	Ring, Compression
15	Screw, 8-15 x 1
16	WP488163 Whirlpool Refrigerator Screw
17	Stud, Support (2)
18	Retainer, Stud (4)
19	Grommet, Crisper Cover
20	Stud, Shelf
21	Fastener, Wire
22	Terminal Block (Single)
23	Air Duct
24	Sealing Gasket
25	Cover, Evaporator
26	Shelf Stud Saddle (R.S.)
27	Screw Grommet
28	Wiring Shield
29	WP488729 Whirlpool Refrigerator Door Screw
30	Terminal Block (Multiple)
31	Grommet (3)
32	Bracket, Double
33	Grommet
34	Bracket, Single
35	Receptacle Cap
36	W11693756 Whirlpool Screw Assembly
37	Grommet
38	Gasket, Sealing
39	WP489069 Whirlpool Compactor Screw
40	Gasket, Evaporator
44	Shelf Stud
45	W11624204 Whirlpool Screw
46	Socket
47	W11679940 Whirlpool Refrigerator Light Bulb Assembly
49	Light Lens
50	Gasket, Top
51	Baffle, Liner Top
52	72113 Whirlpool Touch-Up Paint
52	Enamal, Toast (1 Qt. Uncut)
52	Almond (Uncut)
52	72017 Whirlpool Appliance Touch-Up Paint White
52	799344 Whirlpool Refrigerator Paint
52	CEMENT, ALUMILASTIC (1 1/4 OZ.)
52	WP72107 Whirlpool Touchup
52	Platinum (Uncut)
52	WPL 72112
52	WPL 876029
52	WPL 799833
52	TAPE, VINYL (3/4 X 108“)
52	WP542638 Whirlpool Refrigerator Grease
52	WP505587 Whirlpool Refrigerator Sealer
52	WP503695 Whirlpool Refrigerator Sealer
52	WPL 799832
52	876370 Whirlpool Refrigerator Insulation
52	833938 Whirlpool Refrigerator Terminal
52	606755 Whirlpool Refrigerator Bag
52	511873 Whirlpool Refrigerator Paint
52	212643 Whirlpool Refrigerator Permagum Sealer
52	72032 Whirlpool Touch Up Paint Black
