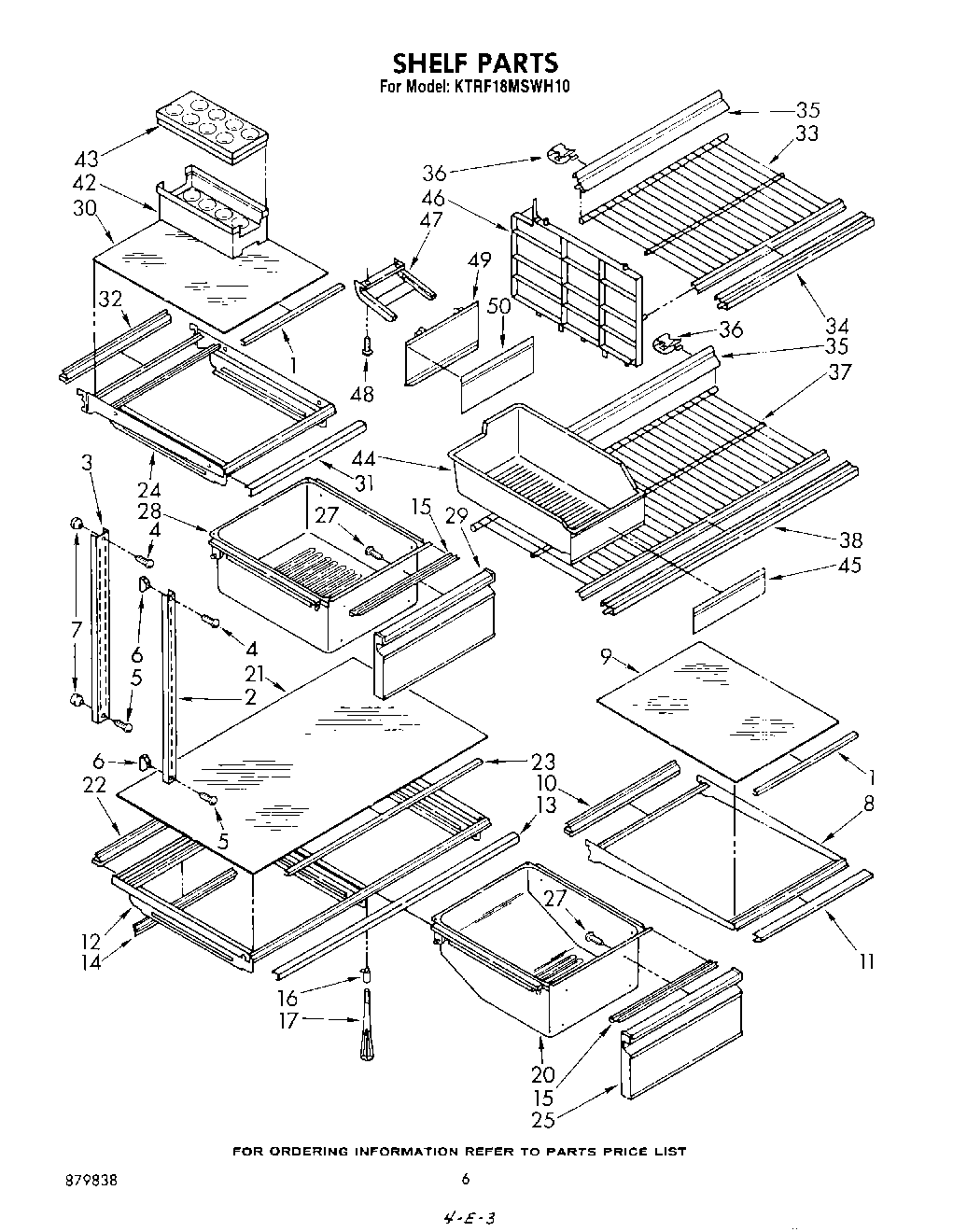

KTRF18MSAL10 04 – SHELF

Products

Position	Product
1	Shelf Gasket, Glass
2	Ladder, Shelf (Side) (2)
3	Ladder (Center)
4	Screw, (Repair) 10 x 1 1/4
4	Screw, 8 x 1-1/4 (3)
5	Screw, 8-32 x 1-1/4
5	Screw (Repair)
6	520965 Whirlpool Refrigerator Support
7	Screw Support, Center Ladder (2)
8	Shelf, Cantilever
9	Glass, Shelf
10	Glass, Reflector
11	Trim, Shelf
12	Crisper Cover, Frame
13	Trim Frame
14	Gasket, Rear (2)
15	Pan Gasket, Front
16	Support, Cover
17	Post, Cover
20	Pan (4)
21	Glass, Crisper Cover
22	Reflector, Glass Shelf
23	Shelf Gasket, Glass
24	Meat Pan, Shelf
25	Front Cover, Crisper
27	WP488729 Whirlpool Refrigerator Door Screw
27	Screw (Repair)
28	Meat Pan
29	Front Cover, Meat
30	Glass, Meat Pan Shelf
31	Trim Frame
32	Reflector, Glass Shelf
33	Shelf, Freezer
34	Trim, Shelf
35	Reflector, Wire Shelf
36	Clip, Reflector
37	Freezer, Shelf Lower
38	Trim, Shelf Front
42	Egg Container, Bottom
43	Egg Container, Top
44	Ice Cube, Pan
45	Overlay, Ice Cube Pan
46	Ice Compartment Side
47	Slide, Ice Compartment
48	WP489069 Whirlpool Compactor Screw
49	Front, Ice Compartment
50	Overlay, Ice Compartment
