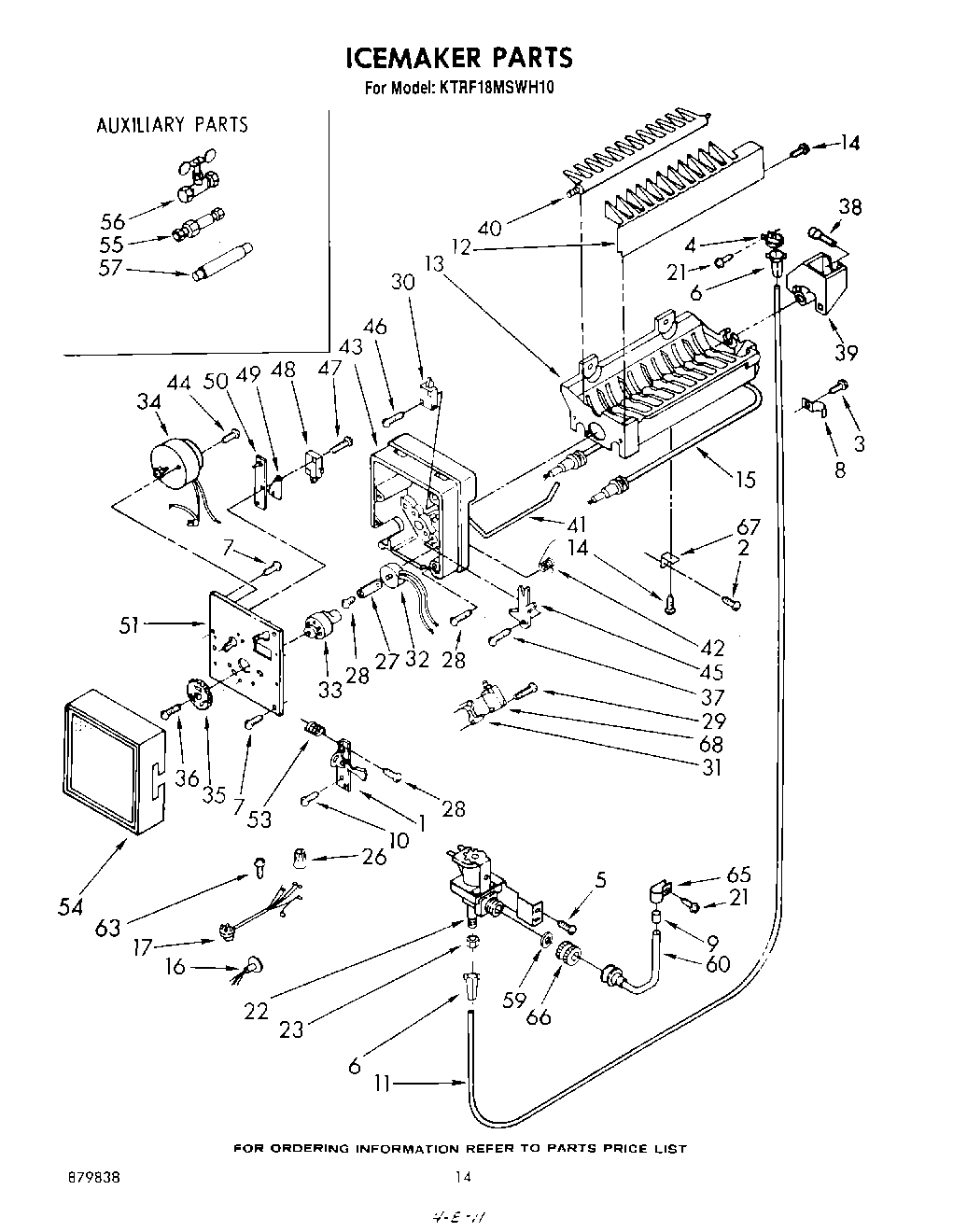

KTRF18MSTO10 08 – ICEMAKER , NOT ILLUSTRATED AND OPTI

KTRF18MSTO10 08 – ICEMAKER , NOT ILLUSTRATED AND OPTI

KTRF18MSTO10 08 – ICEMAKER , NOT ILLUSTRATED AND OPTI

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
WPL LIT879838
Paint, Spray (13 Oz.) (Platinum)
Toast
350956 Whirlpool Spray Assembly
Leveler (Thinner)
WPL LIT1107184
WPL LIT1107978
WPL LIT1107411
1Lever & Plate Assembly
2Screw, 10-12 x 3/8
3WP489069 Whirlpool Compactor Screw
4WP488878 Whirlpool Refrigerator Tube Clamp
5WPW10141625 Whirlpool Refrigerator Screw Assembly
64387491 Whirlpool Refrigerator Insert
7WP488787 Whirlpool Refrigerator Screw
8Clamp, Water Line (2)
9WP2158826 Whirlpool Refrigerator Dampener
10Screw (Use W/Motor 627106)
11W10823511 Whirlpool Refrigerator Water Tube
12Stripper, Ice
13Mold & Heater Assembly (Includes Illus. 15)
14WP489128 Whirlpool Refrigerator Screw
15Heater, Mold
16Wiring, Ice Maker
17Wire Harness
21WP965173 Whirlpool Dishwasher Screw
224318047 Whirlpool Water Valve
23WP627018 Whirlpool Refrigerator Nut
26Wire Connector
27Clamp, Thermostat
28Screw, 8-32 x 1
30Switch, S.P.D.T. (2)
31Spacer, Switch (2)
32Thermostat
33Cam
34Motor
35Gear
36Screw
37Screw, Shoulder
38Tube, Water Inlet
39Beraing & Inlet
40Ejector
41Arm, Shut-Off
42Spring, Shut-Off Arm
43Support
44Screw, 4-40 x 1
45Lever, Arm
46Screw, 4-24 x 3/4
47Screw
48Switch, S.P.S.T.
49Insulator
50Plate, Valve Switch
51Plate, Mounting
5272017 Whirlpool Appliance Touch-Up Paint White
5272113 Whirlpool Touch-Up Paint
52799344 Whirlpool Refrigerator Paint
52Platinum (Uncut)
52Enamal, Toast (1 Qt. Uncut)
52WP72107 Whirlpool Touchup
52Almond (Uncut)
52WPL 72112
52TAPE, VINYL (3/4 X 108“)
5272032 Whirlpool Touch Up Paint Black
52606755 Whirlpool Refrigerator Bag
52833938 Whirlpool Refrigerator Terminal
52WP503695 Whirlpool Refrigerator Sealer
52WP505587 Whirlpool Refrigerator Sealer
52WPL 876029
52WPL 799833
52WPL 799832
52CEMENT, ALUMILASTIC (1 1/4 OZ.)
52WP542638 Whirlpool Refrigerator Grease
52Silicone (Spray)
52511873 Whirlpool Refrigerator Paint
52876370 Whirlpool Refrigerator Insulation
52212643 Whirlpool Refrigerator Permagum Sealer
53Spring
54Cover
55Union, 1/4“ x 3/16“
56Valve, Shut-Off
57Filter Kit
59WP16123 Whirlpool Washer
60Tube, Inlet Valve
63Screw, Ground
65Clamp Tube
66Nut, Valve
67WP2256087 Whirlpool Refrigerator Bracket
68Switch, S.P.D.T.
