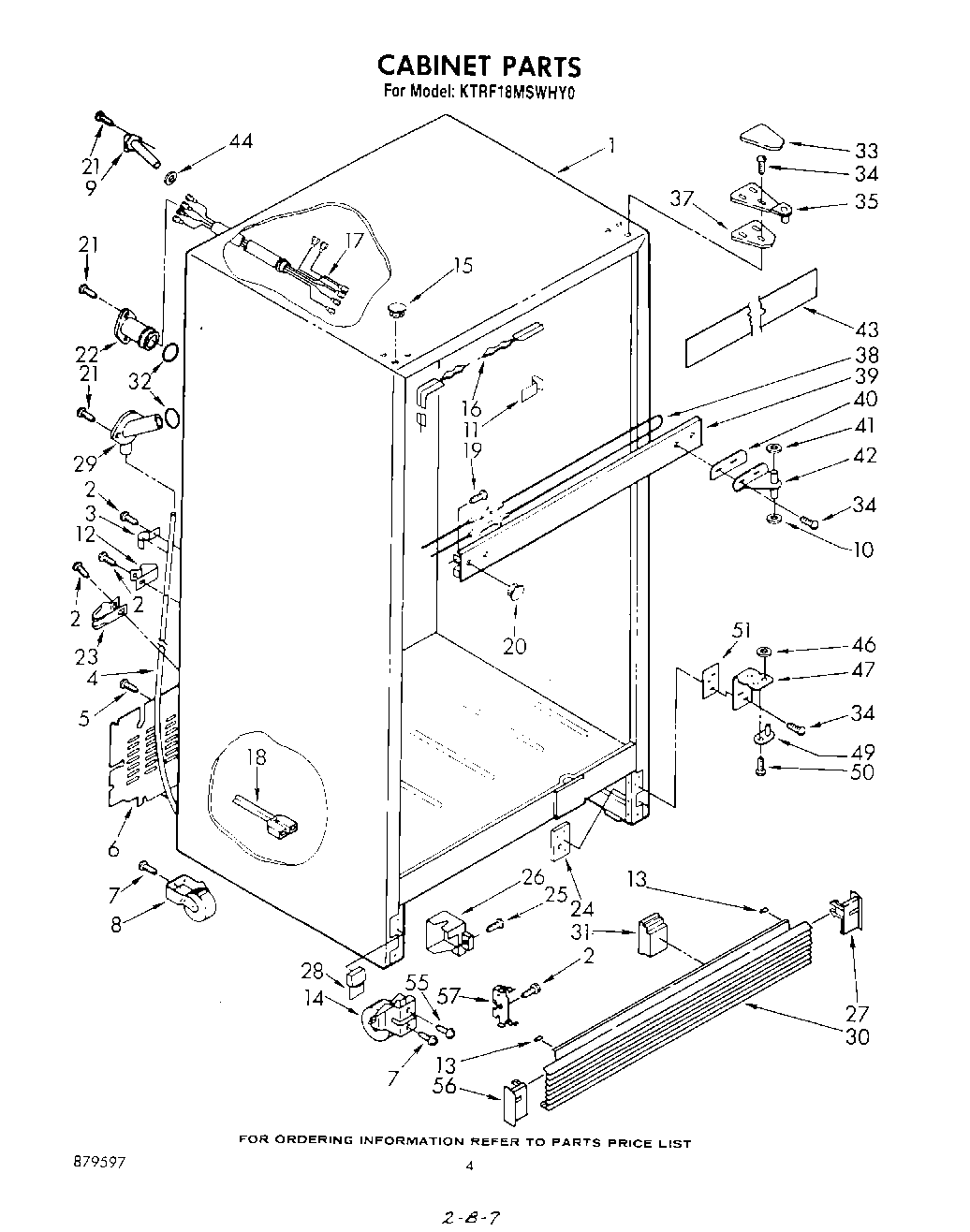

KTRF18MSWHY0 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	WPL 836077
4	8316810 Whirlpool Refrigerator Drain Tube
6	Cover
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	WP2196157 Whirlpool Fill Tube
10	WP487802 Whirlpool Refrigerator Washer
11	WPL 935663
12	Clamp, Cord (2)
13	Bumper, Grille (2)
14	Roller, Front
15	Hole Plug (3) (Toast)
15	Hole Plug (2) (Almond)
15	Hole Plug (3) (Platinum)
15	Hole Plug (2) (White)
16	Heater, Stile
17	Cabinet Wiring Assembly
18	WPL 548734
19	Screw, 8 x 3/8
19	Screw (Repair)
20	Hole, Plug (Almond)
20	Hole Plug (2) (Platinum)
20	Hole, Plug (White)
20	Plug, Hole (2) (Toast)
21	WP98165 Whirlpool Screw
22	Tunnel, Wiring
23	Clamp
24	Tap Plate
25	WP488729 Whirlpool Refrigerator Door Screw
26	WPL 549947
27	Grille, End Cap (R.S)
28	Filler, Grille
29	Drain Fitting
30	Grille
31	Insert, Air Baffle Grille
32	Gasket, Seal
33	Hinge Cover (Toast)
33	1119787 Whirlpool Refrigerator Hinge Cover
34	Screw (Repair)
34	WP999367 Whirlpool Refrigerator Screw
35	Hinge, Top
37	Shim, Hinge
38	Heater, Mullion
39	WPL 1100171
39	WPL 1100170
39	WPL 836066
39	WPL 989191
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	Hinge, Center
43	WPL 987524
44	WP1106508 Whirlpool Refrigerator Gasket
47	Hinge, Bottom
49	Hinge Pin, Bottom
50	Screw 10-32 x 5/16
51	Shim, Bottom Hinge
55	Screw, 5/16-24 x 1
56	Grille, End Cap (L.S.)
57	WPL 989068
