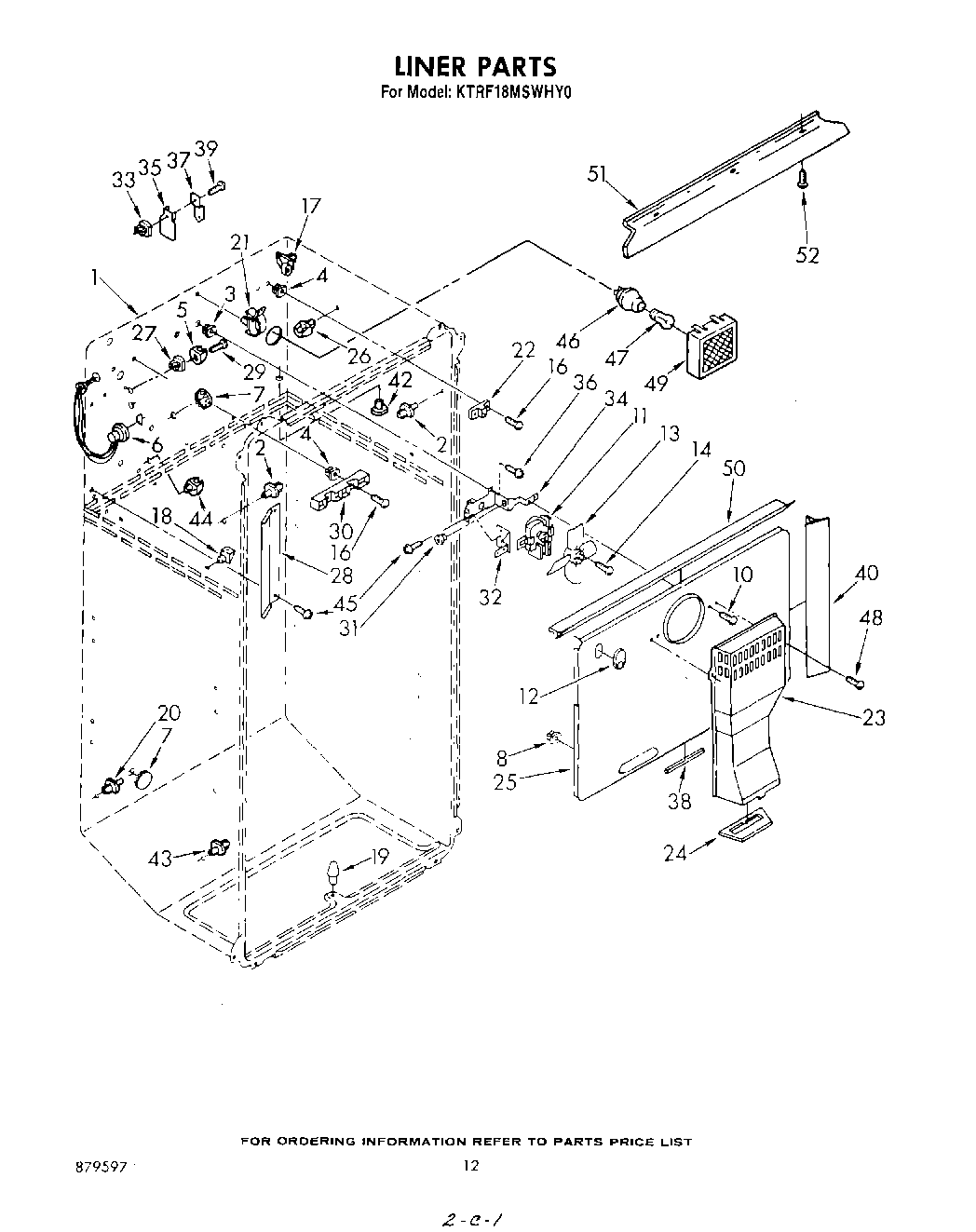

KTRF18MSWHY0 07 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Stud, Shelf (2)
3	Grommet (2)
4	Grommet (4)
5	Shelf Stud, Saddle L.S.
6	Liner Wiring (Ice Maker)
7	Hole, Plug
8	Grommet
11	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
12	Hole Plug
13	Blade, Fan
14	WP487887 Whirlpool Refrigerator Screw
16	WP488163 Whirlpool Refrigerator Screw
17	Stud, Support (2)
18	Retainer, Stud (4)
19	Grommet, Crisper Cover
20	Shelf, Stud
21	Fastener, Wire
22	Terminal Block (Single)
23	Air Duct
24	Sealing Gasket
25	Cover, Evaporator
26	Shelf Stud Saddle (R.S.)
27	Screw Grommet
28	Wiring Shield
29	WP488729 Whirlpool Refrigerator Door Screw
30	Terminal Block (Multiple)
31	Grommet (3)
32	Bracket, Double
33	Grommet
34	Bracket, Single
35	Screw Grommet
36	W11693756 Whirlpool Screw Assembly
37	Support Clip
38	Gasket, Sealing
39	SCREW
40	Gasket, Evaporator
42	Grommet
43	Stud, Shelf (3)
44	Shelf Stud
45	W11624204 Whirlpool Screw
46	Socket
47	RANGE ONLY 40W 120V APPL BULB
49	Light Lens
50	Gasket, Top
51	Baffle, Liner Top
52	WP489069 Whirlpool Compactor Screw
