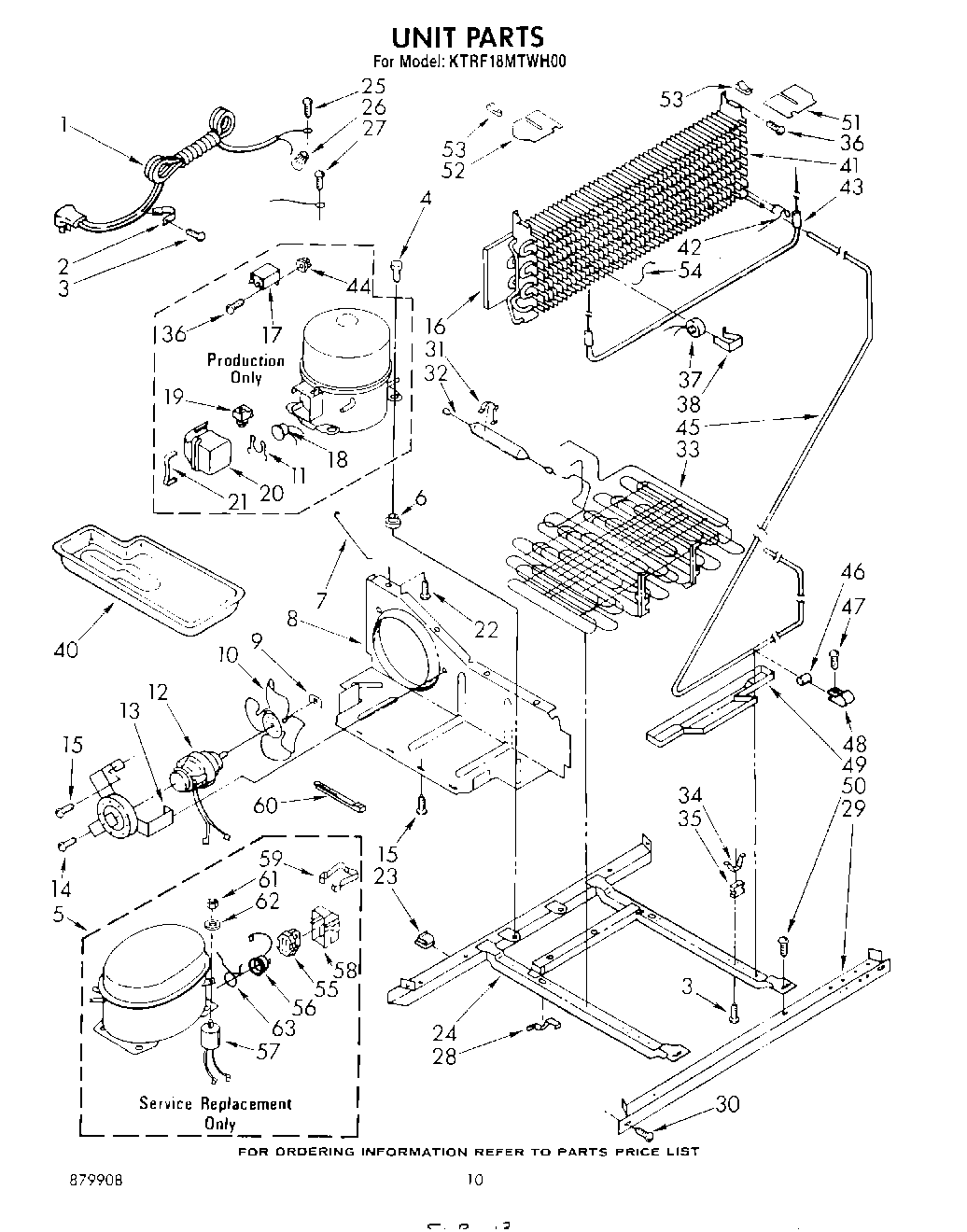

KTRF18MTPL00 06 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
5	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
6	876811 Whirlpool Grommet
7	Guard, Fan
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	Spring, Overload
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	681390 Whirlpool Refrigerator Screw
15	Screw, 8 x 3/8
16	Baffle, Evaporator
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Overload
19	Relay
20	Case, Relay
21	case spring
22	Screw, 8-32 x 1/2
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	303776 Whirlpool Dishwasher Screw
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler
34	Clamp (4)
35	Grommet (4)
36	W11693756 Whirlpool Screw Assembly
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
40	WPL 842041
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
44	Screw Grommet
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
51	Baffle, R.S.
52	Baffle, L.S.
53	Retainer, Baffle (2)
54	Support, Heater
55	WP2262181 Whirlpool Refrigerator Start Relay
56	Overload
57	Capacitor
58	Cover, Terminal
59	Strap
60	Strap
61	Nut
62	Washer
63	VALVE, ACCESS (1/2“)
63	WP978025 Whirlpool Refrigerator Valve
63	876764 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978026 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (5/8“)
63	Overload Spring
