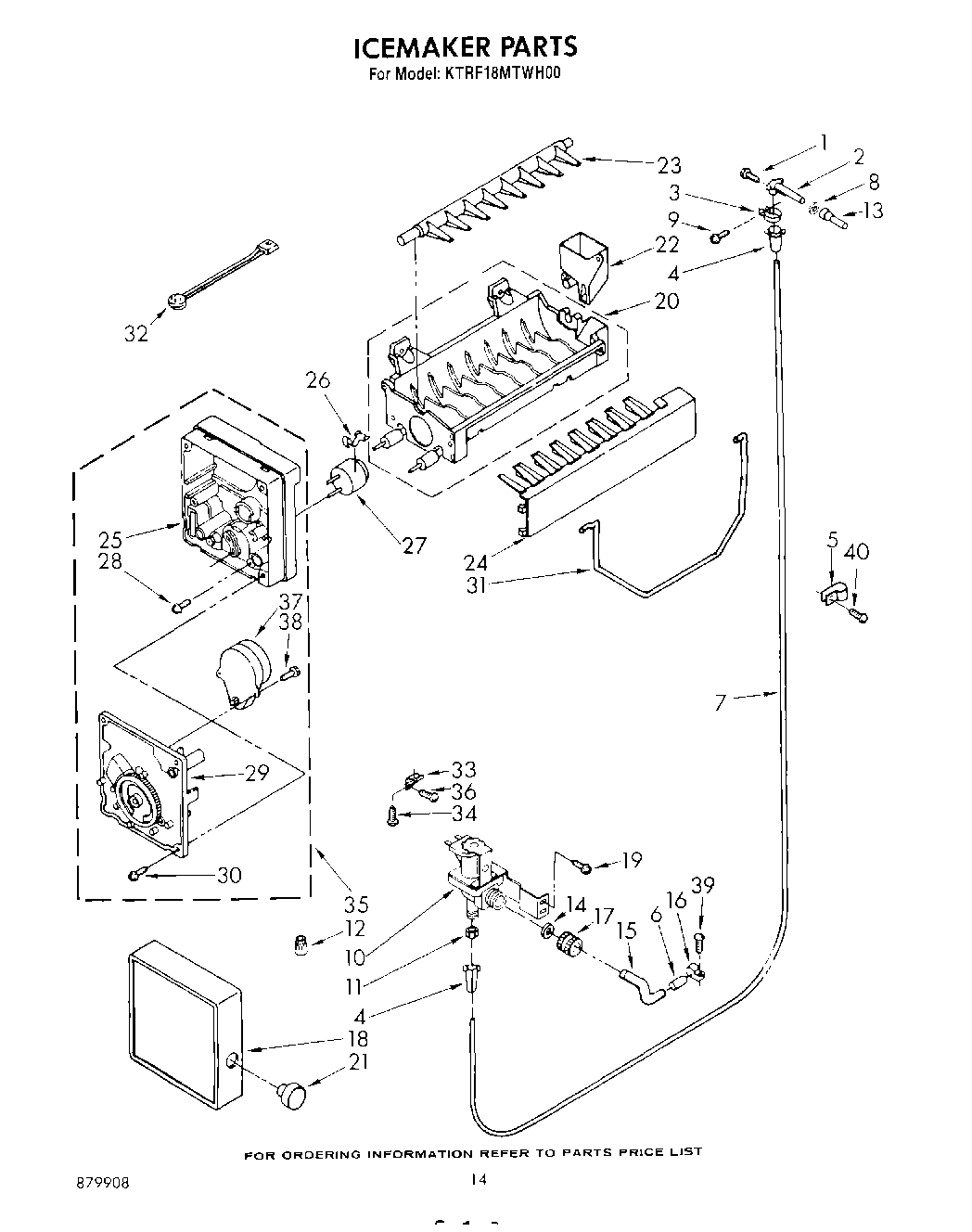

KTRF18MTWH00 08 – ICE MAKER , PARTS NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	350942 Whirlpool Spray Paint
	Torx Key
	285006 Whirlpool Spray
	WPL LIT879908
	WPL LIT628107
	WPL LIT1117301
	WPL LIT1107411
	WPL LIT1117587
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
1	WP98165 Whirlpool Screw
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	Clamp, Water Line (2)
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP965173 Whirlpool Dishwasher Screw
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	WP16123 Whirlpool Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	WPL 489163
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP628172 Whirlpool Refrigerator Wire Harness
33	WP2256087 Whirlpool Refrigerator Bracket
34	WP489128 Whirlpool Refrigerator Screw
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	SCREW
38	489136 Whirlpool Refrigerator Screw
39	W11624204 Whirlpool Screw
40	WPL 799833
40	WP489069 Whirlpool Compactor Screw
40	212643 Whirlpool Refrigerator Permagum Sealer
40	Enamal, Toast (1 Qt. Uncut)
40	Platinum (Uncut)
40	511873 Whirlpool Refrigerator Paint
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	606755 Whirlpool Refrigerator Bag
40	833938 Whirlpool Refrigerator Terminal
40	876370 Whirlpool Refrigerator Insulation
40	WP503695 Whirlpool Refrigerator Sealer
40	72113 Whirlpool Touch-Up Paint
40	WPL 799832
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	TAPE, VINYL (3/4 X 108“)
40	WP542638 Whirlpool Refrigerator Grease
40	WP505587 Whirlpool Refrigerator Sealer
40	WPL 72112
40	72032 Whirlpool Touch Up Paint Black
40	WPL 876029
40	Silicone (Spray)
40	Almond (Uncut)
