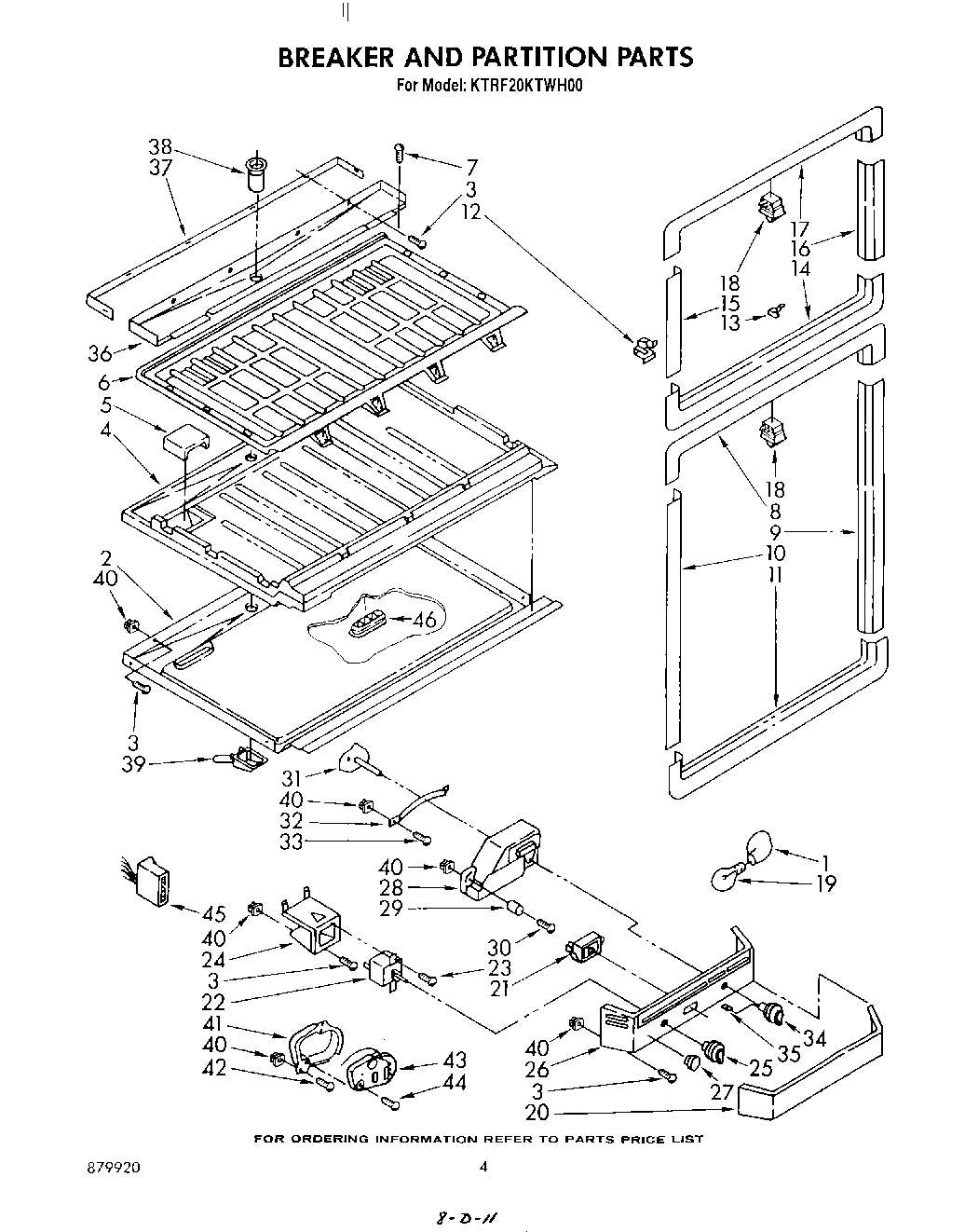

KTRF20KTPL00 03 – BREAKER AND PARTITION

Products

Position	Product
1	4387478 Whirlpool Refrigerator Light Socket
2	Separator (Bottom)
3	W11624204 Whirlpool Screw
4	Insulation, Separator
5	Gasket, Air Return
6	Separator (Top)
7	WP488729 Whirlpool Refrigerator Door Screw
8	Breaker, Mullion Bottom
9	Breaker, R.S.
10	Breaker, L.S.
11	Breaker, Bottom
12	Breaker, Clip
13	Breaker, Trim Clip
14	Breaker, Mullion (Top)
15	Breaker L.S.
16	Breaker R.S.
17	Breaker Trim, Top
18	W11384469 Whirlpool Door Switch
19	W11679940 Whirlpool Refrigerator Light Bulb Assembly
20	Light Lens
21	WP938213 Whirlpool Refrigerator Power Switch
22	WP819470 Whirlpool Refrigerator Thermostat
23	WP965173 Whirlpool Dishwasher Screw
24	Bracket, Thermostat
25	Knob, Temperature Control
26	Panel, Control
27	Hole Plug (2)
28	Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	Damper, Air
32	Retrainer, Air Dampener
33	Screw, 8 x 3/8
34	Control Knob
35	Knob, Retainer
36	Pan, Evaporator Drain
37	Gasket, Drain Pan
38	Fitting, Drain Pan
39	Cup, Drain
40	Grommet
41	Timer, Container
42	WP489069 Whirlpool Compactor Screw
43	Timer, Defrost
44	Screw, 8 x 3/8 (2)
45	Liner Wiring (Defrost Timer)
46	Air Return, Grommet
