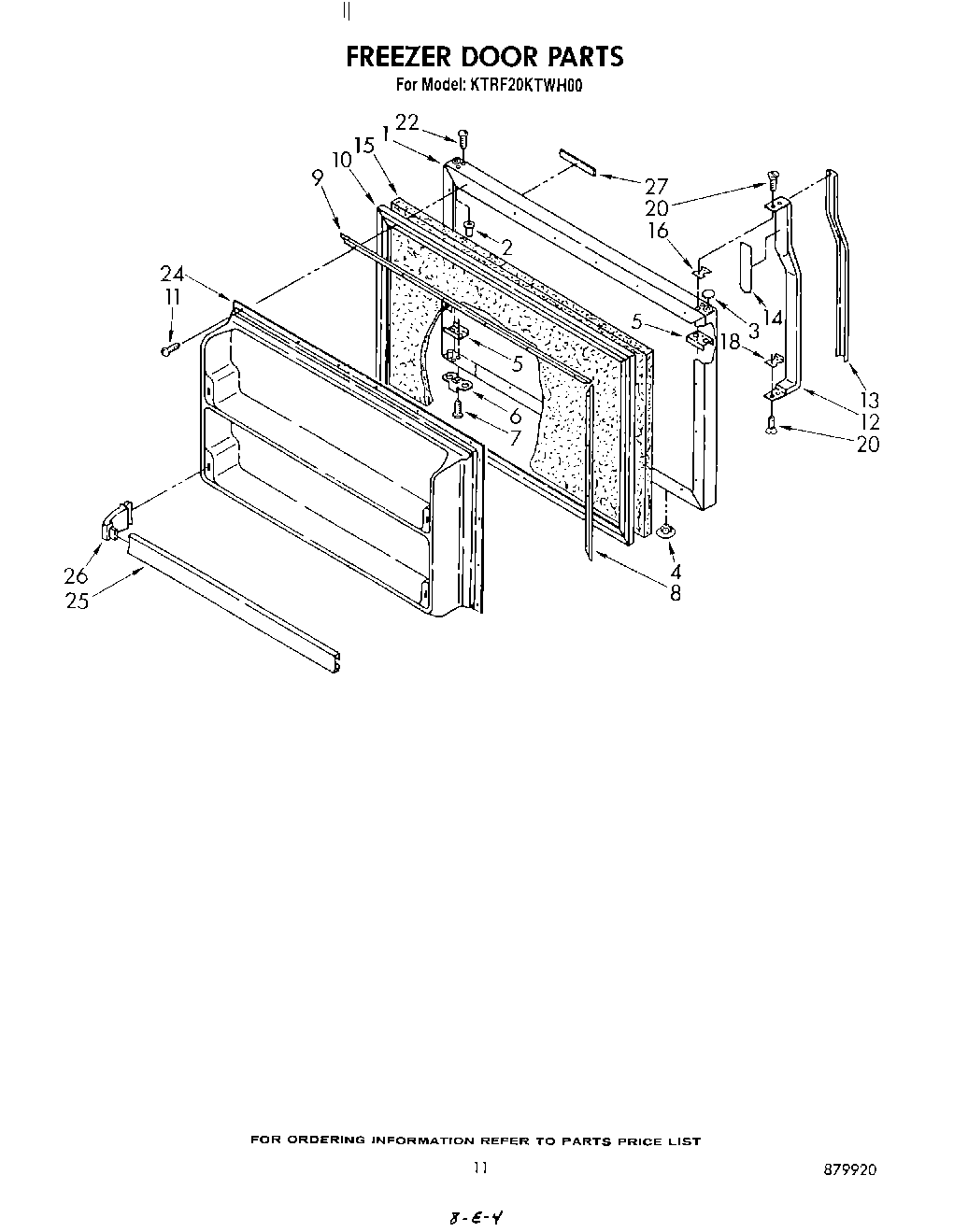

KTRF20KTPL00 07 – FREEZER DOORadmin2025-04-26T13:04:52+00:00KTRF20KTPL00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (White) |
| 1 | Freezer Door (Almond) |
| 1 | Door, Freezer (Also Order Item 36) (Toast) |
| 1 | Door, Freezer (Also Order Item 36) (Platinum) |
| 2 | Cap, Hinge Sleeve (2) |
| 3 | Hole Plug (Platinum) |
| 3 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 3 | Hole Plug (Almond) |
| 3 | Hole Plug (Toast) |
| 4 | Hole Plug (2) (Toast) |
| 4 | Hole Plug (2) (Platinum) |
| 4 | Hole Plug (2) (Almond) |
| 4 | Hole Plug (2) |
| 5 | W10833053 Whirlpool Refrigerator Plate |
| 6 | Bracket, Door Stop |
| 7 | WP488921 Whirlpool Refrigerator Screw |
| 8 | Retainer Gasket Side |
| 9 | Retainer, Gasket Top |
| 10 | 2188460A Whirlpool Refrigerator Door Gasket |
| 11 | WP489069 Whirlpool Compactor Screw |
| 11 | SCREW |
| 12 | Handle |
| 13 | Insert, Handle |
| 14 | Spacer, Handle |
| 15 | WPL 876029 |
| 16 | Spacer, Handle |
| 18 | Spacer |
| 20 | WP488920 Whirlpool Refrigerator Screw |
| 20 | Screw (Repair) |
| 22 | Screw (Repair) |
| 24 | WPL 1103184 |
| 25 | Trim, Door Shelf (2) |
| 26 | WP849996 Whirlpool Refrigerator Endcap Trim |
| 27 | Insert, Nameplate |
