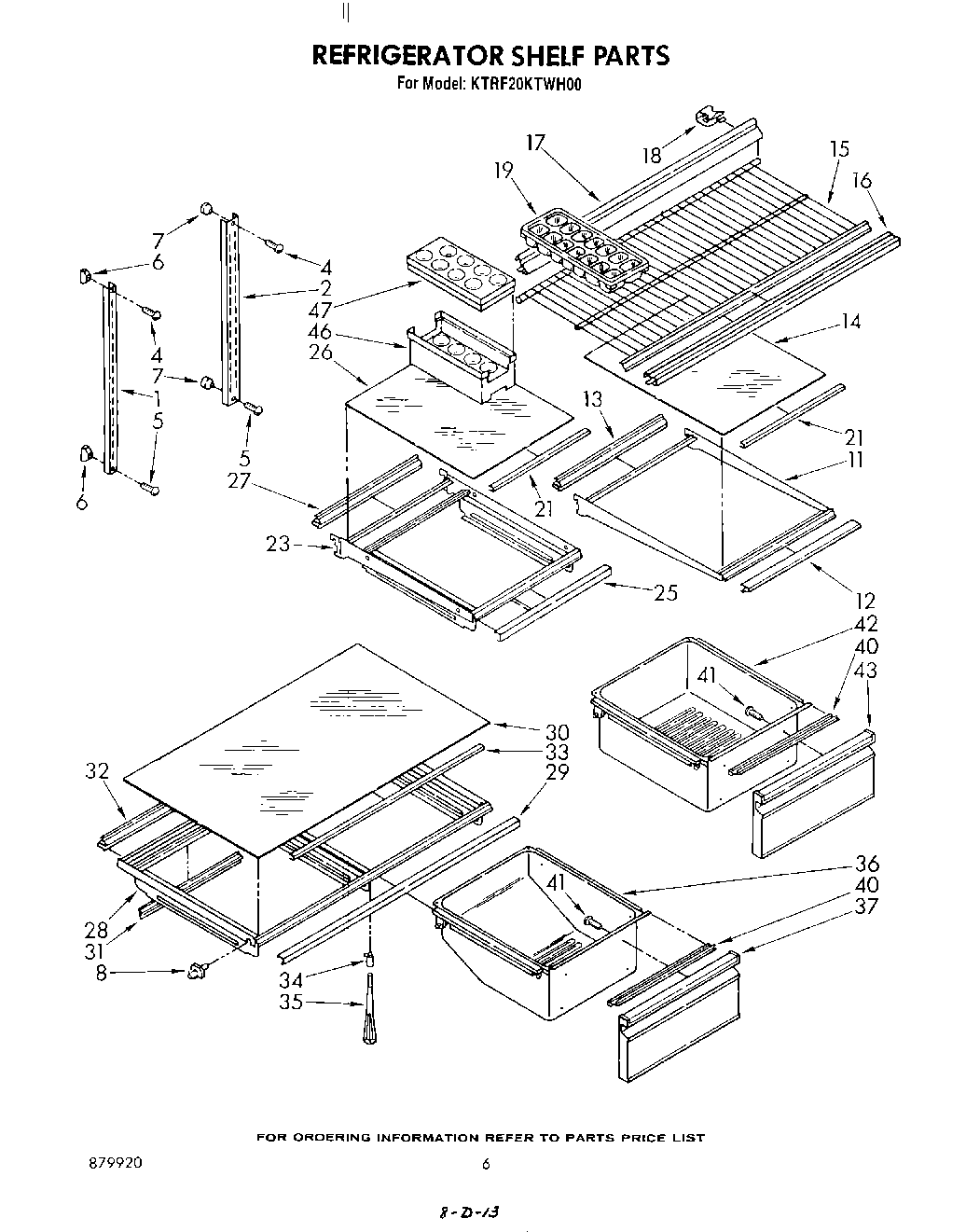

KTRF20KTTO00 04 – REFRIGERATOR SHELF

Products

Position	Product
1	Ladder, Shelf (Side) (2)
2	Ladder (Center)
4	Screw, 8 x 1-1/4 (3)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4
6	520965 Whirlpool Refrigerator Support
7	Screw Support, Center Ladder (2)
8	Shelf, Stud (2)
11	Shelf, Cantilever (3)
12	Trim, Shelf Front
13	Reflector, Cantilever Shelf
14	Glass, Cantilever Shelf (3)
15	Shelf, F.C.
16	Trim, Shelf
17	Reflector, Shelf
18	Clip, Reflector
19	WP841180A Whirlpool Microwave Glass Turntable Tray
21	Shelf Gasket, Glass
23	Meat Pan, Shelf
25	Trim, Frame
26	Glass, Meat Pan
27	Reflector, Glass Shelf
28	Crisper Cover, Frame
29	Trim, Frame
30	Glass, Crisper Cover
31	Crisper Gasket, Rear
32	Reflector, Glass Shelf
33	Shelf Gasket, Glass
34	Support, Cover
35	Post, Cover
36	Crisper Pan (2)
37	Front Cover, Crisper (2)
40	Crisper Gasket, Front
41	WP488729 Whirlpool Refrigerator Door Screw
42	Pan, Meat
43	Front Cover, Meat Pan
46	Egg Container, Bottom
47	Egg Container, Top
