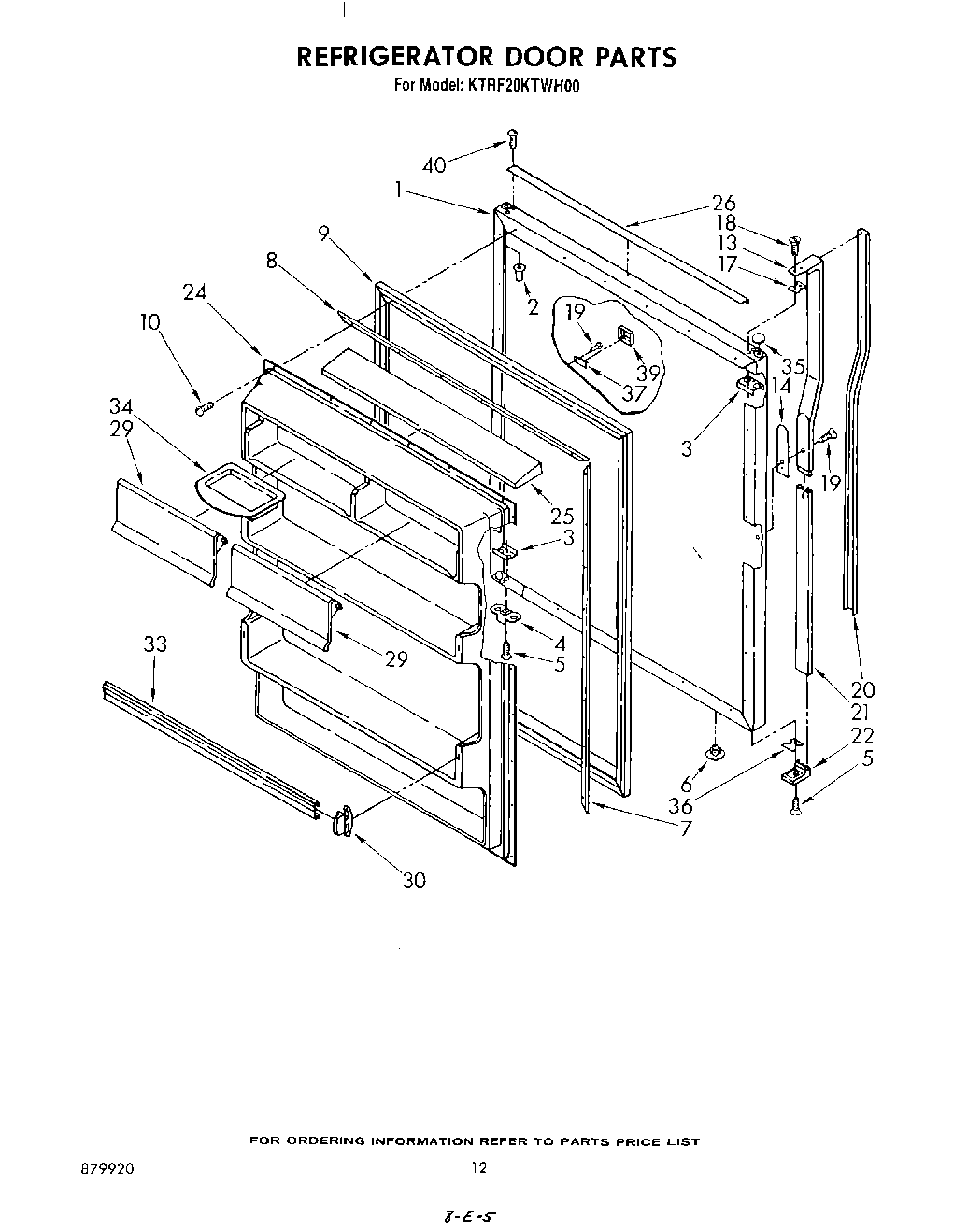

KTRF20KTTO00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

Position	Product
1	Refrigerator Door (Almond)
1	Refrigerator Door (White)
1	Door, Refrigerator (Also Order Item 36) (Platinum)
1	Door, Refrigerator (Also Order Item 36) (Toast)
2	Cap, Hinge Sleeve (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Hole Plug (2) (Toast)
6	Hole Plug (2) (Platinum)
6	Hole Plug (2) (Almond)
6	Hole Plug (2)
7	Retainer, Gasket Side
8	Retainer, Gasket Top
9	2188450A Whirlpool Refrigerator Door Gasket
10	SCREW
10	WP489069 Whirlpool Compactor Screw
13	Handle
14	Spacer, Handle
17	Spacer
18	Screw (Repair)
18	WP488920 Whirlpool Refrigerator Screw
20	Insert, Handle
21	Retainer, Insert
22	Handle End
24	Interior Panel
25	Support, Door Dike
26	Trim, Door
29	Door, Utility
30	WP839904 Whirlpool Refrigerator Endcap Trim
33	Trim, Shelf (2)
35	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
35	Hole Plug (Almond)
35	Hole Plug (Toast)
35	Hole Plug (Platinum)
36	Shim, End Cap
37	Clip, Medallion
39	Handle Plug (Platinum)
39	Handle Plug (Toast)
39	Handle Plug (White)
39	Handle Plug (Almond)
40	Screw (Repair)
