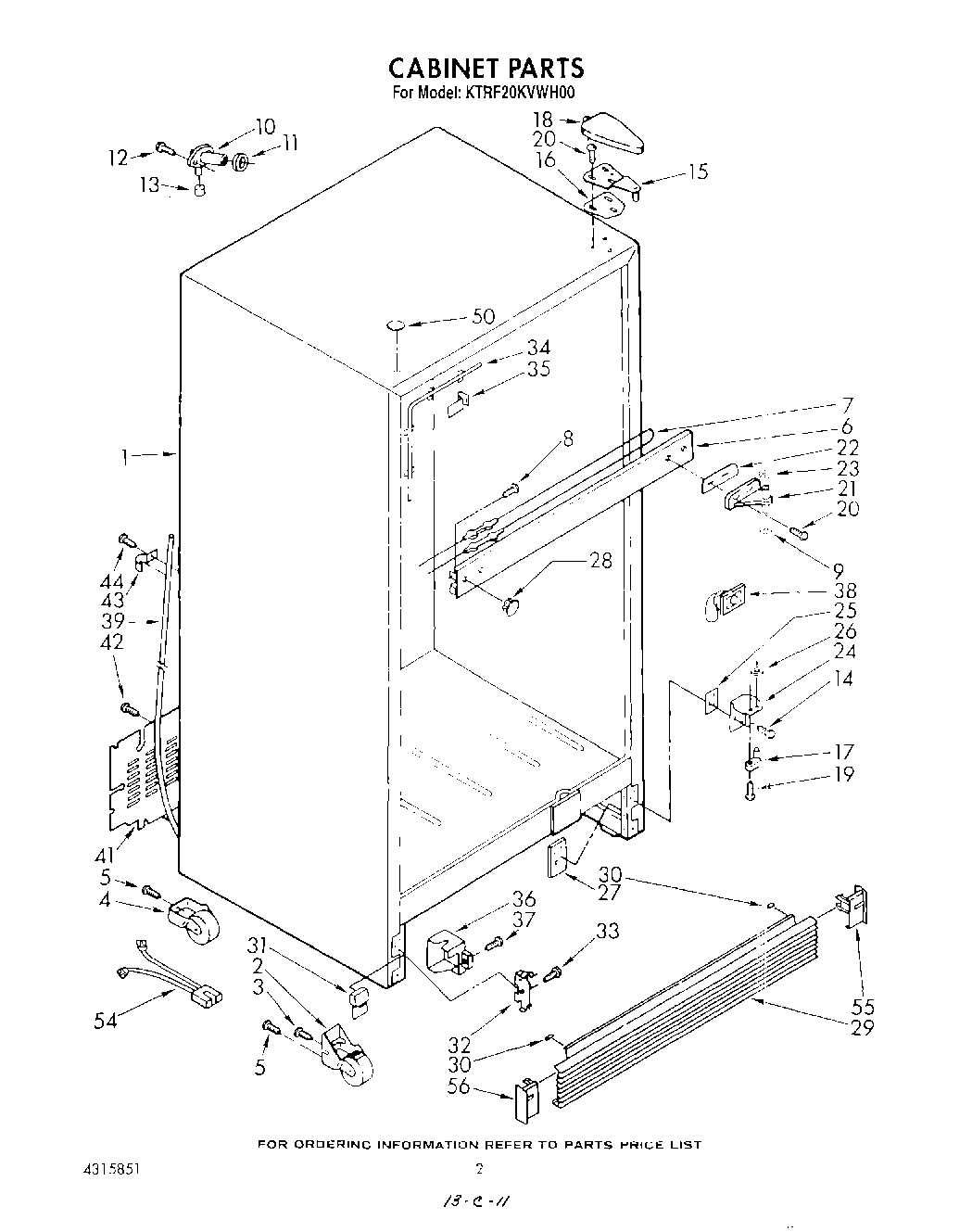

KTRF20KVPL00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Center Rail (Almond)
6	WPL 1100304
6	WPL 1100303
6	Center Rail (White)
7	Heater, Mullion
8	Screw, 8 x 3/8
8	Screw (Repair)
9	WP487802 Whirlpool Refrigerator Washer
10	WP2196157 Whirlpool Fill Tube
11	WP1106508 Whirlpool Refrigerator Gasket
12	WP98165 Whirlpool Screw
13	WP487996 Whirlpool Refrigerator Cap Tube
15	Hinge, Top
16	Shim, Hinge
17	Hinge Pin, Bottom
18	Hinge Cover (Toast)
18	1119787 Whirlpool Refrigerator Hinge Cover
19	Screw
20	Screw (Repair)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP488296 Whirlpool Washer Refrigerator
24	Hinge Butt, Bottom
25	Shim, Bottom Hinge
26	WP489200 Whirlpool Refrigerator Washer
27	Tap Plate
28	Hole, Plug (White)
28	Plug, Hole (2) (Toast)
28	Hole, Plug (Almond)
28	Hole Plug (2) (Platinum)
29	Grille
30	Bumper, Grille (2)
31	Filler, Grille
32	WPL 989068
33	W11624204 Whirlpool Screw
34	WPL 936075
35	WPL 935663
36	WPL 549947
37	WP488729 Whirlpool Refrigerator Door Screw
38	WPL 841687
39	8316810 Whirlpool Refrigerator Drain Tube
41	WPL 850459
43	WPL 836077
44	WP489069 Whirlpool Compactor Screw
50	Hole Plug (3) (Toast)
50	Hole Plug (3) (Platinum)
50	Hole Plug (2) (Almond)
50	Hole Plug (2) (White)
54	WPL 548734
55	Grille, End Cap (R.S)
56	Grille, End Cap (L.S.)
